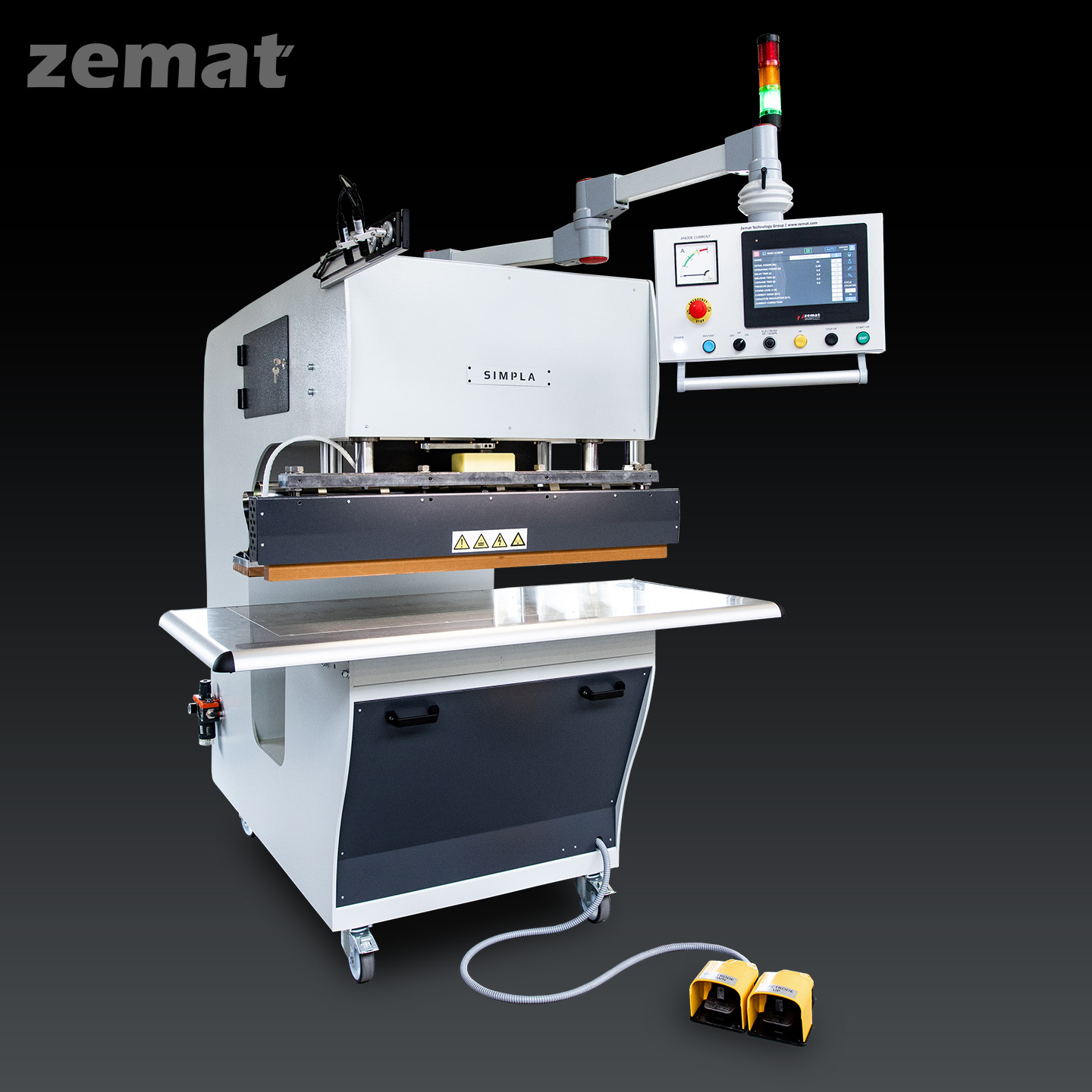

Universal high frequency welder SIMPLA allows to work with PVC, PU, TPU materials and can be equipped with special impulse electrode for welding non-HF weldable fabrics made of PE, PP and other non-bipolar materials. The machine can also be equipped with FlexEL™ ‘soft’ multilayer welding electrode or curved electrodes for sealing round window profiles made of clear PVC or any other shapes requiring precision welding. SIMPLA is equipped with special deep and wide trough behind the electrode for material storage and handling. The machine has optional smooth glide wheels for easy movement in-around welded fabric, or relocation to a desired place in the manufacturing hall. Full advanced programming functionality, including ATS™ autotuning and WCS™ systems, is achieved thanks to onboard PLC integrated with 10″ touch screen HMI on a swing arm for easy access to the welding area. SIMPLA machines have HF power output from 10 to 20 kW for heavier production loads and reinforced heavy duty fabrics, effectively providing between up to 800 cm2 of welded surface with one weld cycle.

Applications:

• Small and large format technical textiles PVC or PU coated
• Tensile structures, tents, shade systems, truck covers and side curtains
• Advertising signs and large format billboards
• Swimming pool liners and covers, flood dams and water tanks
• Airport hangars, portable storage structures
• Containment pools, oil booms, ground liners

Unique features:

• Magnetic, stainless steel, folding table
• Large space behind the electrode
• Electrodes up to 1200 mm
• Upper press plate for custom tooling
• Foot pedal operation
• Swing arm HMI
• Joystick to control the electrode
• Positioning laser guides

Features:

• Simple to setup and easy to operate
• Available standard models with 10 / 15 / 20 kW output power
• Sealing efficiency from 1 kW: up to 40 cm2 for standard PVC materials
• Universal usage for PVC, PU, TPU, reinforced technical textiles
• PE, PP, Polyester, Nylon weldability with optional Impulse electrode
• New generation Hi-Q Gen5 EcoHF stable and efficient HF generator
• Manual, semi-automatic and automatic operation
• ZTG ATS™ - autotuning HF power output system
• WCS™ Weld Check System - verifying quality of welds with preset parameters
• Easy material positioning with deep trough behind electrode
• Electrodes up to 1200 mm length
• Quick release system of the electrodes
• Built in LED electrode illumination
• Swing arm with 10" touch screen HMI panel (270° access to welding area)
• Built in VPN client and VNC server for remote diagnostics / software updates
• USB port for handling recipes

Website:

https://www.zemat.com/high-frequency-welders/simpla/

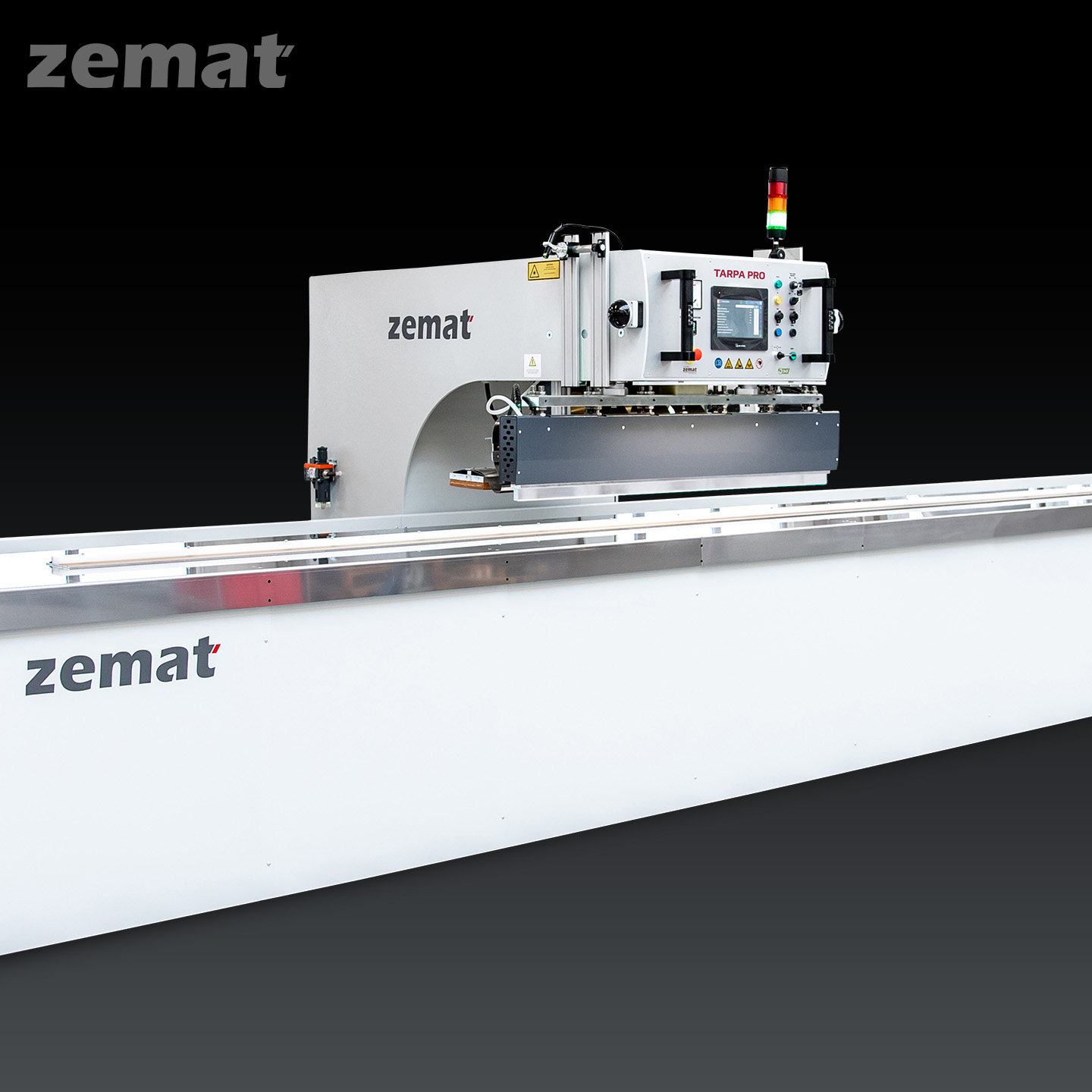

Automated traveling head high frequency welder for PVC film

TARPA PRO high frequency welder is designed specifically for production of large format tensile structures, membranes, tarpaulin, tents, oil booms, truck covers, swimming pool liners & covers, airline hangars, large billboards, fast doors, side curtains

Applications:

• Large format technical textiles with welds up to 50m long and 70mm wide
• Single weld cycles up to 1000cm2 welded area
• Tensile structures, tents, shade systems, truck covers and side curtains
• Swimming pool liners and covers, oil booms, flood dams and water tanks
• Airport hangars, portable storage structures, containment pools, ground liners
• Advertising signs and large format billboards

Features:

• High efficiency HF weld cycles with 10 / 15 / 20 / 25 kW output power
• Sealing efficiency from 1kW: 40cm2 for standard PVC materials
• Stable and efficient fifth generation HF generator - Hi-Q Gen 5 EcoHF
• Welding of technical textiles, PVC, PU, ​​TPU coated fabrics
• Possibility of welding PE and PP using a pulse electrode
• Precise inverter-controlled head movement mechanism
• Working table length: up to 100 m
• The surface of the work table is made of magnetic steel
• Possibility to install more than one head on the same tracks
• WCS ™ weld control system
• ATS ™ automatic power control system - output power control based on a special algorithm
• Possibility to work with linear and shaped electrodes
• 8-position multifunction joystick
• LED illumination of the working area
• Back gutter along the work table for large-size materials
• Lasers for material positioning
• 10 "intuitive HMI touch panel with PLC controller
• USB and WAN / LAN interfaces
• Built-in VPN client and VNC server, remote upgrade and diagnostics possible
• Possibility to change the height of the electrode without switching off the pressure sensor
• Possibility of moving the welding heads with one hand
• Programmable lap width (weld cover)
• QuickGRIP ™ quick electrode replacement system
• Electrode holder length: 1500 mm (Option: 1700 mm)
• Ecool ™ electrode cooling system

Automated, traveling head high frequency welderTARPA PRO HF Welder heat sealer is designed specifically for production of large format tensile structures, membranes, tarpaulin, tents, oil booms, truck covers, swimming pool liners & covers, airline hangars, large billboards, fast doors, side curtains, etc.

The machine can be equipped with special impulse electrode for welding non-HF weldable fabrics made of PE and PP, as well as FlexEL ‘soft’ multilayer welding electrode and curved HF electrodes for sealing round window profiles made of clear PVC and any other shapes requiring precision welding.

TARPA PRO model is equipped with special high precision ball bearing linear motion gear, controlled by frequency inverter and glide-on railing to achieve a perfect continuous straight line seam. Optional vacuum work table with the length up to 100 meters and laser guides allow handling of large format materials and precision weld positioning for fast production setup.

Full advanced programming functionality, including ATS™ auto-tuning, WCS™ weld control systems and expanded linear weld control (spot sealing, cycle left-right-left welds, parking and starting at any end, overlap welds) is achieved thanks to onboard PLC integrated with 10” touch screen HMI.

TARPA PRO machines have HF power output 6/10/15/20kW and optionally 25kW for large production loads and reinforced heavy-duty fabrics, effectively providing between 240-1000cm2 of welded surface with one weld cycle.

Website:

https://www.zemat.com/high-frequency-welders/tarpa-pro/

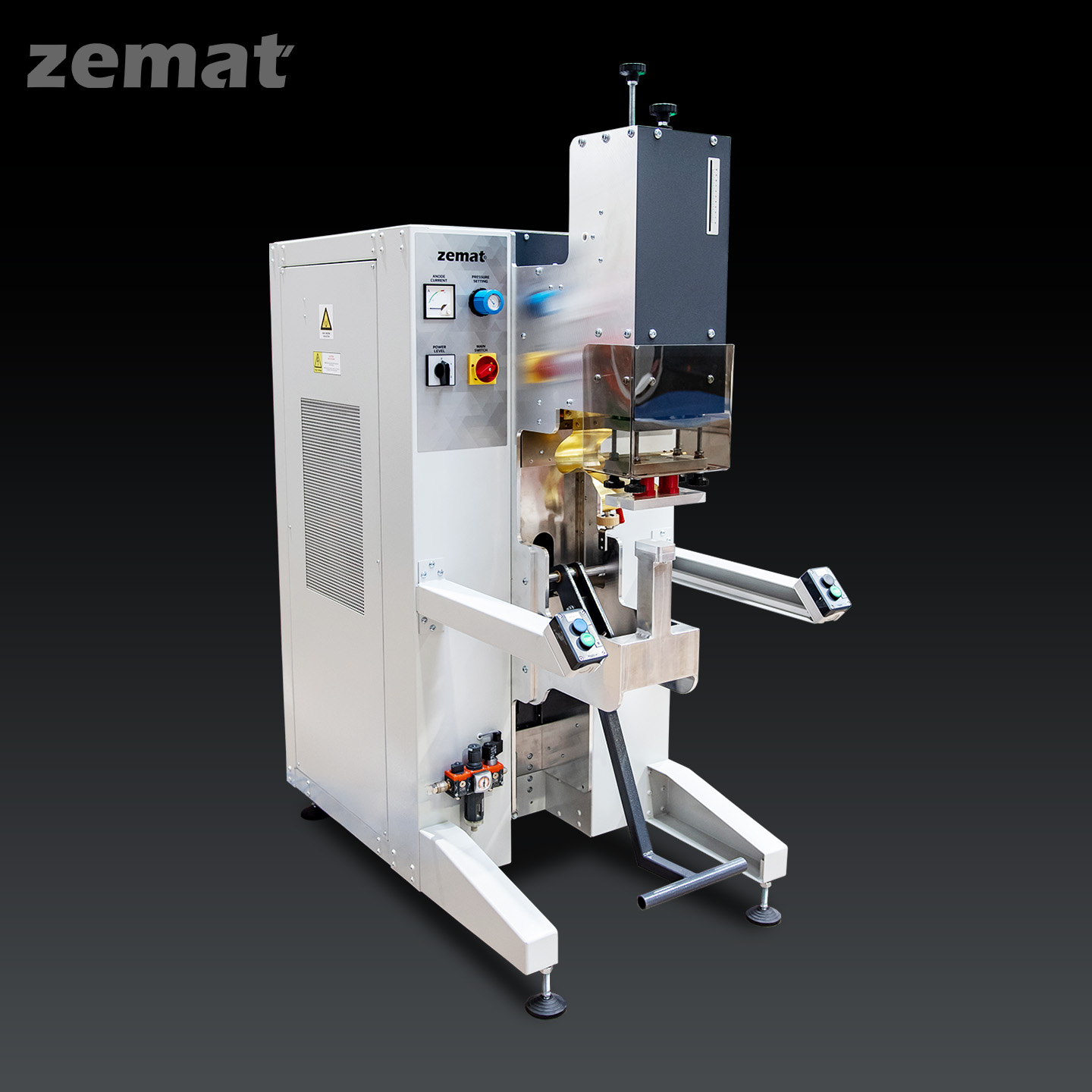

Multipurpose, universal high frequency welding machine with unique foot and pneumatic operation

Original DEPTA NX is the smallest machine in a large family of ZEMAT TG HF welders. This universal high frequency welder is robustly constructed and designed for accuracy and long life.

DEPTA NX is a universal, high frequency welding machine and can be used in various industries. For seaming type work, a small tool mount is recommended to give good visibility and access to the work area. For other applications a large mount can be supplied giving rigid support over a wide tool area. Facilities are also available to increase the throat space, where excess materials have to be positioned behind the tooling.

DEPTA NX is widely used in medical, automotive and clothing industries for welding small add-on parts, like tubing, air and fluid valves, hooks, grommets, plates, etc. DEPTA NXhave a high frequency power output from 0.5 to 4kW. The machine is a perfect tool for auxiliary production where precision, manual approach, durability and strength are the keys.

FootDown™ System

• Lowering of the weld die/electrode platen by operator is done with equal press force foot pedal.
• Welding cycle and weld/seal pressing is executed with pneumatic cylinder for even and controlled pressure.

StrokeDOWN™ System

• Precision manual crank-knob system for quick and easy setup of height adjustment of welding electrode from the work table. Very useful for welding very thin films where seam thickness must be uniform and precise.

Applications:

• Welding and sealing thermoplastic elastomers (TPE), PVC, TPU, PU, PLA films and fabrics
• Medical and healthcare equipment
• Automotive parts and interior design elements
• Precision flat die or 3D welds in various shapes and sizes
• Embossing of natural and faux leather
• Packaging and office accessories
• Reflective materials and signage
• Protective clothing

Features:

• Precision line, spot and curve welds
• Universal usage for PVC, PET, PU, TPO, PLA
• High weld precision and efficiency
• Small footprint and great work ergonomics
• Work table or gooseneck capability
• Standard work table 800 x 480 mm
• ZTG ATS™ - Autotuning System for precise HF power control ​
• ZTG AntiFlash™ - ultra fast Solid State Arc protection
• Three stage power with PLC control
• 7" colour touch screen programmable HMI with PLC
• Easy action through pedal / toggle to reduce operator fatigue
• Double button operation
• Fully compliant with CE, FCC

Website:

https://www.zemat.com/high-frequency-welders/depta/

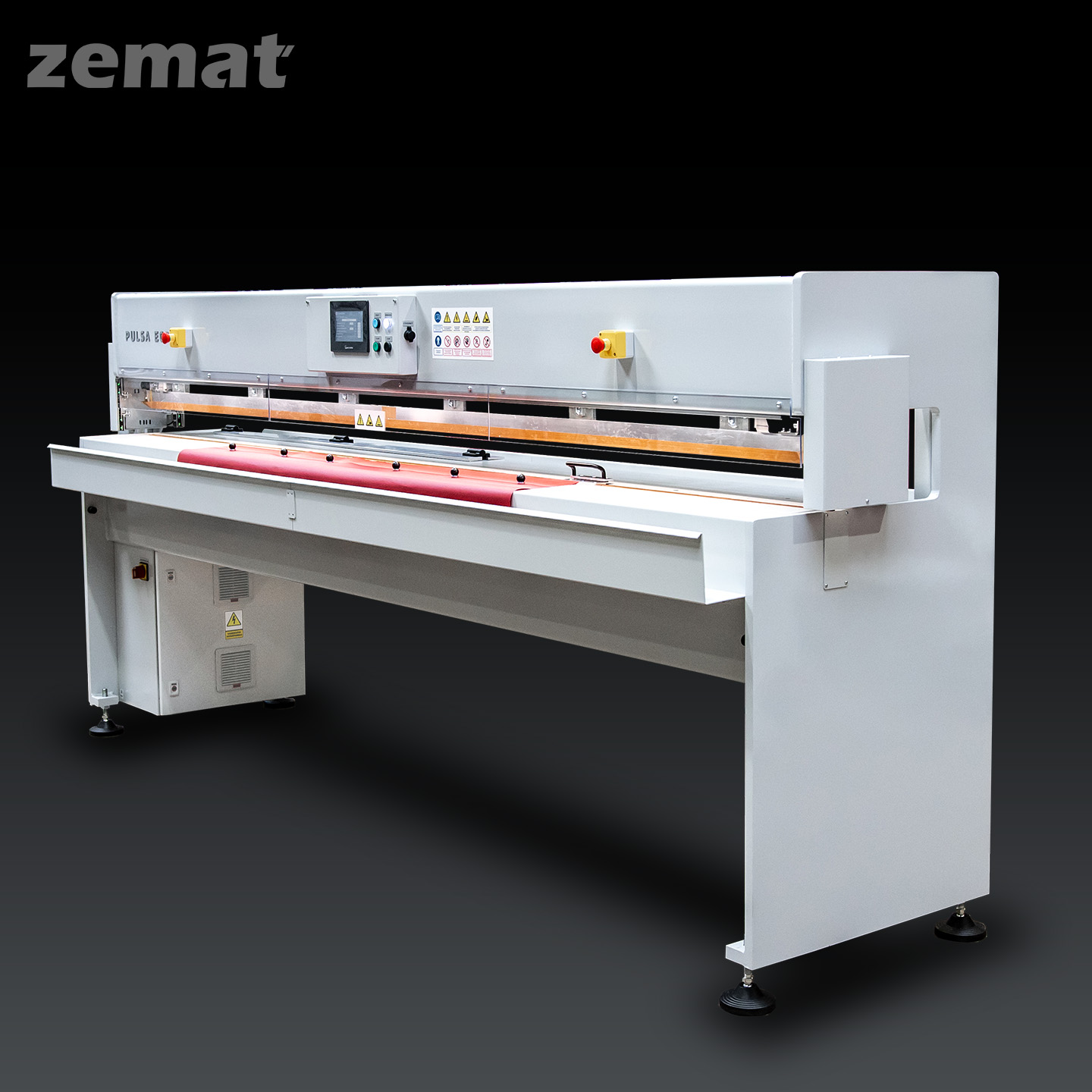

PULSA ECO is a semi-automatic advanced thermal impulse sealing machine for welding all kinds of technical textiles.

PULSA ECO is available in several standard versions differing in the width of the working area ex.: 320, 500, 600, 720 cm

PULSA ECO is a welding machine designed for technical textiles with a precision controlled welding parameters and manual functions for folding, overlapping, hem pockets, reinforcements, zippers and profiles.

The multistep sealing control process creates the best looking and strongest seams with ease and simplicity of use and full operator ergonomics.

• PVC laminated fabrics
• Vinyl coated fabrics, Vinyl Films
• Polyurethane (PU) coated fabrics, Polyurethane films
• Polypropylene-coated fabrics
• Polyethylene (PE)
• Thermoplastic
• Rubber fabrics (PE)
• Acrylics

• Excellent use with PVC, PE, PU, Acrylics – basically all coated thermoplastic fabrics, woven and non-woven
• Standard available weld lengths are 320 cm, 430 cm, 600 cm
• Welding seam widths: 8, 10, 15, 25 mm
• Manual folding, welding, overlap joining, Zippers, PVC profiles and reinforcements, stick / slat insertion with special tools – up to 320 cm long!
• Compact designed, opened design machine for better visibility of work space
• PLC controlled heating and cooling cycles for consistent welds
• Precision PLC temperature control (± 3 °C)
• Welding of pockets and hems with the use of simple folding tools
• Individual temperature control of upper and lower welding bars
• Universal use for welding seams in banners, sign, awnings, roller blinds, etc
• Optional lasers for ease of fabric positioning
• Advanced safety features with pressure switch and optical sensors
• Optional side tables

Website

https://www.zemat.com/impulse-welders/pulsa-eco/
