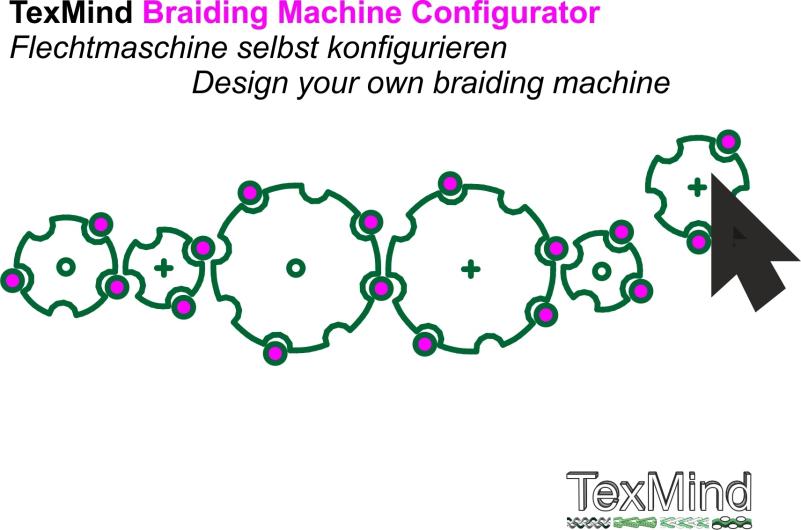

Texmind Braiding Machine Configurator

TexMind Warp Knitting Pattern Editor 3D is a tool for editing of patterns for warp knitting samples. It allows quick editing, 3D visualisation and storage of data of warp knitted structure and export for control of some types of machines.

Export of the pattern as JPG, EMF, PNG formats. The 3D geometry can be exported for FEM, CFD or 3D Printing in various formats.

Calculation of the idealised run in and the surface per square meter

TexMind Braider is an intuitive CAD-Software for colour and structural design of standard tubular and flat braids. The user defines the number of the yarns, the braiding type and the dimension of the braid. TexMind Braider generates a 3-D-View of the braided structure, where the user can change the colours of the yarns. The configuration of the braid producing machine with the carrier arrangement and the colour arrangement is saved in form of a report. The export of the 3-D-View can be made as a picture with high resolution or in formats for 3-D printing or FEM- und CFD-calculations. This speeds up the development of the braided structures, in the both the areas for products with special requirements –

• medical textiles, ropes, overbraids as braids with decorative function
• shoe laces and decorative cords.

Windows 7/8.1/10 (Mac after request)

Tubular and flat braids with any floating length and number of yarns in a group

Picture Export as JPG, STL and several FEM Formats

Specialized CAD software for automatic edition of cams, needles and yarn paths during the pattern development of samples for circular knitting machines.

Supports Double Jersey, SIngle Jersey and Interlock structures. The user can save the ready formated sheet for the sample with the cams, needles and yarn paths as vector graphic or PDF file.

Learn the fundamentals and advanced details about textile technology and sewing machines from the author of the worldwide leading modern books the topics:

Sewing machines

Braiding technology, braiding machines, patterning of braids

Warp knitting pattern

Narrow weaving technology and machines

Textile Testing

Textile Fiber Science
