TexMind Warp Knitting Pattern Editor 3D is a tool for editing of patterns for warp knitting samples. It allows quick editing, 3D visualisation and storage of data of warp knitted structure and export for control of some types of machines.

Export of the pattern as JPG, EMF, PNG formats. The 3D geometry can be exported for FEM, CFD or 3D Printing in various formats.

Calculation of the idealised run in and the surface per square meter

TexMind Braider is an intuitive CAD-Software for colour and structural design of standard tubular and flat braids. The user defines the number of the yarns, the braiding type and the dimension of the braid. TexMind Braider generates a 3-D-View of the braided structure, where the user can change the colours of the yarns. The configuration of the braid producing machine with the carrier arrangement and the colour arrangement is saved in form of a report. The export of the 3-D-View can be made as a picture with high resolution or in formats for 3-D printing or FEM- und CFD-calculations. This speeds up the development of the braided structures, in the both the areas for products with special requirements –

• medical textiles, ropes, overbraids as braids with decorative function
• shoe laces and decorative cords.

Windows 7/8.1/10 (Mac after request)

Tubular and flat braids with any floating length and number of yarns in a group

Picture Export as JPG, STL and several FEM Formats

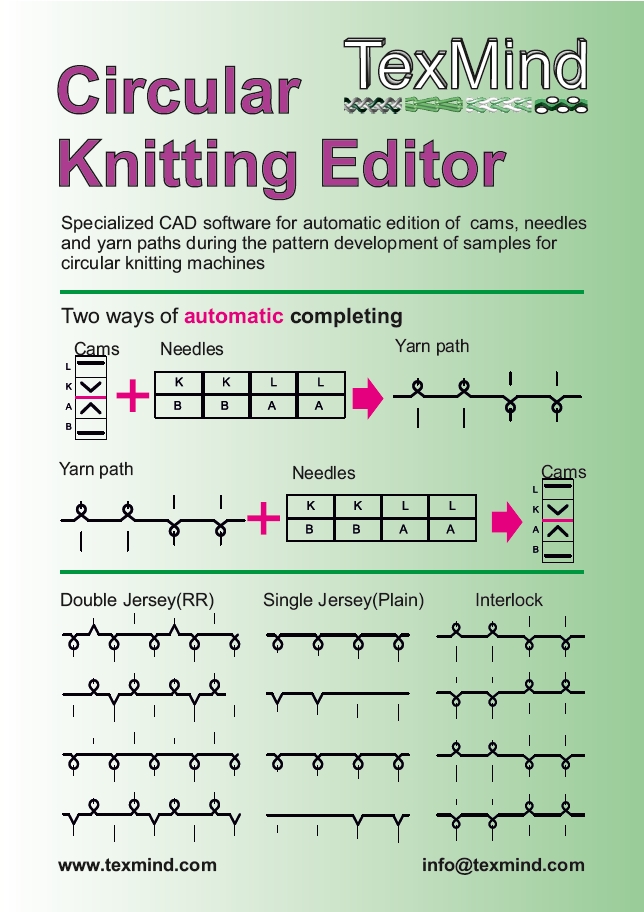

Specialized CAD software for automatic edition of cams, needles and yarn paths during the pattern development of samples for circular knitting machines.

Supports Double Jersey, SIngle Jersey and Interlock structures. The user can save the ready formated sheet for the sample with the cams, needles and yarn paths as vector graphic or PDF file.

Braiding Machine Configurator is a powerful tool for creative developers of new machines and structures. The user can configure his machine trough selection of the size and position of the horn gears with the mouse. After placing the carriers, the user can see the simulation of the carrier movement. In this way will be tested the proper carrier arrangement. The idealized 3-D-image of the braid, that is to construct, is as well visualised.

Windows 7/8.1/10 (Mac on request)

Unlimited numbers of horn gears with 2 to N slots

Ready to use machines for standard products

Carrier placement per mouse click, drag and drop

Emulation of the carrier movement with collision check

3-D-View of the braid
