Effective when used with film and non-wovens in nappy production. Supplied ready-to-install on web accumulators in film manufacture for plastic pockets and plastic sleeves, available in two overall diameters of 57 and 70 mm. The Mink BSW-PP ensures an even and gentle result e.g. in the laminating process.

• Suitable for web widths up to 1,100 mm wide
• The smallest of wrap angles possible
• For narrow web paths and extremely tight spaces
• Various bristle diameters for a wide range of applications
• Optional conductive version available for bristle diameters from 0.10 mm

BSW range with bristles around the whole circumference with an overall diameter of 104/134/163/194 mm. Very smooth running with double ball bearings on both sides. Designed to be robust with almost no vibration. Can be used in critical areas, even in the haul-off area on blown film lines. Optional version for continuously high temperatures of up to 160 °C.

• BSW design with Mink Zick-Zack elements
• Ready-to-install roll to suit your requirements
• Conductive version available
• Ideally suited for multi-slitting applications
• For web widths up to 6,000 mm wide
• For the thinnest of webs (film from 8 μ, paperfrom 10 g/m2)
• Up to 1,200 m/min with dynamic balancing
• Non driven solution

Static electricity is generated when surfaces rub against one another or are suddenly separated after being in close contact. This can lead to sparks and uncontrolled discharge. Mink brushes prevent this troublesome phenomenon by dissipating charge in a carefully controlled manner via the bristle tips. For optimum effect the bristle tips should be positioned so that they just barely touch the discharged surface. A gap of 1.5 to 2 mm is best. A conducting cable with a diameter of at least 2.5 mm² passes the charge directly to earth. Connection to an earthed machine frame is insufficient.

• Static electricity is eliminated right where it originates
• High voltages are dissipated in a carefully controlled manner
• Charge build-up and carry-over are prevented
• Slots in the profiles permit easy adjustment
• Perfect for puncture testing of cables and plastic-coated metals; even the tiniest pinholes are detected
• Simple assembly using different profile designs
• Low capital cost, big effect
• No maintenance required

The best solution!

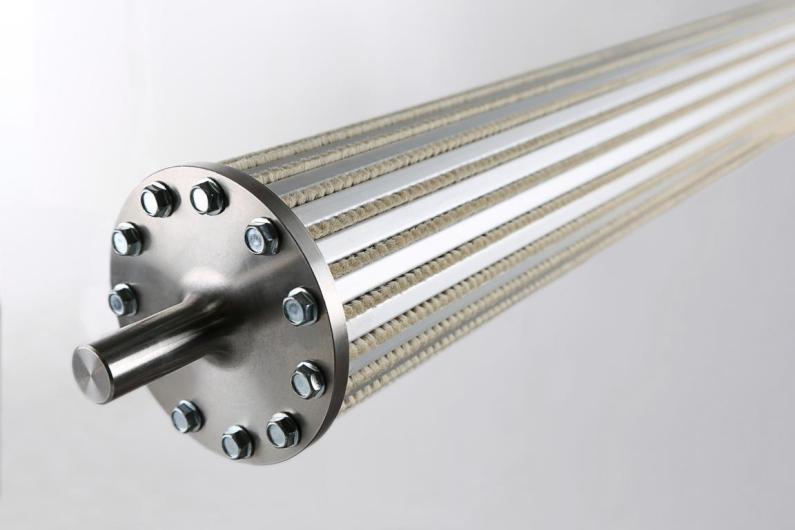

Mink web spreader rolls® are characterised by an excellent spreading effect compared to traditional systems. Crease-free smoothing all the way to the edges of the web, without marking, is ensured thanks to reliable BSW technology. The rollers do not require a separate drive and are nearly wear- and maintenance-free. The installation is simple and inexpensive even in critical areas of a plant. With wrap angles from 10 ° to 180 ° and a quick and ready-to-install delivery, the system is remarkably user-friendly.

What is possible?
Film thicknesses from 8 μ, web widths of up to 6 m as well as very high running speeds, thanks to dynamic balancing, are no problem for Mink spreading technology. In addition, Mink spreader rolls® are available with a unique double angling of the bristles for multi-slitting, with electrically conductive bristle material, and also for high temperatures of up to 160 °C. The BSW multi-slitting roller offers three advantages: reliable spreading, dependable creation of multiple slits and safe removal of static build-up – all in a single operation.

Our service:
The proverbial „Mink all-around service“ and personal attention both before and after installation of the web spreader rolls goes without saying. In addition to solid technical advice, providing excellent customer support is one of the cornerstones of our business.
