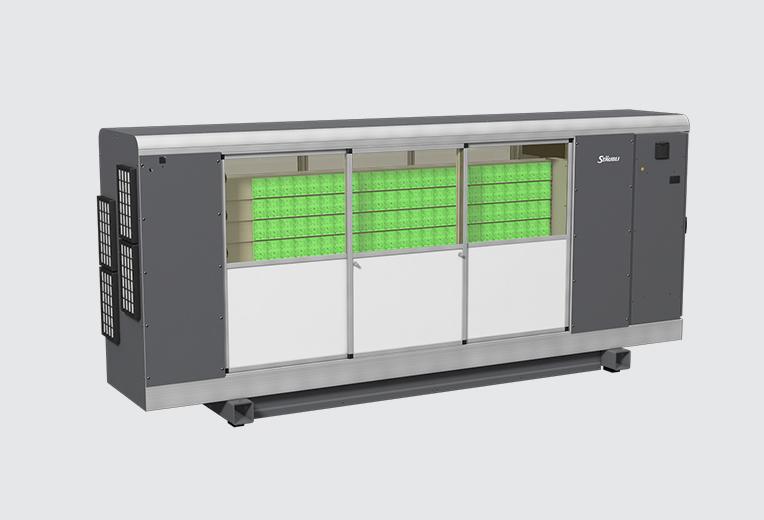

UNIVAL 100 servo-driven single-end machine for specific weaving

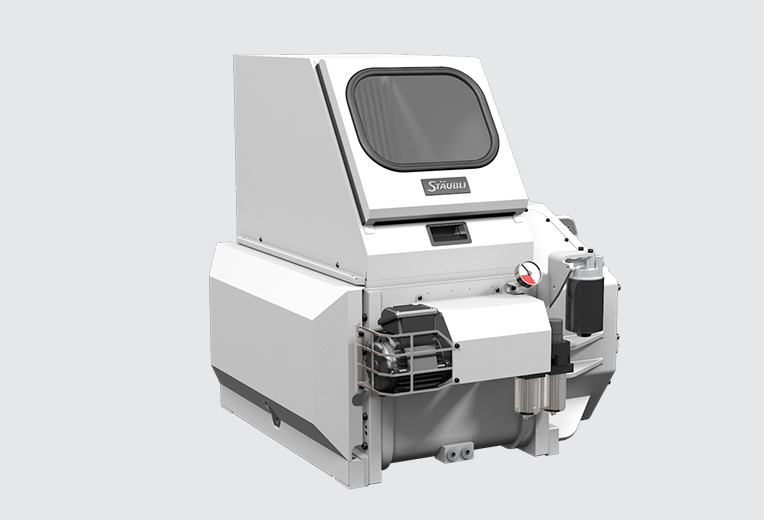

The 2688 range of electronically controlled rotary dobbies is suitable for producing all technical fabrics, especially forming fabrics.

The range includes various types of dobby matched to the performance required from the weaving machine, taking the weaving parameters into account. They can be used on all types of weaving machine, positioned low or high.

You want to learn more about this specific shedding solution, please click here: http://www.staubli.com/en/textile/textile-machinery-solutions/sms/dobbies-2688-4080/

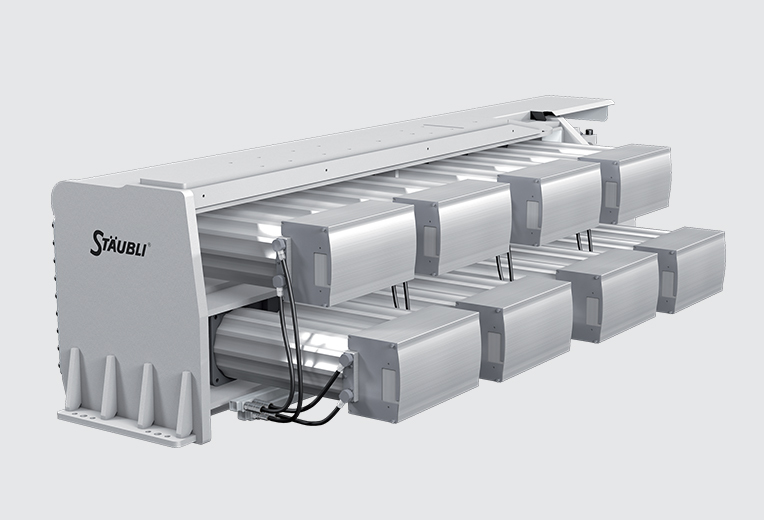

UNIVAL 500 for technical textiles

The UNIVAL 500T presents a completely new concept compared to all previously available systems. This innovative new technology provides an almost unlimited range of applications, expansion options and settings, along with unlimited shed opening freedom. With a dedicated drive for each individual heald frame, this servomotor-controlled dobby is particularly well suited to producing technical fabrics.

Field of application:

The UNIVAL 500T is especially suitable  for producing sophisticated, technical or very dense fabrics with high warp tension.

Special advantages:

• The compact design of the drive motors means they require little space
• The drive electronics are fitted directly onto the motor housing
• The patented, height-staggered harness motion provides for up to 56 heddle frames at a 10 mm pitch

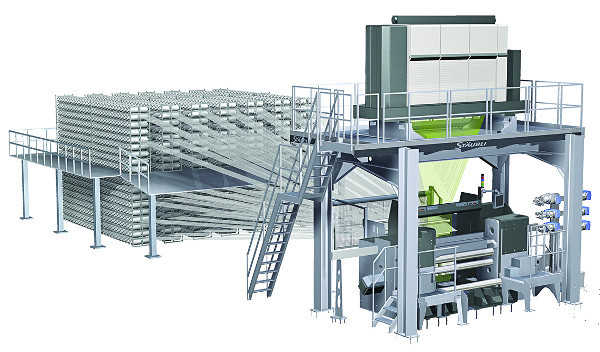

This weaving system has been developped for all types of technical textiles, especially heavy and thick ones. Allowing individual configuration the system offers the possiblity to compose system components that are perfectly adapted to the requirements of the application that will be woven.

Featuring innovative technologies, such as the servo controlled shedding solution, the TF provides unlimited design freedom to produce innovative fabrics with any required characteristics.The possibility of combining a wide variety of yarn materials into a fabric and the production of multi-layer fabrics with variable thickness or new types of spacer fabrics sets the perfect stage for creative compositions.

• Heavy multi-layer fabrics
• reinforcing fabrics for lightweight applications
• spacer fabrics
• multi-layer fabrics with new types of structures and material mix


Warp tying installations

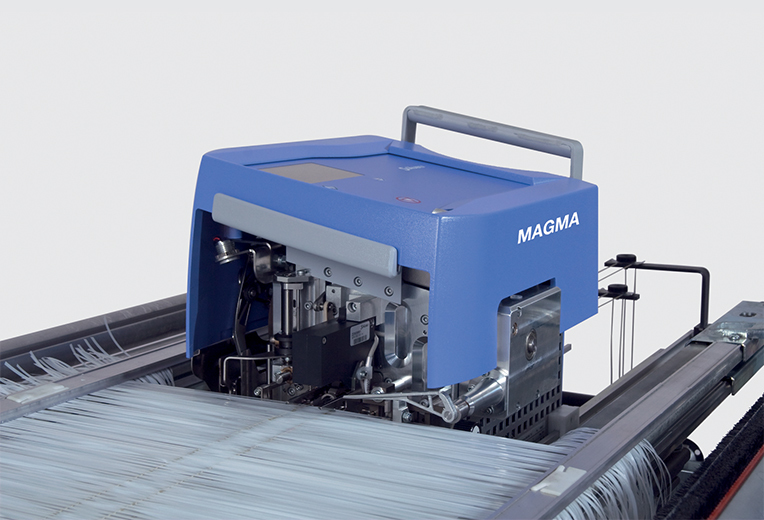

The Stäubli MAGMA warp tying machine, in conjunction with TPF3 tying frames, is a high-performance warp tying installation for a medium to coarse yarn range. This equipment guarantees maximum efficiency during the warp change process for every weaving mill.

Warp tying installations from Stäubli are both easy to operate and quick to set up, making them indispensable tools for all warp changes.

MAGMA T12 is particularly suitable for tying very coarse to medium count yarns as well as technical yarns of warps with 1:1 lease.

Features:

• Optical double-yarn sensor is standard
• Single or double knots selected at the push of a button
• Length of knot ends is variable
• No periodic immersion in an oil bath required; regular lubrication is sufficient
• Drive system with an array of individually controlled motors
• Applicable on all Stäubli TPF3 tying frames (with extra racks)
• Colour touch screen for display, operating and control
