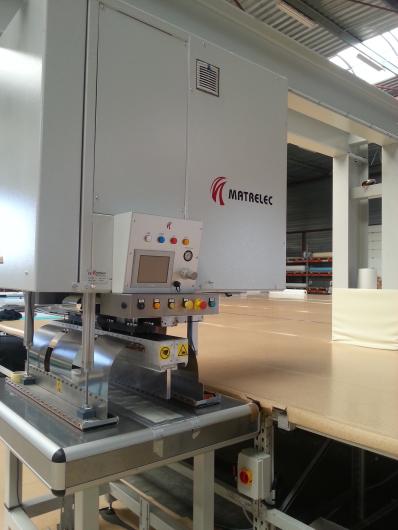

Suspended high frequency welding press Stationary or travelling X,Y

A press who ease the welding of large and bulky products.

The C80 C-throat presses, with their 425 mm depth behind electrode and without earth capacitor, ease the welding of large and bulky products which have to be moved frequently.
The optimized design for two operators with control on both sides of the machine and its dedicated mode makes it easy to work in pairs face to face.

• Work optimized for two operators
• Easy handling of the material thanks to the 425 mm c-throat without earth capacitor
• Good visibility of the welding area thanks to adjustable lighting
• Robust design and precise movements thanks to precise guidance
• Fast tool changing via T-slide
• Several power levels to use small tools
• Constant quality and traceability of each welding thanks to automatic tuning and curve
• Welding parameters saved as recipes allowing a quick change of production

Travelling C frame press, moved by servomotor on a modular chassis. Its position can be controlled digitally from the touch screen. The alignment of the guidance is very precise and ensures almost invisible coverage. 750 mm C frame allow to store a large amount of material and the lower marble 1600 x 400 mm allow to weld big accessories.

• Welded mechanical chassis for a strong rigidity and durability
• Column block Ø40 mm 600 mm wide for a perfect repartition of the pressure on all the electrode
• 750 mm C throat and big back storage to hold material
• Welding up to 1500 mm long
• Good visibility of the welding zone thanks to the 175mm space under the head.
• Big marble for tooling up to 400 mm wide
• 3 different power to use small tools <10cm²
• Constant quality and traceability of each welding thanks to automatic tuning and curve
• Possibility to use flying tools on all the welding table, machine goes automatically to it
• Welding parameters saved as recipes allowing a quick change of production.

Multipass transfer table machines allow to produce all types of products, from protective suits to sun lounger, by shortening cycle times compared to a conventional machine.

Its two large trays allow you to make products over 2 meters and prepare the next product during welding, or accommodate several different tools to perform several operations on one product or several different products.

• Realization of large products without rework
• Transfer tables up to 2.5 meters
• Automatic cycle, in single or multi pass
• Realization of a different product per tray
• Free access all around the tables
• Consistent quality and traceability of welds thanks to auto tuning
• Possibility to use flying tools and several tools on tables
• Several pre-recorded positions and precise movement via brushless
• Automatic change of recipes according to position

Great flexibility in minimum space.

This small press with pedal control is perfect for two-handed work and there is full
access as there is no earth plate, facilitating the welding of details or finishes.
For precision work, this machine can be fitted with an enclosed automatic transfer
table or a sleeve board for difficult parts such as tubes, sleeves or any other parts that
cannot rest on a table

• Easy to use thanks to the pedal control
• 4 power levels, allowing for work on small surfaces, from 1 cm²
• Full access: no earth plate
• Numerous options for delicate work and product corrections or finishes
