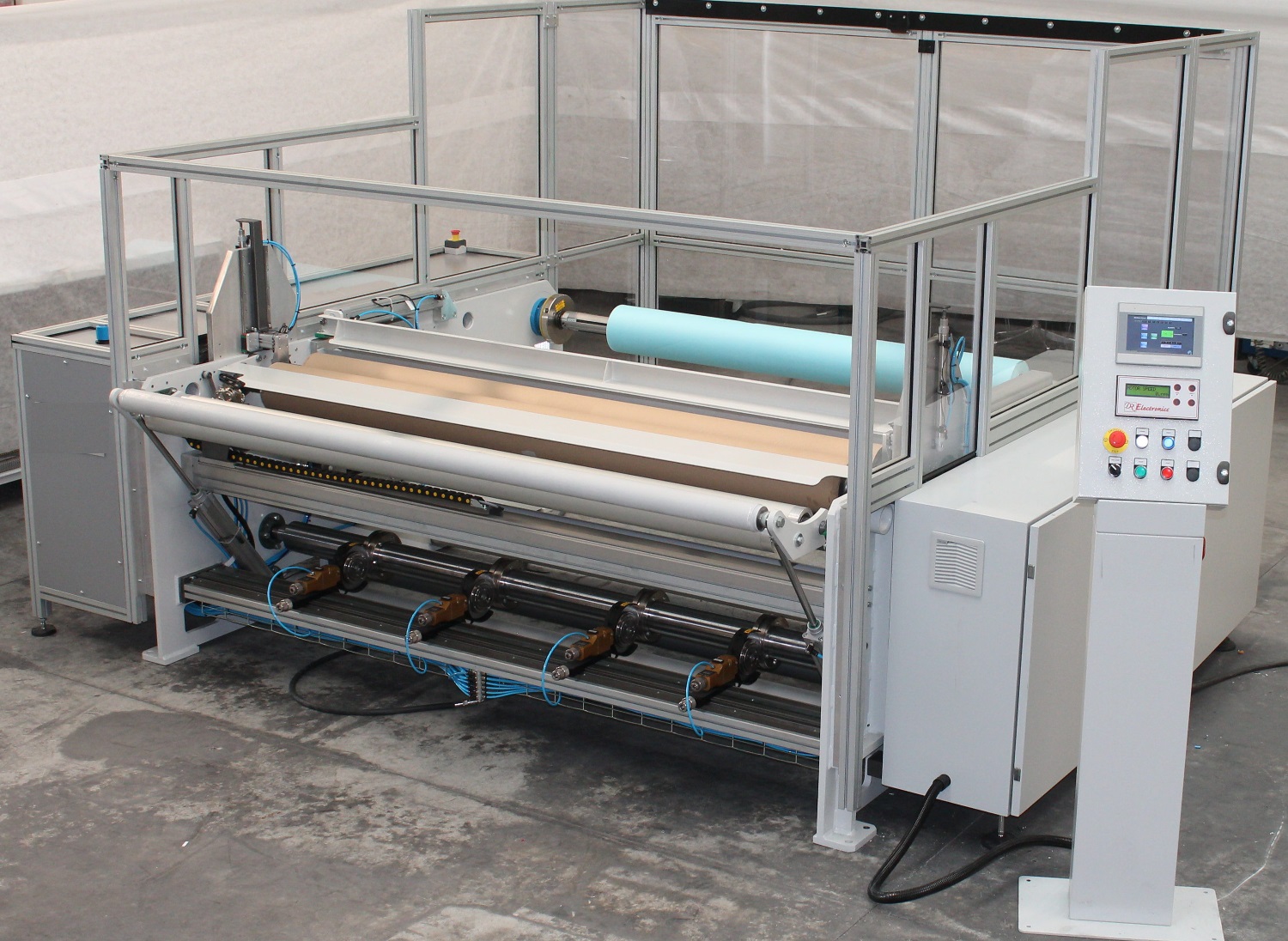

SLITTING MACHINE WITH PRE-CUT(PERFORATION) DEVICE MOD. EASY-CUT

New model EASY-CUT for longitudinal cut of Non-woven, Spun-bond, Spun-lace, paper, laminated, film. Machine very compact. Possibility of application of pre-cut (perforation) device.

SOME FINAL PRODUCT PROCESSED WITH PRE-CUT DEVICE

• Tablecloth
• Napkins
• Rolls save beds
• Hygienic Rolls
• Cleaning rolls
• Soaked wipes
• Strap multipurpose, any size

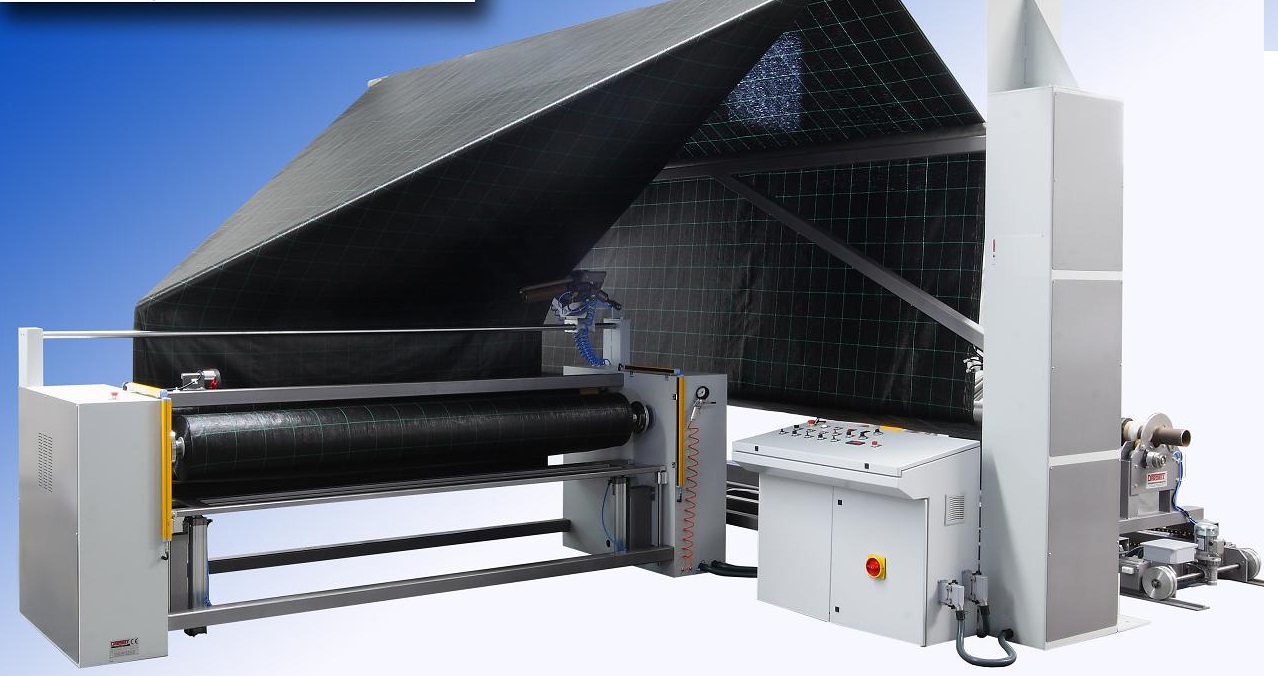

DOUBLING(FOLDING) MACHINE

CHARACTERISTICS AND TECHNICAL DETAILS

• Modular doubling machine (integrated with inspection table or to get double plait).
• Modularity with entry feeding in plait form/roll/big roll.
• Suitable for doubling fabric up to 5.400mm working width

• Triangle for doubling adequate for any kind of fabric.
• Edge guiding for centering with mechanical/pneumatic devices.

• Motorized winding device, synchronized with the infeed motorisation. Suitable for roll up max. 500mm diameter. Also complete with a pneumatic device for the regulation of compaction of roll.

• Configuration for tangential winding, axial winding and book folding.

• Variable mechanical speed from 0 to 40mt/min. Back motion and working cycle manual/automatic.

• Inverter motorisation.

ROLL PACKING MACHINE MOD. COMPATTA

CHARACTERISTICS AND TECHNICAL DETAILS

• Single or double bobbin of film
• Longitudinal seal and cut of film by a precision sealing bar
• Automatic flow of roll into the packing station
• Automatic system for positioning of roll during wrapping operation
• Automatic feeding of film, without waste
• Safety lateral doors in plexiglass for a good visibility of operation
• Drive panel with digital regulation of all parameters, including time and temperature to be regulated accordingly with the thickness of film
• Possibility to pack up to Ø=1000mm and L=3000mm

POSSIBLE SOLUTIONS:

• Ends closing with double parallel sealing bar
• Ends closing by a passage through individual sealing bar
• Ends closing by hot air blower
• Ends closing by ultrasonic head
• Weighing on loading cells
• Software data control and seriale RS232
• Labelling
• Other solution on demand
• Automation with collecting rolls from several inspection machines
• Automatic cycle by PLC

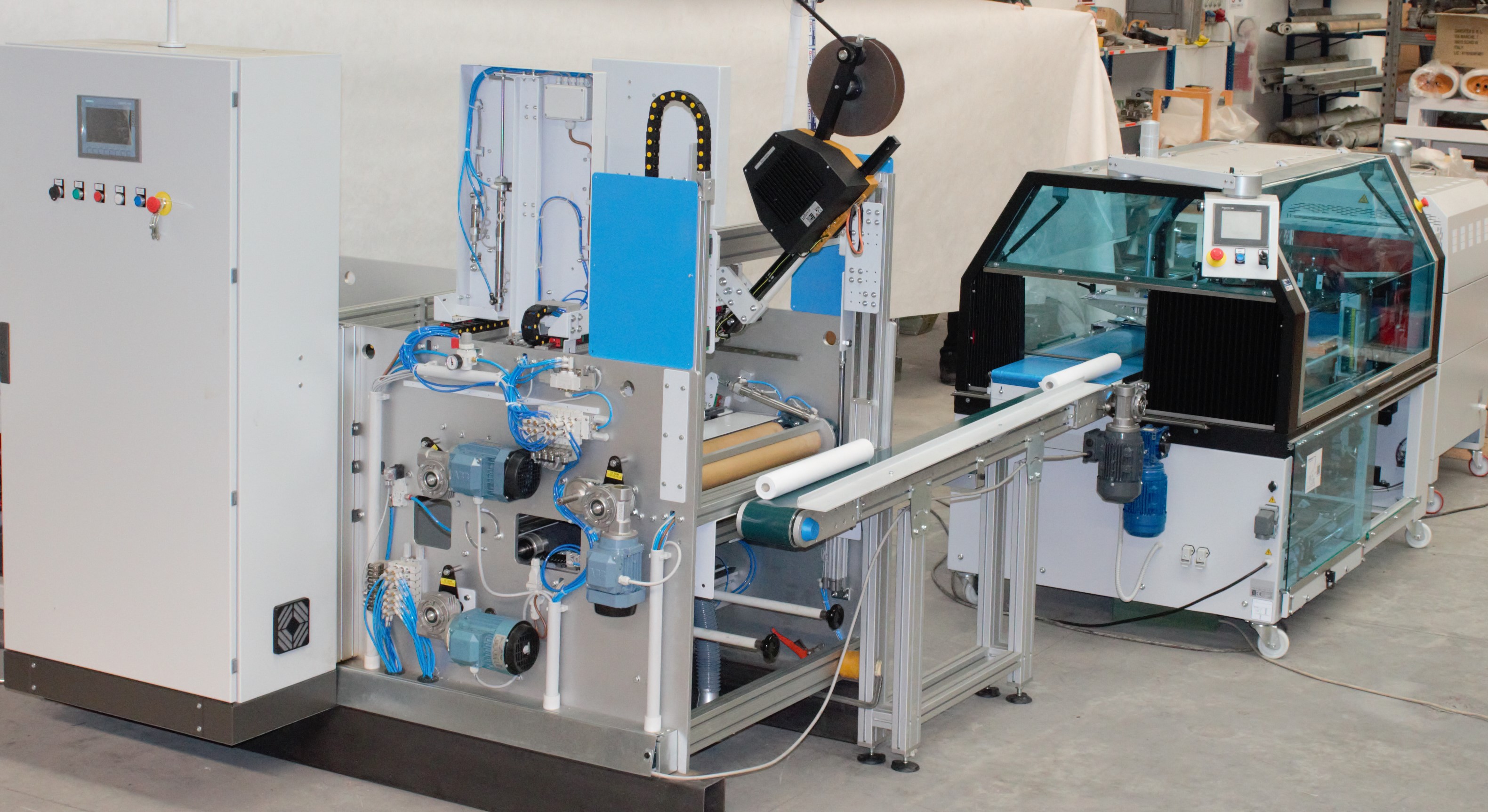

CONFIGURATION:

• UNWINDING FROM MOTHER ROLL, AXIAL MOTION
• WINDING ON CORES, TANGENTIAL MOTION
• LABEL STICKING (OPTIONAL)
• CONVEYOR TO JOIN WRAPPING SECTION
• WRAPPING SECTION
• FILM SHRINKING TUNNEL

PRODUCTION CHARACTERISTICS:

• MAX. Ø OF MOTHER ROLL 1.200mm
• CORE OF MOTHER ROLL 76mm (3”)
• MAX. WORKING WIDTH 600mm
• MAX Ø OF ROLL WOUND 200mm
• STANDARD CORES Ø 12-40mm
• MAX. WIDTH OF CORES 600mm
• MIN. WIDTH OF CORES 360mm
• KIND OF FILM RECOMMENDED POLYOLEFINE
• THICKNESS OF FILM 18-20micron
• MAX. WINDING SPEED 100m/min

TECHNICAL CHARACTERISTICS

• POWER INSTALLED FOR WINDING 7Kw
• POWER INSTALLED FOR WRAPPING 2Kw
• POWER INSTALLED FOR SHRINKIN TUNNEL 12Kw
• PLC AND PROGRAM SIEMENS

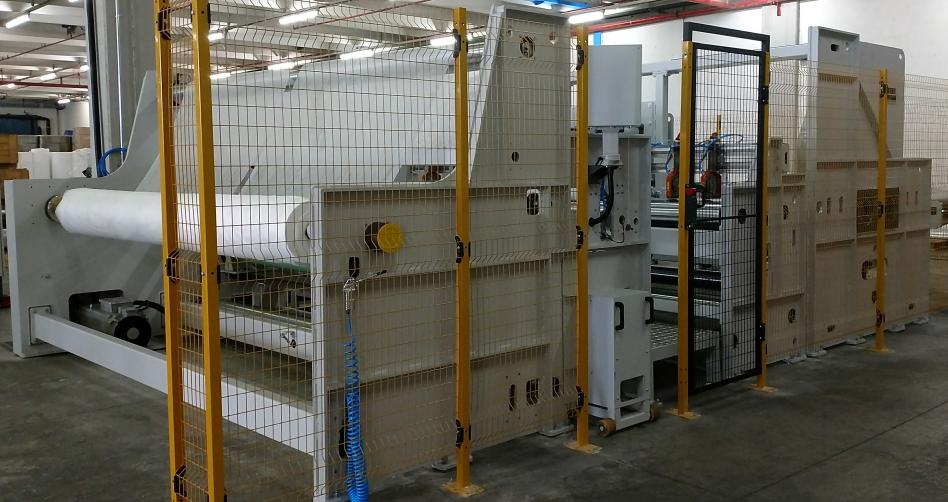

SEQUENCE OF AUTOMATION OF WINDING MACHINE

• AUTOMATIC STOP WINDING AT THE LENGTH PROGRAMMED
• AUTOMATIC PUSH THE ROLL IN THE POSITION TO PERMIT CROSS CUTTING
• AUTOMATIC CROSS CUTTING
• AUTOMATIC DELIVERY OF THE NEXT CORE IN THE POSITION OF WINDING
• AUTOMATIC FEEDING OF FABRIC OVER THE CORE FOR SECURE WINDING
• AUTOMATIC START FOR THE NEXT ROLL
• LABEL STICKING ON THE ROLL PREVIOUSLY FINISH AND PUSHED OUT ON BELT
• CONVEYOR BELT SEND THE ROLL TO THE AUTOMATIC WRAPPING MACHINE
