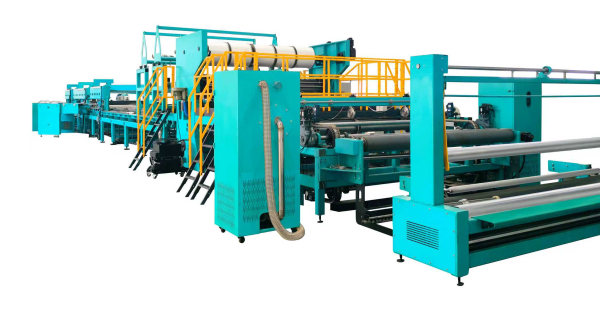

Name Parameter
Gauge E5,E6,E14,E18
Working width 50”,101”
Needle type Compound needle
Beam 21”,30”
No. Of bars 2 ground bar and 1 ST bar
Running speed 20-1000rpm/min(speed base on yarn and design)
Shogging manner Pattern disc
Let-off mode Electronic yarn let-off
Take-up mode Electronic take-up
Winding Independent electronic winding
No. Of layers 0º ST yarn,+45º weft yarn,90º weft yarn,-45º weft yarn.
Weft insertion mode Clamping weft laying, greatly reducing yarn waste, up to 10 inches.
Transmission mode High precision closed clamping transmission chain
Main motor power 7.5KW
Lubrication device Constant temperature and pressure lubrication of crankshaft
Control mode Intelligent control system
Working power 380V/50HZ

USED FOR WEAVING CARBON FIBER MULTI AXIAL FABRICS, APPLIED IN AEROSPACE,AUTOMOTIVE, WIND POWER AND OTHER FIELDS.

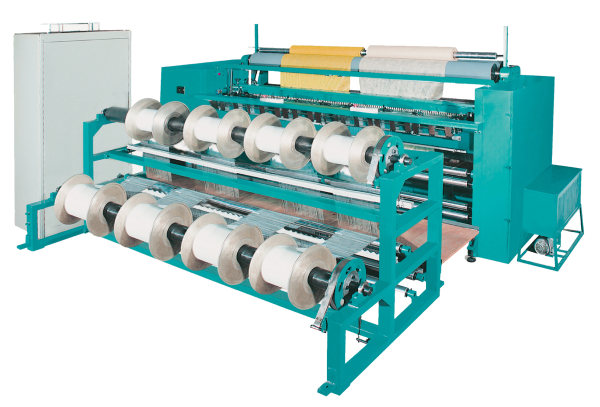

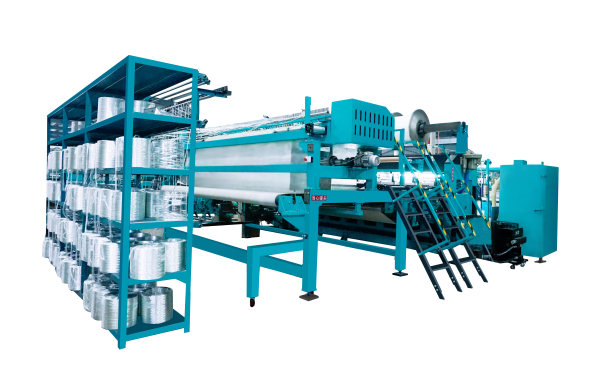

Name Parameter
Gauge E3.5,E7,E14
Working width 2800mm,3300mm,3600mm,4200mm
Bar number 1 bar
Speed 50-1200rpm/min
Fabric take-up Electronic take-up
Stitch length 0.5-6.5mm
Needle type Compound needle
Warp beam 152mm(21*30inch)
Power 7.5KW

THE MACHINE IS MAINLY USED IN PROCESSING TEXTILE GLASS FIBER. THE PRODUCTS ARE MAINLY USED INSPORTS INDUSTRY,MOTOR VEHICLE BODY AS WELL AS SHIP HULL.

Name Parameter
Gauge E14,E16,E18,E22
Working width 186inch,215inch
No.of bar 1 bar or 2 bars
Speed 50-1500rpm/min
Yarn let-off mechanism Positive let-off system
Take-up manner Electronic take-up
Stitch length available 0.5-5.5mm
Needle type Compound needle
Warp beam 30X21INCH
Machine drive Compound needle
Machine control 7inch touch screen
Power 7.5KW(186INCH),11KW(215INCH)

RS1-V/RS2-V WARP KNITTING MACHINE STRENGTHENS THE FASTNESS AND TOUGHNESS OF THE FABRICS.
ITS PRODUCTS ARE WIDELY USED AS HOME DECORATION TEXTILES, HYGIENICAL FIELD, SHOES,AND CLOTHING LINING

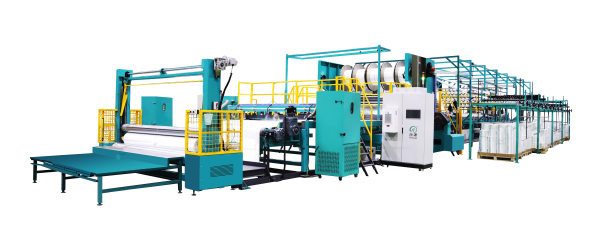

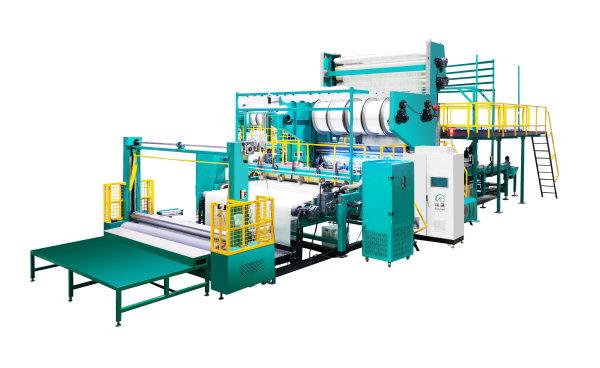

Name Parameter
Gauge E5,E6,E10,E12,E18
Working width 50”,101”,152”
Number of bars 2 ground bars and 1 ST bar
Speed 50-1800rpm/min
Shogging manner Pattern disc/EL
Let-off manner EBA system
Take-up manner EWA system
Needle type Compound needle
Multiaxial layers The basic version of the machine is equipped with 5 layers,3 weft layers, 1 fleece feed-in
and 1 pillar thread(0º) device.all layers can execute an angle between-45ºand +45°
Drive Frequency motor
Power 7.5KW

AS THE FIRST MULTI-AXIAL WARP KNITTING MACHINES IN CHINA, THE FABRICS OF WHICH ARE MAINLY USED IN THE PLANES,SPACECRAFTS,AUTOMOBILES, NAVAL VESSELS, ARMORED CARS AND OTHER FIELDS.

Name Parameter
Gauge E5,E6,E14,E18
Working width 50”,101”
Needle type Compound needle
Beam 21”,30”
No. Of bars 2 ground bar and 1 ST bar
Running speed 20-1000rpm/min(speed base on yarn and design)
Shogging manner Pattern disc
Let-off mode Electronic yarn let-off
Take-up mode Electronic take-up
Winding Independent electronic winding
No. Of layers 0º ST yarn,+45º weft yarn,90º weft yarn,-45º weft yarn.
Weft insertion mode Clamping weft laying, greatly reducing yarn waste, up to 10 inches.
Transmission mode High precision closed clamping transmission chain
Main motor power 7.5KW
Lubrication device Constant temperature and pressure lubrication of crankshaft
Control mode Intelligent control system
Working power 380V/50HZ

USED FOR WEAVING CARBON FIBER MULTI AXIAL FABRICS, APPLIED IN AEROSPACE,AUTOMOTIVE, WIND POWER AND OTHER FIELDS.

Name Parameter
Gauge E3.5,E7,E14
Working width 2800mm,3300mm,3600mm,4200mm
Bar number 1 bar
Speed 50-1200rpm/min
Fabric take-up Electronic take-up
Stitch length 0.5-6.5mm
Needle type Compound needle
Warp beam 152mm(21*30inch)
Power 7.5KW

THE MACHINE IS MAINLY USED IN PROCESSING TEXTILE GLASS FIBER. THE PRODUCTS ARE MAINLY USED INSPORTS INDUSTRY,MOTOR VEHICLE BODY AS WELL AS SHIP HULL.

Name Parameter
Gauge E14,E16,E18,E22
Working width 186inch,215inch
No.of bar 1 bar or 2 bars
Speed 50-1500rpm/min
Yarn let-off mechanism Positive let-off system
Take-up manner Electronic take-up
Stitch length available 0.5-5.5mm
Needle type Compound needle
Warp beam 30X21INCH
Machine drive Compound needle
Machine control 7inch touch screen
Power 7.5KW(186INCH),11KW(215INCH)

RS1-V/RS2-V WARP KNITTING MACHINE STRENGTHENS THE FASTNESS AND TOUGHNESS OF THE FABRICS.
ITS PRODUCTS ARE WIDELY USED AS HOME DECORATION TEXTILES, HYGIENICAL FIELD, SHOES,AND CLOTHING LINING
