WinTape

The yarn-tension controlled take-up heads of STC Spinnzwirn are known worldwide. Over 50,000 winding take-up heads are running since 1991 with a wide variety of different materials.

STC Spinnzwirn focuses on the winding of cellulose-based yarn such as fine viscose, rayon or lyocell as well as special materials such as acrylic.

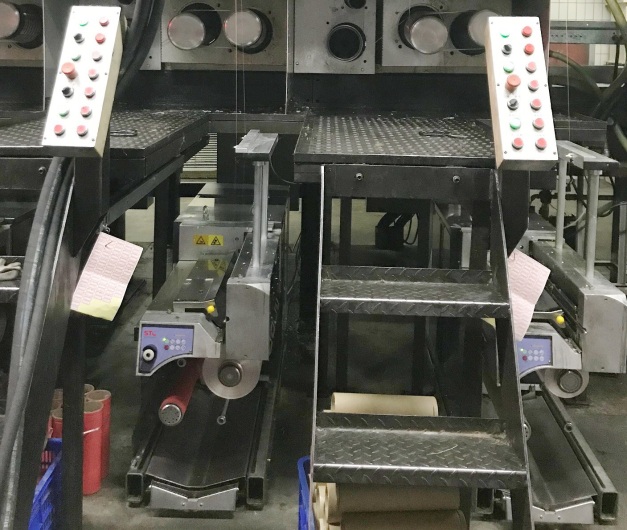

The WinTape is an automatic take-up head with a different concept. It is rotated by 90°, has only one chuck and offers two operation sides: thread handling at the front and bobbin handling at the back. With tube magazine, yarn end fixation and parking positions for full bobbins, the WinTape is the ideal partner for anyone who wants to have a fully automatic take-up - whether with a conveyor belt or a robot.

• up to 800 m/min winding speed
• up to 3,000 dtex
• up to 320 mm package diameter

Texturing

Texturing solutions are available as inline or offline versions combined with automatic winders or combined with spiral wrapping and automatic winders for maximum flexibility.

Spiral wrapping

Spiral wrapping solutions for artificial turf yarns is available as an inline process. The inline system means less waste, fewer operators and no interim storage of the packages.

• up to 350 m/min take-up speed
• up to 11,000 rpm of the spiral wrapping spindle
• up to 15,000 dtex

Boost operations with extreme productivity. And create room for new ideas.

Monofilaments & tape are made from polyester, polyamide, polypropylene, polyethylene, biopolymers, etc. We all find these textiles everywhere in our daily business.

STC Spinnzwirn tape & monofilament extrusion lines are a part of the production facility of many customers around the globe. Achieving superlative efficiency with the lowest energy consumption, raw materials usage and staff requirements. And create capacities for new projects.

Ensure your production is sustainable, efficient and future-oriented. And make your systems profitable – for many years to come!

monofilament for:

• artificial grass
• ropes
• nets
• paper machine clothing
• geotextiles
• concrete reinforcement
• tapes for:
• baler twines
• geotextiles
• carpet backing
• tarpaulins
• cable fillers
• artificial grass
• concrete reinforcement

DD2000E / DD2000GTE

Our DD2000E and DD2000GTE are two-for-one twisting machines designed for standard grades of technical yarn, tape and monofilament production of PE, PET, PP and PA. Certain applications require additional equipment such as twisting flyer or additional lubrication, which of course are available.

But also, specialties like Aramid or UHMWPE can be twisted at the DD2000E without reducing the properties of the materials. Special yarn guiding elements avoid damages of single filaments of these high-performance materials.

The twisted yarn is wound with a yarn-tension-controlled precision take-up head. In addition to precision winding, random winding is also available in order to meet all customer requirements.

Our twisting machines offer a high flexibility. The control of the twisting machine enables the arrangement of groups, running with different settings. Additionally, each position can be turned on and off.

• up to 20,000 dtex
• up to 150 tpm
• up to 500 m/min take-up speed
