For the control of abrasion and pilling on almost any kind of woven and knitted fabrics, non-wovens, socks, gloves, natural and artificial leather, both dry and wet samples.

Extremely versatile, accurate, silent, vibration free, 100% made in Italy. Supplied with a kit of top quality consumables complete with traceable certificate.

Two models available: Martindale 6 positions, code 2568A; Martindale 9 positions, code 2568.

International standards:

Abrasion: Built according to: EN ISO 12947-1, EN ISO 12947-2, EN ISO 12947-3, EN ISO 12947-4, ASTM D4966, IWS TM 112, EN ISO 5470-2, JIS L1018

Pilling: Built according to EN ISO 12945-2, ASTM D4970, IWS TM 196, SN 198525.

Officially approved by Marks & Spencer for the following tests: Marks & Spencer P17 Pilling method P1, P18C, P19, P19A, P19B, P19C

Frontal panel with user-friendly design characterised by:

• wide LCD touch screen display for easy setting of testing parameters; 　
• graphic layout of the testing heads; 　
• graphic scheme to select the type of test and the movement path; 　
• on/off, start/stop and emergency keys. 　

Three types of test movement: abrasion (big Lissajous), pilling (small Lissajous) and rubbing (linear). The desired movement is performed according to the set position of the 3 driving pivots, as shown by the graphic scheme on the control panel.

Intuitive software for the setting of testing parameters, such as number of cycles per testing step (with consequent stop), speed (23,75 - 47,5 - 71,25 rpm), increase/decrease count­ing modality, display language.

Easy access to all the testing positions. 　

Sample and abrasion surface can be easily inspected without removing the plate. 　

ISO 9001 calibration report available on request.

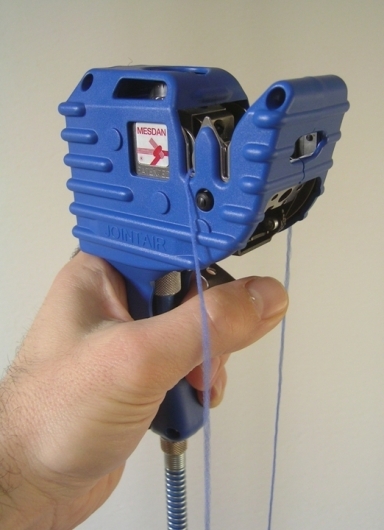

SPLICER for FILAMENT ROVINGS and TECHNICAL heavy count yarns

JOINTAIR 116G and JOINTAIR® 116K belong to the new generation of manually operated splicers, specifically designed for the joining of coarse count yarns and filament rovings, within the range of 1000 to 5000 Tex (116G) or 200 to 3500 Tex (116K), typically made of glass fibres, carbon fibres and roving. Cutting system specifically designed for high tenacity yarns.

Slight pressure of the operating trigger activates an automatic joining process where all functions are controlled by a pneumatic circuit. JOINTAIR 116G and 116K can have wide application when used in conjunction with the A.T.S. system on a variety of textile machines.

JOINTAIR® 116G - SPLICER FOR ROVINGS AND COARSE HIGH TENACITY TECHNICAL YARNS with a count range of 1000 to 5000 Tex

JOINTAIR® 116K - SPLICER FOR MEDIUM / COARSE TECHNICAL YARNS with a count range of 200 to 3500 Tex　

Instrument to determine the flammability resistance of textiles and the flame propagation rate onto vertically oriented textile materials.
Suitable to test: protective fabrics; technical fabrics in general; clothes and furnishing fabrics.
The instrument can be also used with toys, as well as with both natural and artificial leather.
ISO Flammability Lab is fully automatic, since it is equipped with a PLC that controls and records the movement of the burner, the distance of the same from the samples, and the flame propagation time from one set distance to the other one.
Equipped with serial port for connection with Personal Computer, and for data storing and print.
Optional:
Radiator (Code 3392E.40) to analyse the flammability resistance of textile materials exposed to the heat of a radiator (as required by the EN 13772).

Reference Standards: UNI EN ISO 15025, UNI EN ISO 6940,
UNI EN ISO 6941, UNI EN 13772, UNI EN 407, UNI EN 1101,
UNI EN 1102, UNI EN 1103, UNI EN ISO 14116, UNI EN ISO
14878, UNI EN 1624, UNI EN 1625

Power supply: 115 Vac or 230 Vac, 50/60 Hz
Net weight: 50 kg
Dimensions: (L) 650 x (W) 750 x (H) 1200 mm

Two-column universal electronic strength tester, built according to CRE (Constant Rate of Extension) testing principle, developed to meet the high quality testing requirements of universities,
research institutes and leading companies. Maximum capacity: 5000 kg (50 kN).
Suitable to test also technical textiles, geo-textiles, non-woven and industrial textiles in general.
Twin ball bearing screws ensure the smooth movement of the crossbar, sliding between two reinforced guide columns that prevent any deformation of the framework.

Developed to be used with a wide range of easily interchangeable load cells and clamps, both mechanical and pneumatic.Tensolab 50 kN incorporate a mini PC with the user software to perform a full range of tests, included traction, compression, tearing, delamination, adhesion, seam slippage tests and hysteresis cycles, according to specific international standards.
A Mechanical Extension Device is available as optional, for a further check of elongation on very rigid samples with low intrinsic elongation

• Load Capacity : 50000 N
• Speed range 0.001 to 800 mm/min
• Crosshead travel 1100 mm
• Frame stiffness 25000 N/mm (DA VERIFICARE SULLA MACCHINA)
• Max speed at full load 500 mm/min
• Max returning speed 800 mm/min
• Power supply: 115-240 Vac, 50/60 Hz, single-phase, 1.1 kW
