DRM S.r.l.

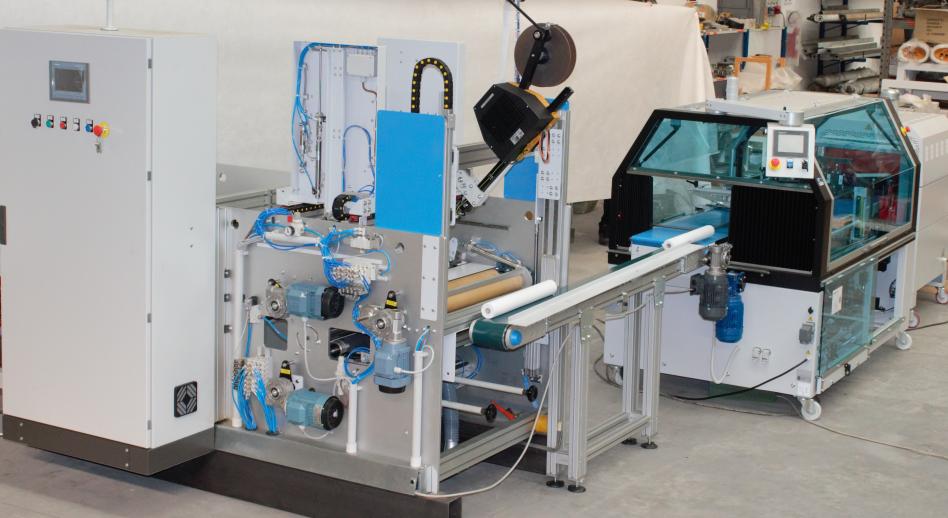

MINI-WINDING AND ROLL WRAPPING (FULL AUTOMATED LINE)

MINI-WINDING AND ROLL WRAPPING (FULL AUTOMATED LINE)

DRM S.r.l.

Supplier profile All products

Contact supplier

Description

CONFIGURATION:

UNWINDING FROM MOTHER ROLL, AXIAL MOTION
WINDING ON CORES, TANGENTIAL MOTION
LABEL STICKING (OPTIONAL)
CONVEYOR TO JOIN WRAPPING SECTION
WRAPPING SECTION
FILM SHRINKING TUNNEL

PRODUCTION CHARACTERISTICS:

MAX. Ø OF MOTHER ROLL 1.200mm
CORE OF MOTHER ROLL 76mm (3”)
MAX. WORKING WIDTH 600mm
MAX Ø OF ROLL WOUND 200mm
STANDARD CORES Ø 12-40mm
MAX. WIDTH OF CORES 600mm
MIN. WIDTH OF CORES 360mm
KIND OF FILM RECOMMENDED POLYOLEFINE
THICKNESS OF FILM 18-20micron
MAX. WINDING SPEED 100m/min

TECHNICAL CHARACTERISTICS

POWER INSTALLED FOR WINDING 7Kw
POWER INSTALLED FOR WRAPPING 2Kw
POWER INSTALLED FOR SHRINKIN TUNNEL 12Kw
PLC AND PROGRAM SIEMENS

SEQUENCE OF AUTOMATION OF WINDING MACHINE

AUTOMATIC STOP WINDING AT THE LENGTH PROGRAMMED
AUTOMATIC PUSH THE ROLL IN THE POSITION TO PERMIT CROSS CUTTING
AUTOMATIC CROSS CUTTING
AUTOMATIC DELIVERY OF THE NEXT CORE IN THE POSITION OF WINDING
AUTOMATIC FEEDING OF FABRIC OVER THE CORE FOR SECURE WINDING
AUTOMATIC START FOR THE NEXT ROLL
LABEL STICKING ON THE ROLL PREVIOUSLY FINISH AND PUSHED OUT ON BELT
CONVEYOR BELT SEND THE ROLL TO THE AUTOMATIC WRAPPING MACHINE

More products by DRM S.r.l.

Trade fair innovation

SLITTING MACHINE WITH PRE-CUT(PERFORATION) DEVICE MOD. EASY-CUT

SLITTING MACHINE WITH PRE-CUT(PERFORATION) DEVICE MOD. EASY-CUT

New model EASY-CUT for longitudinal cut of Non-woven, Spun-bond, Spun-lace, paper, laminated, film. Machine very compact. Possibility of application of pre-cut (perforation) device.

SOME FINAL PRODUCT PROCESSED WITH PRE-CUT DEVICE

Tablecloth
Napkins
Rolls save beds
Hygienic Rolls
Cleaning rolls
Soaked wipes
Strap multipurpose, any size

DOUBLING (FOLDING) MACHINE

DOUBLING(FOLDING) MACHINE

CHARACTERISTICS AND TECHNICAL DETAILS

Modular doubling machine (integrated with inspection table or to get double plait).
Modularity with entry feeding in plait form/roll/big roll.
Suitable for doubling fabric up to 5.400mm working width

Triangle for doubling adequate for any kind of fabric.
Edge guiding for centering with mechanical/pneumatic devices.

Motorized winding device, synchronized with the infeed motorisation. Suitable for roll up max. 500mm diameter. Also complete with a pneumatic device for the regulation of compaction of roll.

Configuration for tangential winding, axial winding and book folding.

Variable mechanical speed from 0 to 40mt/min. Back motion and working cycle manual/automatic.

Inverter motorisation.

ROLL PACKING MACHINE TO PACK ANY KIND OF ROLLS

ROLL PACKING MACHINE MOD. COMPATTA

CHARACTERISTICS AND TECHNICAL DETAILS

Single or double bobbin of film
Longitudinal seal and cut of film by a precision sealing bar
Automatic flow of roll into the packing station
Automatic system for positioning of roll during wrapping operation
Automatic feeding of film, without waste
Safety lateral doors in plexiglass for a good visibility of operation
Drive panel with digital regulation of all parameters, including time and temperature to be regulated accordingly with the thickness of film
Possibility to pack up to Ø=1000mm and L=3000mm

POSSIBLE SOLUTIONS:

Ends closing with double parallel sealing bar
Ends closing by a passage through individual sealing bar
Ends closing by hot air blower
Ends closing by ultrasonic head
Weighing on loading cells
Software data control and seriale RS232
Labelling
Other solution on demand
Automation with collecting rolls from several inspection machines
Automatic cycle by PLC

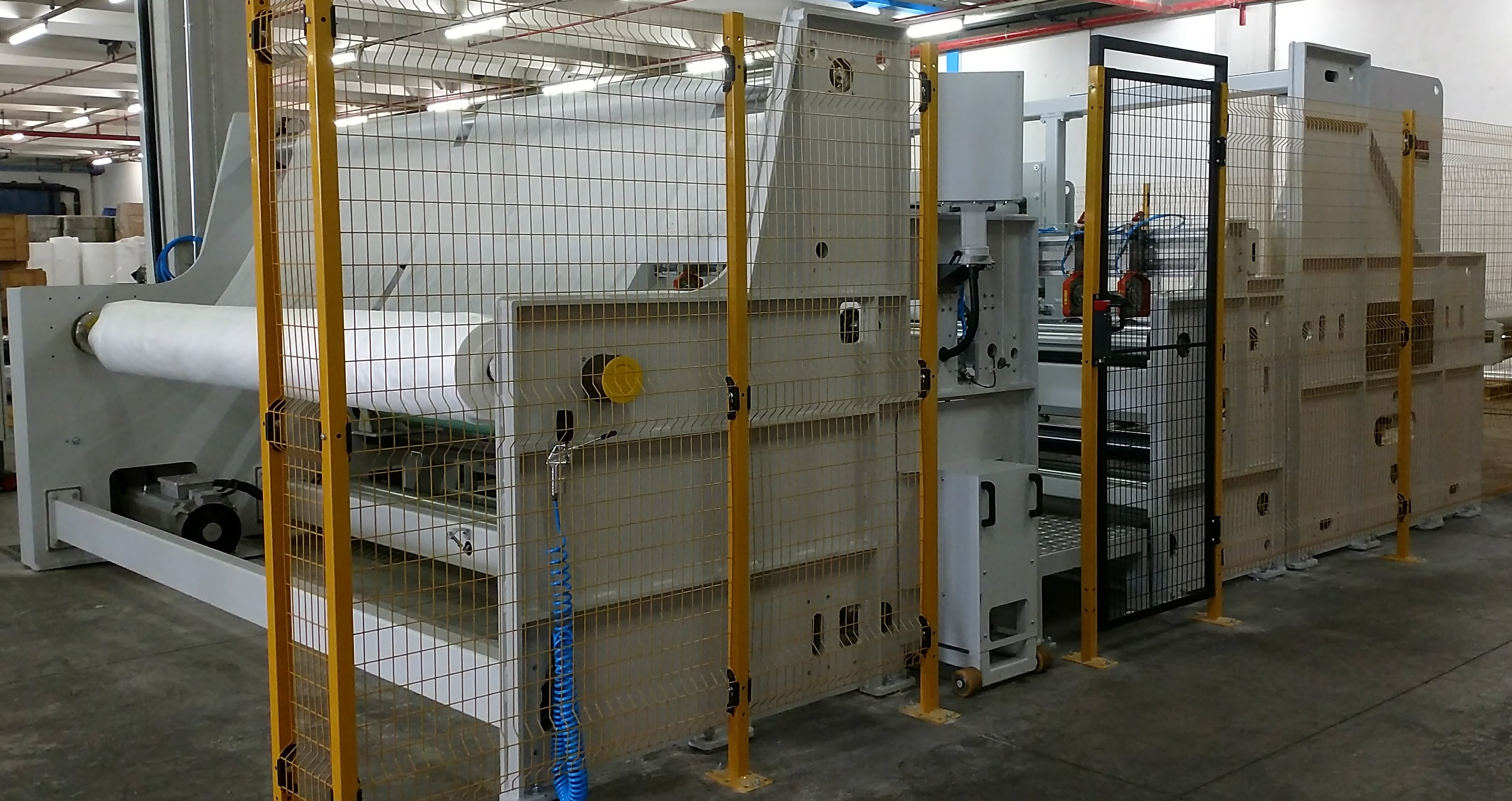

HIGH SPEED SLITTING MACHINE FOR NON-WOVEN

HIGH SPEED SLITTING/REWINDING MACHINE

CHARACTERISTICS AND TECHNICAL DETAILS:

Modular construction with axial unwinding of big capacity and tangential winding.
Motorisation with vector inverters reading the diameter of roll in real time and fabric tension controlled by loading cells.
Preselection and automatic control of the hardness of roll.
Automatic meter counter with pre-slow down and stop at the programmed length.

Working width up to 3.800mm
Variable speed up to 600 mt/min (accordingly with type of fabric).
Mother roll diameter up to 1.800mm
Wound roll up to 1.200mm.
Full automation with PLC.
Minimum size between cuts 25mm with scissor cut.
Expandable shaft available on demand for 2”, 3”, 4”, 5”, 6”.
