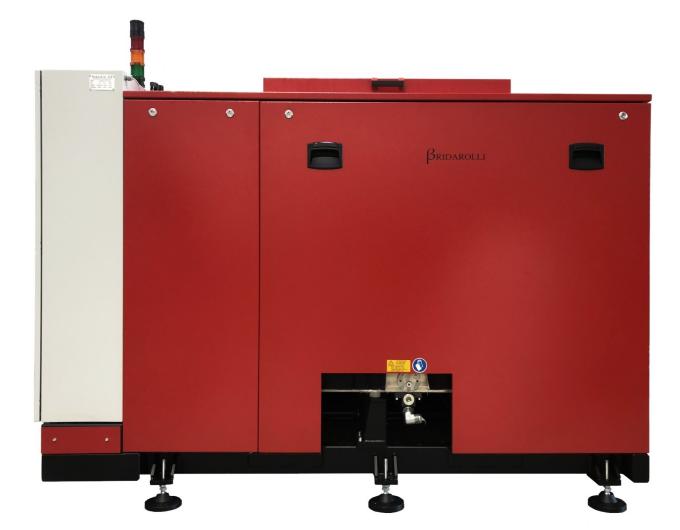

BD range drum melting units have been engineered for melting 200 lt or 20 lt barrel adhesives and are the best solution for reactive polyurethane (PUR) adhesives. These kinds of adhesives, in fact, tend to reticulate in contact with oxygen, but thanks to a teflon-coated aluminium plate covering whole drum contents, just the adhesive in contact with the plate will be melted, while the remaining inside the drum will be preserved entirely.
BD range drum melting units can also be used as premelter for the melting of self-adhesives for the following feeding of a tank unit.**
Available on request the tandem working mode for two drum units, in order to avoid the stop of the productive cycle during drum exchange.
All drum melting units are also equipped with remote assistance.

TYPES OF ADHESIVES:
PUR = reactive polyurethane
UV curable
**PSA for the following use in a tank melting system

TYPES OF PLATES:
FLAT
FINNED
HIGH MELT FINNED

• Teflon-coated drip catcher in order to avoid adhesive leaks during drum exchange
• Siemens touch screen operator panel
• MELT ON DEMAND system: the drum unit melts only the adhesive part in contact with the melting plate

TECHNICAL SPECIFICATIONS:
MODEL PLATE MELTING RATE PUMP RATE
BD 200 LM Flat 20 – 30 kg/h From 48 up to 192 kg/h
BD 200 HM Finned 60 – 80 kg/h From 48 up to 192 kg/h
BD 200 HH High melt finned 100 – 120 kg/h From 48 up to 192 kg/h
BD 20 LM Flat 8 – 10 kg/h From 4,8 up to 38,4 kg/h
BD 20 HM Finned 12 – 16 kg/h From 4,8 up to 38,4 kg/h

Electropneumatic applicators/jetting heads are used for accurately dispensing the hot melt adhesive already melted and delivered from the heated hose.

They can be manufactured for automatic dispensing, via solenoid valves, or for manual dispensing, via related trigger.

Applicators/jetting heads can be supplied complete with modules, nozzles, solenoid valves etc. and can dispense the hot melt adhesive in beads, dots, lines, spray etc.

BE range screw extruders are mainly used for melting hot melt and thermoplastic granules adhesives.
Basically extruders have been engineered in order to face all those adhesives which are difficult to be melted, which require an high operative temperature and are characterized by an high viscosity, compared to all other adhesives normally processed with tank melters.
BE range screw extruders are mainly used with thermoplastics, TPU, polyamides, polyesters and in general with all those adhesives which tend to oxidize.
BE range screw extruders dispose of a particular extrusion screw, designed according to the type of adhesive to be melted.
All extruders are also equipped with remote assistance.

• Special granules feeding system for adhesives requiring a low melting temperature
• Possibility to work in extruder full mouth mode or empty mouth mode
• OPTIONAL: arrangement for degassing system
• Siemens touch screen operator panel

TYPES OF ADHESIVES:
polyester
polyamides
polyethylene
TPU
PU

TECHNICAL SPECIFICATIONS:
MODEL MELTING RATE L/D MOTOR POWER HEATING ZONES
BE 18 6 - 10 kg/h 18/25 2,2 kW 3
BE 30 30 - 40 kg/h 30/30 5,5 kW 3
BE 45 60 - 80 kg/h 45/30 11 kW 3
BE 65 120 - 160 kg/h 65/30 18,5 kW 4
BE 90/25 160 - 200 kg/h 90/25 22,5 kW 4
BE 90/30 300 - 400 kg/h 90/30 30 kW 5
BE 120 500 - 600 kg/h 120/30 75 kW 6
BE 150 600 - 800 kg/h 150/30 110 kW 6

BH range coating heads are used for the application of adhesives where it is necessary the lamination of two or more materials, such as textiles, for the profile wrapping or to produce films.
Their main purpose can be found in the textile, woodworking, automotive, converting and graphic sector.
BH range coating heads are a highly customizable accessory, as their width can be changed according to the manufacturing requirements of the customer.
These applicators differ for their high reliability, as the adhesive coating will always result uniform and constant.
Strengths of our BH range coating heads are the construction material, as it is a particular steel alloy, and the special hardening treatment applied on the lips: as a matter of fact, we have engineered and developed a specific hardening treatment, in order to obtain a long-lasting and performing final product. This special treatment provides to our heads a high quality of the finish compared to standard treatments, for a uniform coating without stripes and a high endurance against abrasion and productive wear, keeping in this way the product like new and preserving its original technical specifications, guaranteeing a hardness up to 70 HRC.

TYPES OF COATING HEADS:
Flat with lips
Extrusion
With rotating bar
Multimodule

TYPES OF COATING WIDTHS:
Fixed coating width
Adjustable coating width

COATING WIDTH ADJUSTMENT:
Manual handwheels
Automatic motors

TYPES OF ADHESIVES:
Each type with a max. viscosity of 2.000.000 cps

TECHNICAL SPECIFICATIONS:
MODEL COATING WIDTH VISCOSITY OPERATIVE TEMP.
LIP From 30 up to 3.000 mm 2.000 – 100.000 cps Up to 250°C
EXTRUSION From 1.000 up to 4.000 mm 100.000 – 2.000.000 cps Up to 250°C
ROTATING BAR From 300 up to 3.000 mm 2.000 – 200.000 cps Up to 250°C
MULTIMODULE From 300 up to 3.000 mm 2.000 – 50.000 cps Up to 200°C
