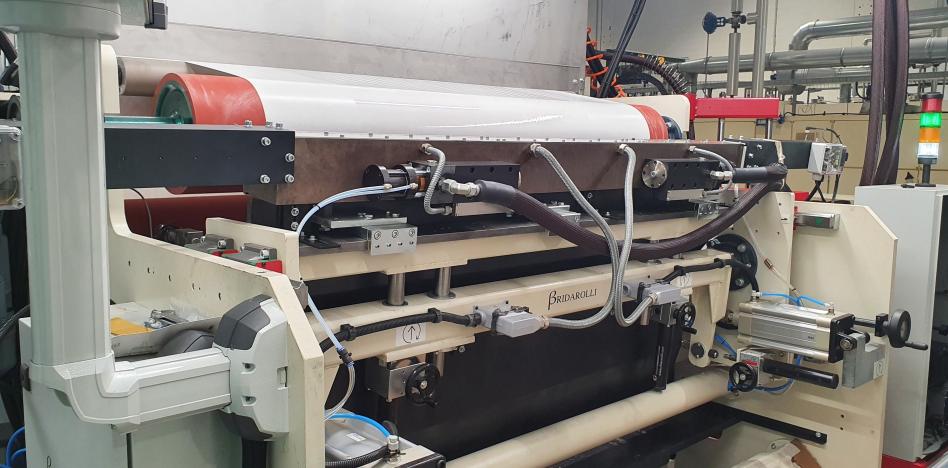

BH range coating heads are used for the application of adhesives where it is necessary the lamination of two or more materials, such as textiles, for the profile wrapping or to produce films.
Their main purpose can be found in the textile, woodworking, automotive, converting and graphic sector.
BH range coating heads are a highly customizable accessory, as their width can be changed according to the manufacturing requirements of the customer.
These applicators differ for their high reliability, as the adhesive coating will always result uniform and constant.
Strengths of our BH range coating heads are the construction material, as it is a particular steel alloy, and the special hardening treatment applied on the lips: as a matter of fact, we have engineered and developed a specific hardening treatment, in order to obtain a long-lasting and performing final product. This special treatment provides to our heads a high quality of the finish compared to standard treatments, for a uniform coating without stripes and a high endurance against abrasion and productive wear, keeping in this way the product like new and preserving its original technical specifications, guaranteeing a hardness up to 70 HRC.

TYPES OF COATING HEADS:
Flat with lips
Extrusion
With rotating bar
Multimodule

TYPES OF COATING WIDTHS:
Fixed coating width
Adjustable coating width

COATING WIDTH ADJUSTMENT:
Manual handwheels
Automatic motors

TYPES OF ADHESIVES:
Each type with a max. viscosity of 2.000.000 cps

TECHNICAL SPECIFICATIONS:
MODEL                 COATING WIDTH                    VISCOSITY                       OPERATIVE TEMP.
LIP                         From 30 up to 3.000 mm         2.000 – 100.000 cps          Up to 250°C
EXTRUSION         From 1.000 up to 4.000 mm    100.000 – 2.000.000 cps    Up to 250°C
ROTATING BAR    From 300 up to 3.000 mm       2.000 – 200.000 cps          Up to 250°C
MULTIMODULE     From 300 up to 3.000 mm       2.000 – 50.000 cps            Up to 200°C
