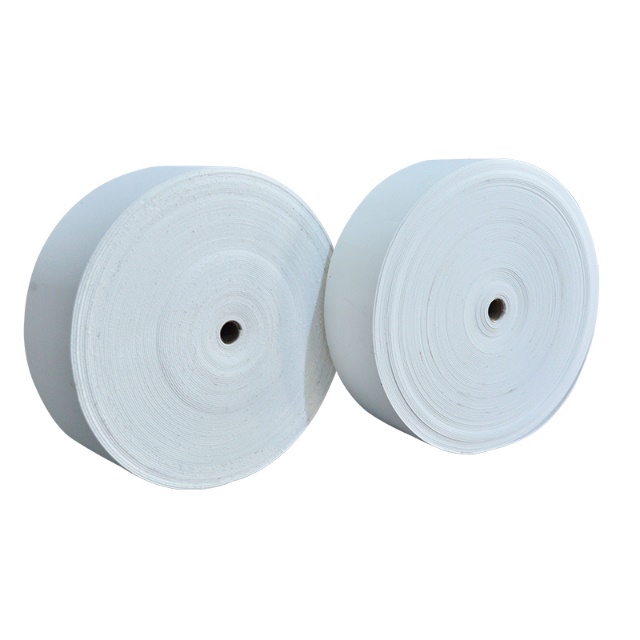

YANPAI™ belt fabric are mainly below 4 types:
1. Dewatering Belt (Polyester dehydrates the net product): With fine and even meshes, high breaking strength,it is widely used in printing, mining sellection,and food industry, etc
2. Ployest Dry Belt for Drying: for paper making andPulp concentration
3. Polyester Forming Fabrics: for pulp, board, writing paper printing and tissue paper industry.
4. Polyester Pulping Belt: usd in Vacuum belt pulping machine and drum belt pulping machine.

Yanpai Belts are:
Large treatment capacity
Uniform sludge feeding
High efficiency dehydration
Easy maintenance
Light weight and compact Capacity range: 2 -25 m3/hr

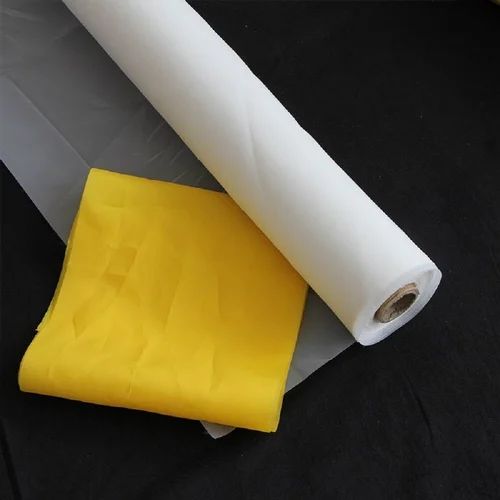

YANPAI™ mesh fabric
Material available: polyamide; polyester
Certificate: ISO
Material:
Nylon 1010, nylon66, polyamide and polyester fiber.
Usage:
Screening and filtering of pharmacy, chemical industry, dyestuff, fishing and foodstuff
Mesh opening:
40 microns -1500 microns

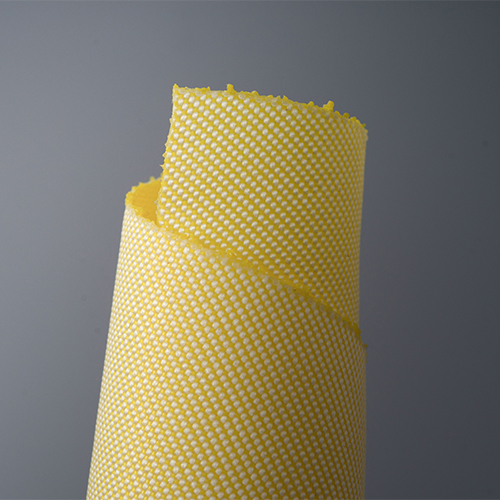

YANPAI™ Airslide fabrics can be used wherever bulk materials are pneumatically
conveyed.
The main industries served include the Cement industry (raw cement powder and clinker
dust), Aluminum, Chalk and Gypsum industries, in power plants (fly ash discharge) ,
Carbon dust, pharmaceutical , Flour Products, paper for cardboard industries and
chemical industries, etc.

THE MATERIAL AVAILABLE
Polyester spun yarn
Polyester Multifilament yarn
Meta-Aramid yarn
Cotton yarn
Antistatic fiber
etc.
TECHNICAL SPECICATIONS
Temperature -60C to 240C
Thickness 3mm to 10 mm
Weight 2500gsm to 6800gsm
Pressure loss at 400m3/h/m2( mmWg) 240 to 1800
Standard length up to 800m
Tensile strength
(N/cm)
warp 4000 to 10000
weft 2500 to 8000

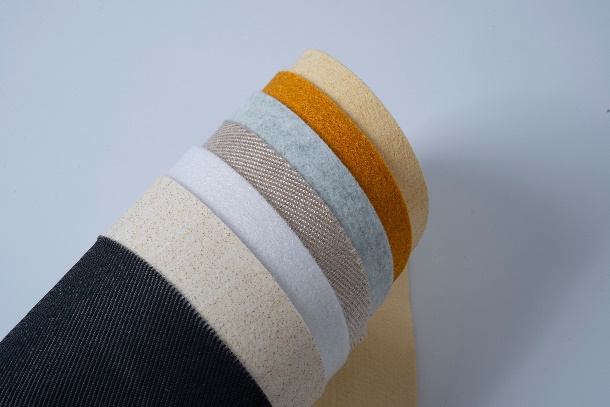

YANPAI™ Needle punched felt are widely used for liquid and solid separation, gas filtration and dust collection etc.

Application:
Liquid filtration; Blast furnace gas; Cement plants dust collection, metallurgy; Chemical plant; power generation dedust system; Architecture, etc

Materials availabel:
PP, Polyester, Acrylic, Aramid, Fiberglass, PPS, P84, PTFE
Treatment avaialble:Singed, glazed, heat set, anti-adhesive, anti-static, anti-acid, water and oil repellent; inflame retardant, PTFE dipping, PTFE membrane, etc

Weight: > 300 gsm
Up to your required applications, we produce.
