FIAB is creating and developed high frequency welding machines for over 70 years. Solid reputation as specialists in advanced technical solutions is a result of our great know – how.
Due to that we have developed a wide range of machines for various applications that are now referred to as fixed standard in high frequency welding industry. We have also designed and manufactured a great number of welding machines built in accordance with specific customer’s needs.
FIAB machines can be surely defined as safe, reliable and fulfilling strict quality requirements.
Such a well-designed product affects the working manner of our customers, making it more efficient and cost effective.
FIAB is servicing all types of machines HF to keep them in the best condition and its efficiency, safety and durability. We offer our services 24 hours a day, 7 days a week, to meet your expectations.
FIAB service offers help via e-mail, by phone or at your place, depending on your needs.
Our product groups
- Technology and Processes
Our application areas / Solutions
Keywords
- PVC joining
- Welders
- High frequency welding machines
- FIAB
- FIABmachines
Our Products

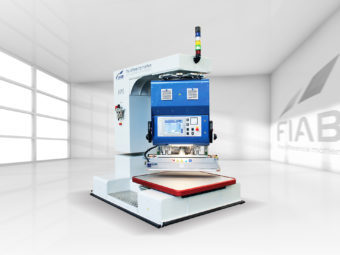

Stationary Welders FIAB 900CLS
The greatest advantage of FIAB 900CLS is big storage area, that allows for comfortable work with large material pieces. Transport wheels facilitates the movement of machine.
High frequency welder FIAB 900CLS
FIAB 900CLS is versatile high frequency welding machine with up to 1100 mm tool length. High speed production along with high welding precision.
Available supplements:
- weld joint tape application,
- foot pedal.
FIAB 900CLS versions
FIAB 910CLS
output power - 10 kW
max tool length - 1100 mm
FIAB 913CLS
output power - 13 kW
max tool length - 1100 mm
FIAB 917CLS
output power - 17 kW
max tool length - 1100 mm
Voltage 3 x 400 V/ 50 Hz
Operating frequency 27,12 MHz +/- 0,6%
Cooling oil
Pressure 1920 kg
Anti-flash FIAB Security System
Air supply max 6 Bar
Max air consumption 200 l/min
Max welding surface 550 cm2
Touch panel SIEMENS SIMATIC
Control system SIEMENS
Machine weight 2000 kg
The greatest distance between the axis of electrode and casing 1680 mm
Height of storage area 1300 mm
Table height (from the ground) 500 mm

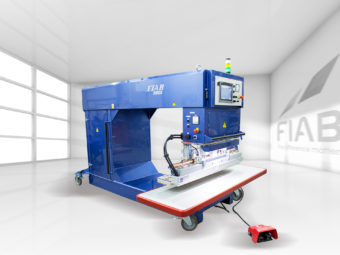

FIAB 860
This model is the most popular welding machine among smaller companies to start their business with HF welding.
It is available as a stationary and mobile unit in series with a power of 8kW. It is an excellent work tool that increases the efficiency of the production of tarpaulins, e.g. oil dams, tents, water tanks.
- fast, efficient and quieter operation,
- tool holder from 700mm to 1250mm,
- easy upgrade from stationary to movable machine with track later possible.
TECHNICAL DATA:
- OUTPUT POWER 8kW
- VOLTAGE 3x400V / 50Hz
- OPERATING FREQUENCY 27.12 MHZ +/- 0.6%
- COOLING air / oil
- PRESS PRESSURE 9 bar 700 kg
- AIR INLET min 6 bar
- MAXIMUM AIR CONSUMPTION 800cm3 / cycle
- TOUCH PANEL Delta
- CONTROL SYSTEM Beckhoff
- MACHINE WEIGHT approx. 700 kg
- MAXIMUM ELECTRODE LENGTH 1250mm
FIAB HPS Q-drive
FIAB HPS Q-drive is a unique welding machine model. It has a rotating welding head. The machine is operated by the remote control from a distance. A great advantage in comparison with the basic FIAB HPS model is an application of improved driving system in FIAB HPS Q-drive - four rotary wheels increase the mobility. The machine can move in any direction on any paved surface. Also, smaller dimensions of the welding machine enable to use it in confined spaces. It's a perfect solution for welding large-sized products at multiple locations. Lower working table is more comfortable during material handling. Operator can travel with the machine by standing on the platform.
We provide numerous additional facilities for FIAB machines to develop the functionality and work comfort, such as lasers to make fabrics handling easy, vacuum table system, weld joint tape application, remote control, keder system and many more. It is also possible to upgrade the machine up to your specific needs later on.
High frequency welding machine FIAB HPS Q-drive
Many various electrodes are available within FIAB HPS Q-drive: lamellas electrode, curve-shaped for windows welding, soft electrodes, tunnel electrodes, personalized (with logo).
The machine is strongly recommended for:
- Halls
- Tents
- Tensile architecture & membranes
- Large structures
- Water & gas tanks.
FIAB HPS Q-drive versions:
FIAB 13 HPS Q-drive
output power - 13 kW
welding surface - 520 cm2
max tool length - 1100 mm
fuse - 50 A
FIAB 17 HPS Q-drive
output power - 17 kW
welding surface - 680 cm2
max tool length - 1100 mm
fuse - 50 A
FIAB 22 HPS Q-drive
output power - 22 kW
welding surface - 880 cm2
max tool length - 1100 mm
fuse - 63 A
Voltage 3 x 400 V / 50 Hz
Operating frequency 27,12 MHz +- 0,6%
Cooling oil
Pressure (kg/cm2) 1920 kg/cm2
Anti-flash FIAB Security System
Air supply max 6 bar
Max air consumption 200 l/min
Touch panel Pro-face SP 5000
Control system SIEMENS / OMRON
Machine weight 2300 kg

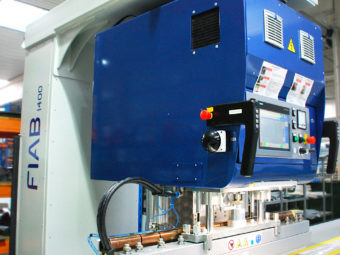

FIAB 1400
FIAB 1400 is our standard gantry machine. FIAB 1400 was designed for various branches to manufacture large - size products that require straight welds.
The main feature of FIAB 1400 is rotating head that allows to perform welds in range of 180 degrees.
This facility minimizes material handling while forming complex welds.
We provide numerous additional facilities for FIAB machines to develop the functionality and work comfort, such as lasers to make fabrics handling easy, vacuum table system, weld joint tape application, remote control, keder system and many more. It is also possible to upgrade the machine up to your specific needs later on.
HF welder FIAB 1400
Many various electrodes are available within FIAB 1400: lamellas electrode, curve-shaped for windows welding, soft electrodes, tunnel electrodes, personalized (with logo).
The machine is strongly recommended for:
- halls
- tarpaulins
- tents
- water & gas tanks
- tensile architecture & membranes.
FIAB 1400 versions
FIAB 1413
output power - 13kW
welding surface - 520 cm2
max tool length - 1300 mm
fuse - 50 A
FIAB 1417
output power - 17kW
welding surface - 680 cm2
max tool length - 1300 mm
fuse - 50 A
FIAB 1422
output power - 22kW
welding surface - 880 cm2
max tool length - 1500 mm
fuse - 63 A
FIAB 1426
output power - 26kW
welding surface - 1040 cm2
max tool length - 1500 mm
fuse - 63 A
Output power 3 - 26 kW
Fuse 25 - 32 A
Voltage 3 x 400 V / 50 Hz
Operating frequency 27,12 MHz +- 0,6%
Cooling oil
Pressure (kg/cm2) 1920 kg/cm2
Anti-flash FIAB Security System
Air supply max 7 bar
Max tool length 1500 mm
Max welding surface 750cm2
Max air consumption 220 l/min
Touch panel SIEMENS SIMATIC
Control system SIEMENS
Machine weight 4400 kg
Table weight per unit length (movable) 120 kg/2m
Table weight per unit length (stationary) 35 kg/2m

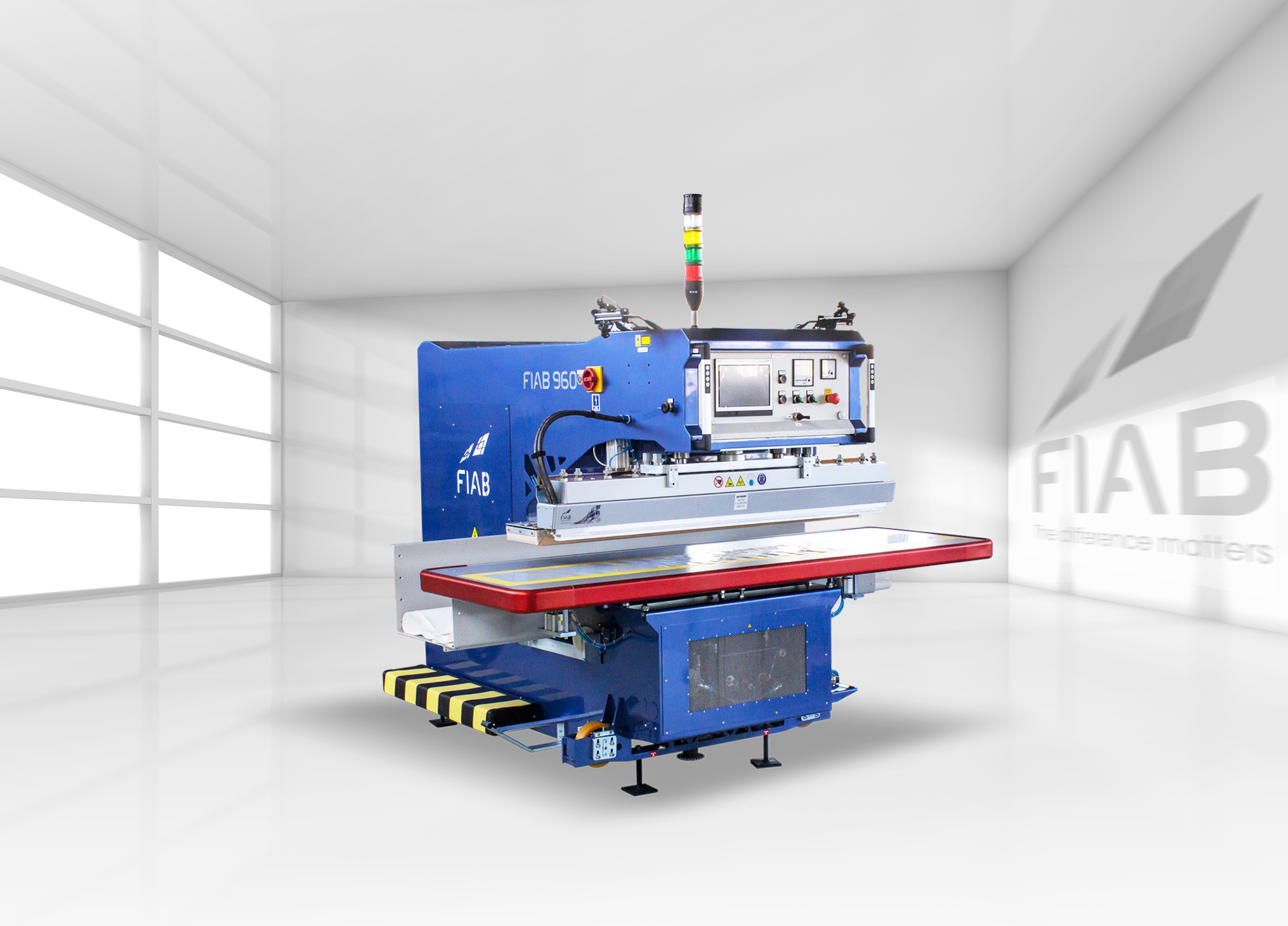

FIAB 960
The FIAB 960 high frequency welder is a modernized model FIAB 900, its design has been "slimmed" and equipped with a new type of servo drive, which improves the dynamics of its work.
We provide numerous additional facilities for FIAB machines to develop the functionality and work comfort, such as lasers to make fabrics handling easy, vacuum table system, weld joint tape application, remote control, keder system, side platforms and many more. It is also possible to upgrade the machine up to your specific needs later on.
Many various electrodes are available within FIAB 900: lamellas electrode, curve-shaped for windows welding, soft electrodes, tunnel electrodes, personalized (with logo).
The machine is strongly recommended for:
- Tarpaulins
- Halls
- Covers
- Furniture
- Tents
- Signs and banners
- Stretched ceilings
- Water & gas tanks
- Oil booms.
