• Fabric rolls wrapping with nylon film, side sealing with thermal welding method,
• 80-100 rolls/hour packing capacity
• Packaged roll is passed through shrink unit for close-fitting wrapping (optional)
• Multi-loading from roll machine to conveyors and automatic pinpoint multi-dispatching to carriages,
• Three different nylon film widths of roll for changing system according to different roll widths,
• Specific solutions for packing of big diameter rolls,
• All the electric, electronic and mechanic items of the machine are guaranteed for 12 (twelve) months.

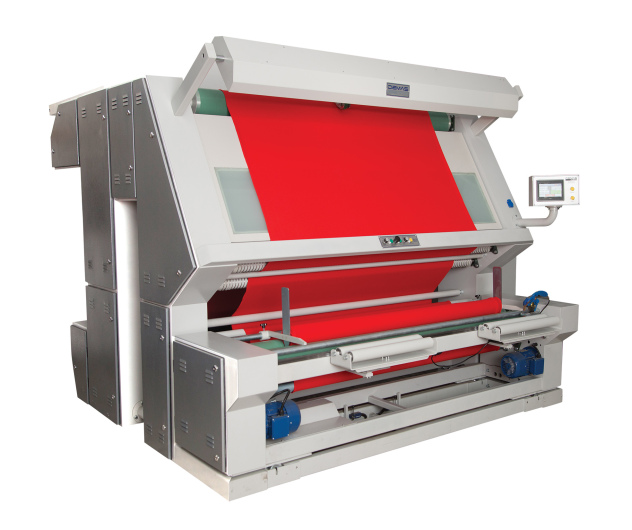

Full Lycra open-width finished knitted fabric is transferred thanks to conveyor system which has precise distance sensors and then it is inspected with saving unshrinkabilty value finally rolled without tension.

Automatic stop at the end of the fabric and precise meter measurement between (±) 0.5% tolerance interval.

Computer supported Quality Control System and Optimization System. (Option)

Weight measurement of roll and Barcode printer system for wrapped roll.

Fabric width alteration is followed and saved by aid of width measurement system during inspectional process. (Option)

Cross cutting with motorized blade at the end of the fabric roll. (Option)

Wrapping faabric roll with nylon film and closing edges by insufflate hot air.

Automatic Barcode labelling system on to the fabric rolls.

• This machine is suitable for woven, tulle, organza, embroidery, voile jazquard etc. fabric
• It is the double folded rolling machine
• It is the double folding machine (book form)
• It is the tweice double folding machine (book form)
• Fabric inlet through same place for double and four folds
• Photocell adjustment system according to the width of fabric prior to double and four folding
• For proper folding, special system for thin and sensetive fabric
• Well-arranged edges by photocell control for twice double folding and double folding
• Electronically special tension system
• Hard or loose folding feature, due to torque controlled, from beginning of the roll to end of the roll
• Adjustable electronic calibrated counter meter system adjustable speed control.

• PLC CONTROLLED ON TOUCH SCREEN
• Packing Capacity 50-60 rolls/hour according to the operator's working speed with the machine.
• With the help of sensored automatic diameter measurement system, can be measured the diameter of the roll in the entrance by sensors and nylon film waste is reduced according to the roll diameter.
• It is suitable for packing Min.150mm Max. 350mm fabric rolls diameter.
• Edge closing of the roll is done by insufflating the hot air at the both two side of the roll and puckers the nylon film. When the roll is rotating on the cylinder hot-air blowers approach near both side of the roll and the nylons are heated properly and then they are puckered.
• Puckered nylon film is pressed towards to frontal side of the roll with the plates.

Hot air blowers is used to close the roll edge. Edge closing operation is done by insufflates the air at the both two side of the roll and puckers the nylon film and then presses them (the puckered nylon) to frontal area of the roll. Hot-air insufflate is obtained by the fans which are placed on the heat source.

• When the roll is rotated on the cylinder hot-air blowers approach near both side of the roll and the nylons are heated properly and then they are puckered.
• Puckered nylon film is pressed towards to frontal side of the roll with the plates.
