Über uns
TRIMA, a company of the group Dietze+Schell
TRIMA designs, manufactures, supports and services a broad range of fully automatic equipment for web material R2R (Roll to Roll) processing, specifically glass-based mats, tissues, nonwoven materials, woven technical textiles, multiaxial and multi-layer materials. We have extensive experience and material processing expertise that ranges from the most sensitive fabrics including nanomaterial to very rigid and high-density webs at both high and low speed ranges.
Key words:
glass, carbon, aramid, fabrics, web, fiber, nonwoven, woven, technical textile, winder, unwinder, rewinder, formatting, slitting, CSM, central, surface, calander, jumbo, veil, tissue, filter, chopper, creel,
Industry Focus:
- TRIMA spol. s r.o. operates in the glass and textile industries, providing machinery for winding, rewinding, and other specialized purposes.
Company Values:
- The company emphasizes high-quality products, excellent customer service and support, and simple operation and control of their machines.
- They aim to provide customized solutions tailored to customer requirements.
Customer Characteristics:
- The ideal customers are likely businesses within the glass and textile industries that require machinery for winding and rewinding processes.
- These businesses would value quality, reliability, and ease of use in the machinery they purchase.
- Customers looking for customized solutions and responsive customer service would align well with TRIMA’s offerings.
Unsere Produktgruppen
- Technology and Processes
- Sonstige Maschinen und Geräte
- Technologie, Verfahren, Zubehör: allgemein
Unsere Anwendungsbereiche / Lösungen
Keywords
- WINDER
- REWINDER
- UNWINDER
- JUMBO
- GLASS
Unsere Produkte
Jumbo Winder/Rewinder

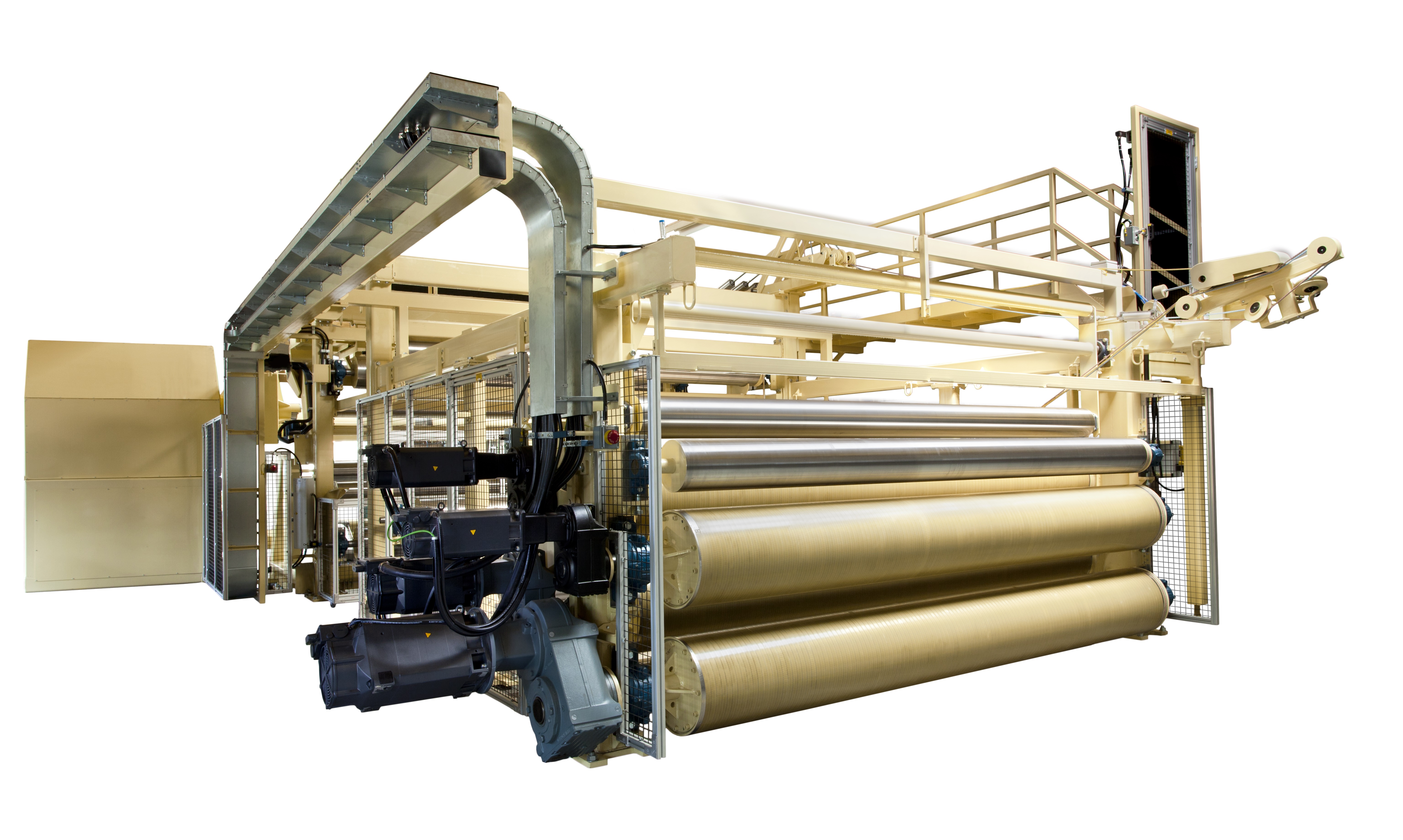

JUMBO & SUPER JUMBO PROCESS LINE WINDERS
- Master roll winder
- Web width up to 5,5 M (216”)
- Maximum roll diameter 2.5M (98”)
- Maximum speed 500M/Min. (1640 FPM)
- Full suite of automated features
CSM and tissue winder
For take-up winding of chopped strand mat and is located at the end of a CSM (chopped strand mat) line. Designed according to requirements of our customers – from a basic winder layout up to a fully automatic winder layout including package and shaft handling section. The plant can be equipped with arbitrary features: fully automatic feeding in start-up, trim cutter, fun and suction ends, fast and smooth width changes, straight edges for mat roll, in-line crosscutting and a sampling option.
THD Winder
The winder is designed especially for winding high density fabric packages, woven from glass fibre. A high density and highly compact package build-up is ensured by the combination of three winding principles: Central winding by the driven winding mandrel in the package axis plus surface winding by the driving rolls on the package surface plus additional compression by a pressing roll.
The winder should be installed directly downstream from the weaving loom
Fully Automatic Rewinder
- For the production of glass fibre fabrics end user rolls
- High production flexibility
- Accurate edge guiding
- Integrated length cutting device
- Adhesive applicator used for fabrics sticking on the core
- Automatic core feeding
- Print labelling on finished rolls
- Automatic feeding of the labels under the last package by friction feeder
- Ink jet printer for product identification applied on the core
- Automatic handling of finished rolls
- control system adaptable for remote recipe handling and supervising

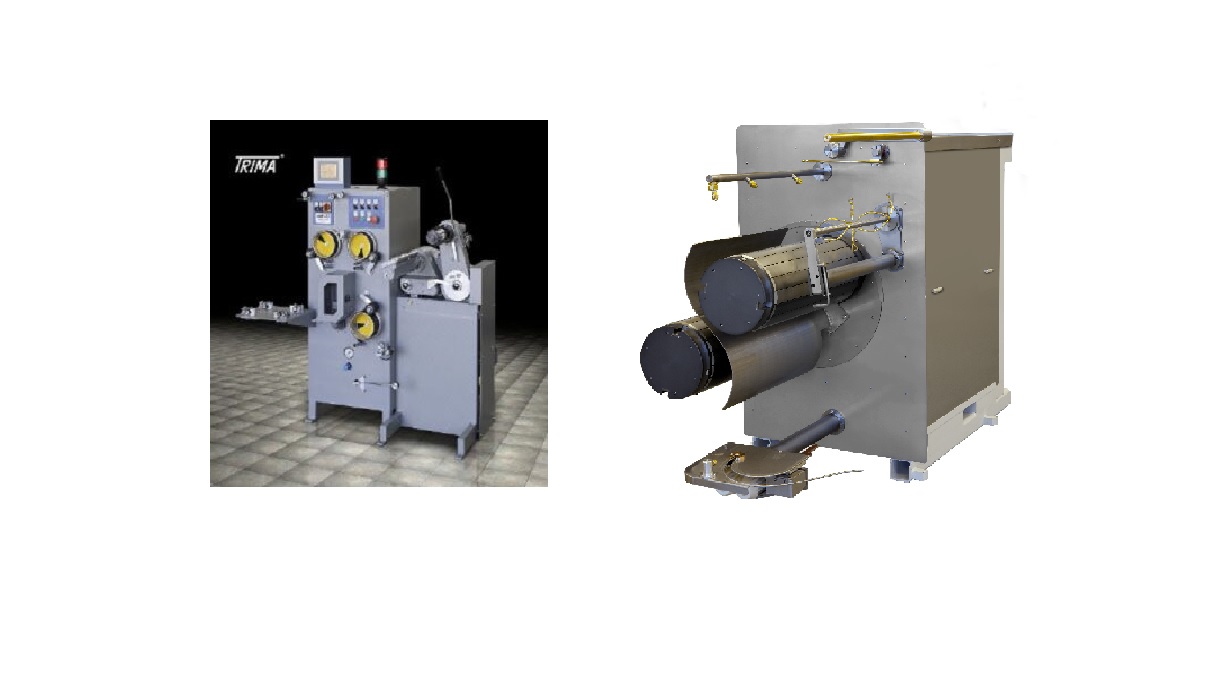

Cake Winding and Texturizing Machines
Air texturizing machines - DST - 60/DST - 90/DST - 90 FB
The group of texturizing machines is used for air texturizing glass fiber or a mixture of fibers (glass / Kevlar) in yarns up to a maximum tex of 9600.
DST – 37X cake winding machine
The DST 37X winder is used for continuous winding of glass or basalt fibers. The fibers are wound in a saddle or trapezoidal shape on a plastic or paper tube.
