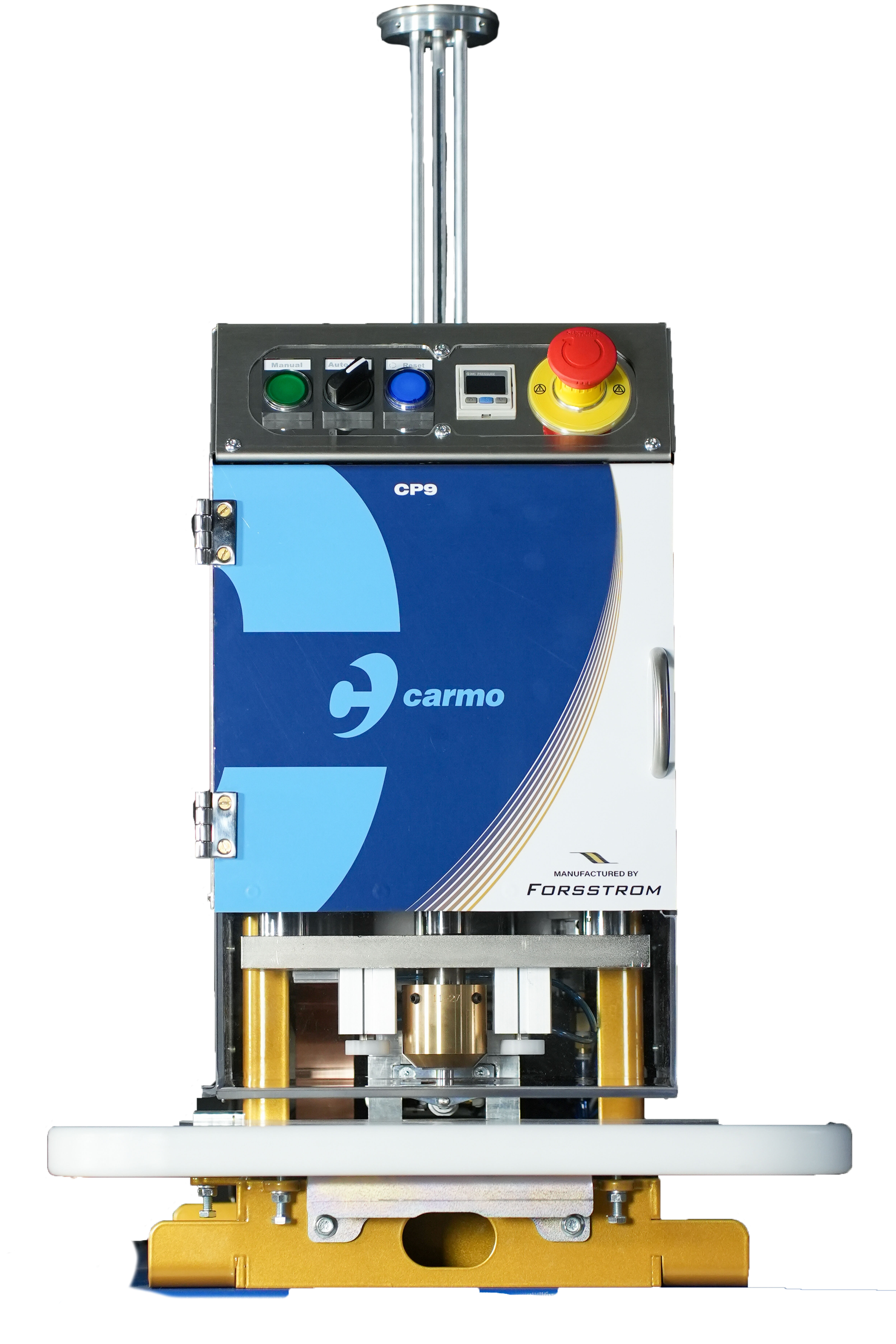

The CP9 is a single-sided punching and welding of eyelets.

It stands as an advanced high-frequency (HF) welding machine designed to streamline your production process by integrating setting, punching, and welding into a single, seamless operation.

Two Forsstrom x Carmo CP9 will be exhibited at Techtextil.

Key features:

• Single-Sided Efficiency: The CP9 revolutionizes your manufacturing process by swiftly executing the punching and welding of eyelets on a single side, eliminating the need for multiple steps.
• Streamlined Operation: Enjoy the convenience of an all-in-one process where setting, punching, and welding occur simultaneously, ensuring a faster turnaround time for your products.
• Consistent Quality: Our machine guarantees stable and uniform high-quality welds, ensuring the creation of durable products with an extended shelf life, meeting the stringent demands of your industry.
• Ideal for High-Volume Production: Tailored for high-volume serial production, the CP9 is optimized for automatic eyelet feed, maximizing productivity while maintaining an extremely short cycle time.

Advantages:

• Reliability: Experience a reliable machine that consistently delivers precise and robust welds, ensuring the longevity of your products.
• Efficiency: Increase efficiency in your manufacturing process by minimizing operational steps and reducing production time.
• Versatility: Adapt to varying production demands with ease, thanks to the CP9’s adaptability and suitability for different production scales.

Forsstrom MG-Flex 300 is a compact HF-welding machine with a welding head that can rotate 180°.

The 180° rotation is a helpful tool in the HF-welding process and it makes it easy for the operators to join heavy materials.

To increase the manufacturing efficiency, MG-Flex has several unique features: a Z-guide for controlling overlaps up to 80 mm in width, increased lift height (daylight) of welding head 190 mm, and more. With its great flexibility, Forsstrom MG-Flex creates new production possibilities.

• Movable on wheels for joining large and heavy panels
• Manual 180° rotation of machine head
• Table with Z-guide enabling large overlap
• 190 mm daylight

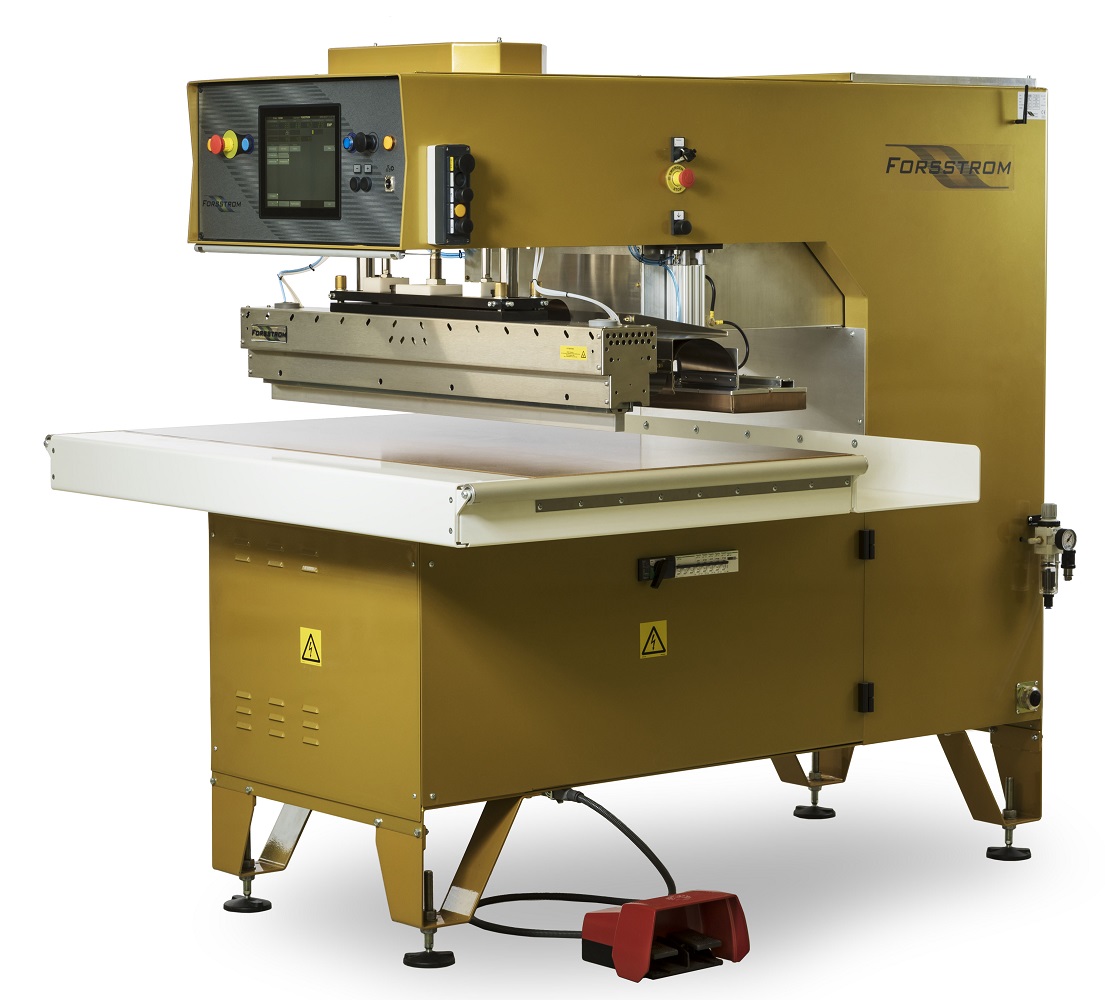

Forsstrom TX-Mega is a larger version of the popular HF-welding machine TX and can weld up to 450 mm in width.

A Forsstrom TX-Mega will be exhibited at Techtextil.

The powerful TX-Mega (10-20 kW) has been developed to weld volume products and can weld an area of up to 800 cm².

TX-Mega has a wider welding table and extra large space behind the electrode compared to the sister machine TX (880 mm compared to TX’s 750 mm).

Additionally, the TX-Mega has larger space between the electrode holder and the earth electrode.

The machine can be used as a stand-alone, or as a complement to a larger system of welding machines.

• Powerful machine with 800 cm² weld area at 20 kW
• Weldable tool width is 450 mm
• 2700 kg maximum pressure

Forsstrom has developed a small 3 kW HF-generator with built-in control system for controlling welding parameters such as time and power. The FG 120 is suitable as a stand-alone unit for eyelet welding. The generator is also ideal for inline HF-production of medical and packaging applications.

Machine options:

• Adaptation to external HF-press such as a Carmo eyelet press or Forsstrom's table press TP 120
• Movable on wheels

A Forsstrom FG 120 with two CP9 will be exhibited at Techtextil.

The generator on the picture is used with the table press TP. The TP is an accessory available for the FG 120 and has a maximum electrode length of 300 mm. The TP 120 is ideal for small detailed welds, such as reinforcement band around a large structure.

Forsstrom has several travelling machine models, such as the TDW machine (5-25 kW), which is one of our most popular machines. There are different ver-sions of the TDW, such as the TDW-Mega (15-25 kW), with which it is possible to weld a 400 mm wide weld in comparison to the standard TDW’s maximum welding width of 200 mm.
Another version is the TDW-Ultra (16-30 kW) with a welding width of up to 600 mm.
All TDW-models travel over a table of selected length and are equipped with software, accessories and tools that help adapt the machine for different end products and various ways of working.

With its fast machine movement, the ability to pre-program welding cycles and the ability to switch the machine over to automatic welding, the TDW-models are suitable for large products with long, straight welds, such as tents, truck covers and billboards, as well as large-scale production.

One very useful accessory is the impulse welding unit, which is a new accessory to the Forsstrom ma-chines and with it, it’s possible to weld materials that otherwise are not HF-weldable.

A Forsstrom TDW-Mega welding machine equipped with an impulse welding unit will be exhibited at Techtextil.

• Large travelling machine
• Popular and versatile classic
• Efficient large-scale manufacturing
