ETF Machinefabriek B.V.

ETF Versatile rolling machine M 5728

ETF Versatile rolling machine M 5728

ETF Machinefabriek B.V.
Anbieter-ProfilAlle Produkte
Anbieter kontaktierenAnsprechpersonen

Beschreibung

Straight and tight large rolls, no matter what material

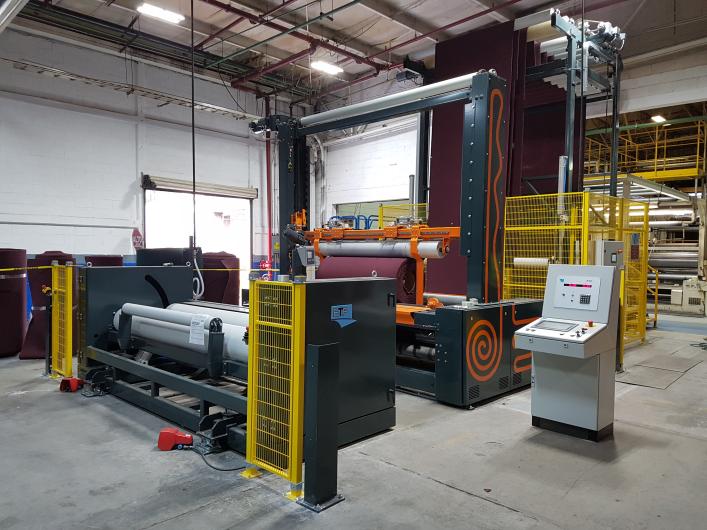

The ETF versatile rolling machine ensures straight and tightly rolled rolls. It can be installed immediately at the end of a continuous or intermittent production line. Due to its modu-lar design it can easily be (retro)fitted with e.g. a special cen-tral drive system or push roller to also roll artificial grass and nonwovens to very tight rolls.




Features & options

  • Electronic (optical) length measuring device M 2620 / M 2622
  • Single direction fast cross cutter M 2410
  • Slitting unit(s) M 2422
  • Crush slitter(s) M 3021
  • Electronically width guided
  • Adjustable main rollers for several tube diametres
  • Automatic tube dispenser
  • Gluing unit in order to start the rolling process automatically
  • Manually or pneumatically operated side guiders
  • Pneumatic roll ejection



Mehr von uns

Unsere WebsiteUnser Produkt

Mehr Produkte von ETF Machinefabriek B.V.

ETF End of non-woven production line M 3300

Smart roll preparation

The ETF end of a non-woven production line is an extensive installation that optimises your preparation of wrapped customer rolls. It is a smart combination of accumulation, inspection, cutting, and rolling; all controlled through one common plc-program which ensures maximum flexibility.




Features & options

  • Width guided edge cutting system M 2450
  • Edge choppers M 2460 to save volume of waste
  • Accumulator M 5150 for temporarily carpet storage
  • Pneumatically controlled dancing roller for excellent tension control
  • Inspection section, controlled independent of the remaining line.
  • Guiding frame for track position control
  • Rolling machine M 5720 or M 5728
  • Automatic tube feed ( also for multiple width tubes)
  • Glue system for automatic adhesion of the material to the core or to close the roll
  • Offline automatic wrapping system
  • Automatic roll transport system M 5900
