Smart roll preparation

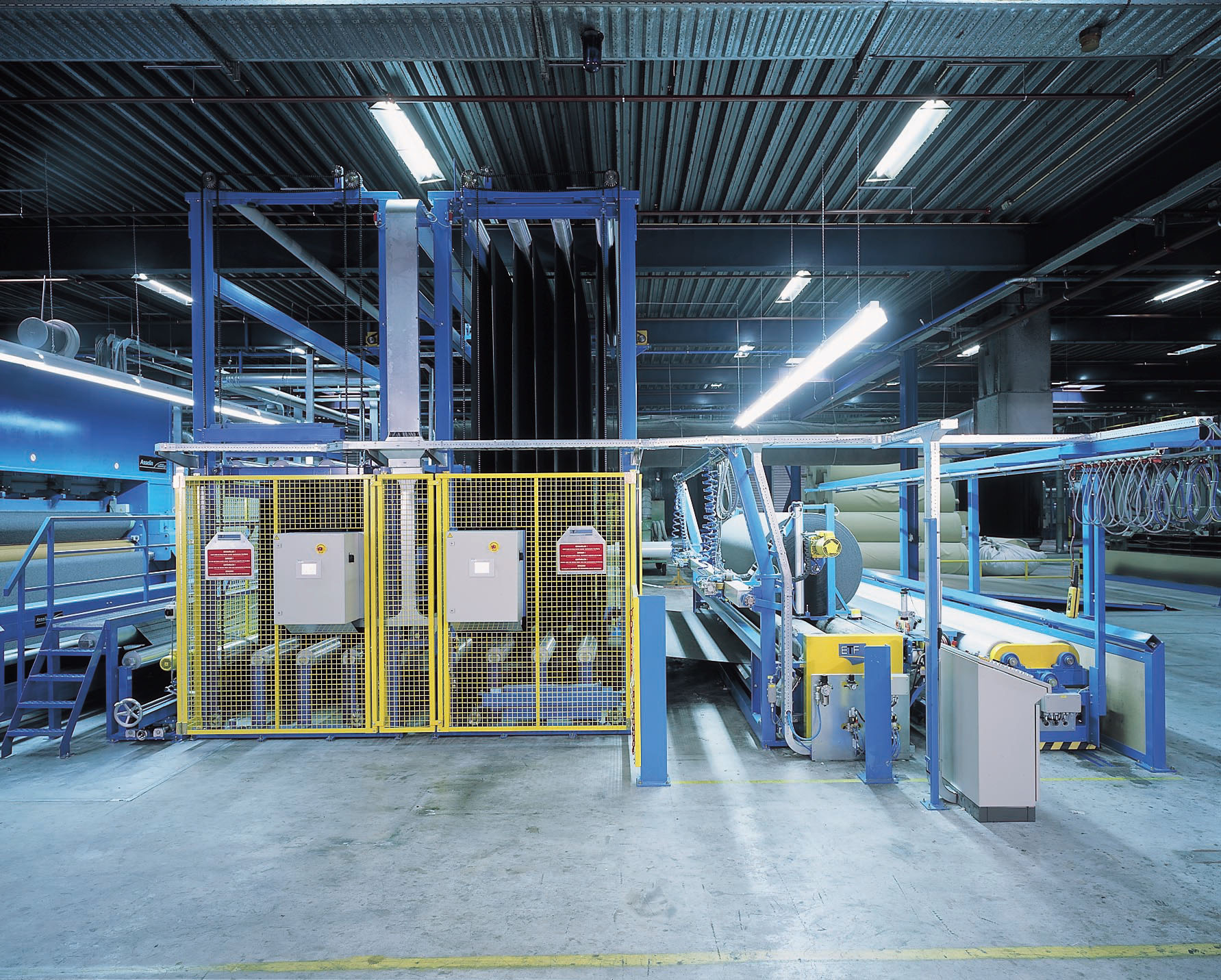

The ETF end of a non-woven production line is an extensive installation that optimises your preparation of wrapped customer rolls. It is a smart combination of accumulation, inspection, cutting, and rolling; all controlled through one common plc-program which ensures maximum flexibility.

Features & options

• Width guided edge cutting system M 2450
• Edge choppers M 2460 to save volume of waste
• Accumulator M 5150 for temporarily carpet storage
• Pneumatically controlled dancing roller for excellent tension control
• Inspection section, controlled independent of the remaining line.
• Guiding frame for track position control
• Rolling machine M 5720 or M 5728
• Automatic tube feed ( also for multiple width tubes)
• Glue system for automatic adhesion of the material to the core or to close the roll
• Offline automatic wrapping system

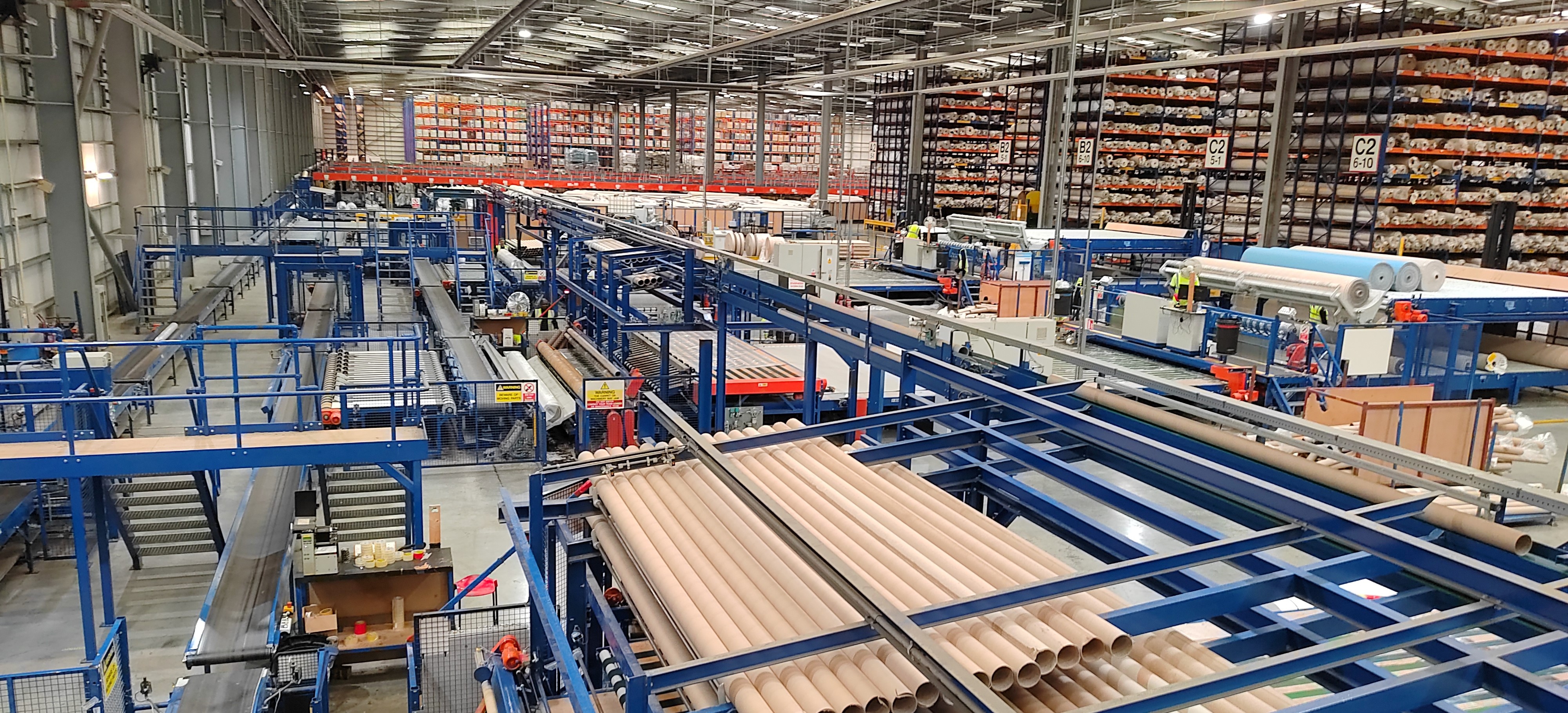

• Automatic roll transport system M 5900

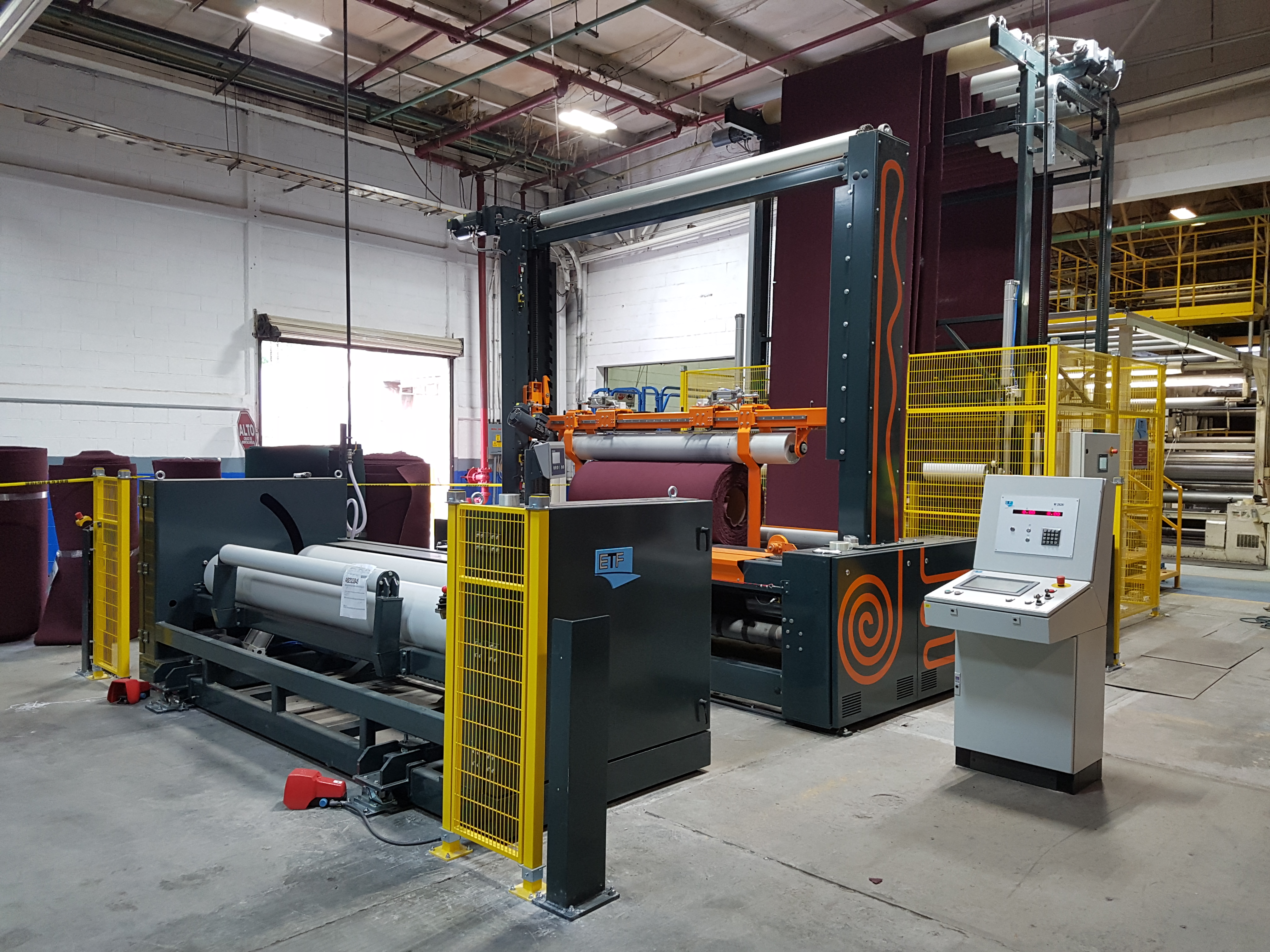

Straight and tight large rolls, no matter what material

The ETF versatile rolling machine ensures straight and tightly rolled rolls. It can be installed immediately at the end of a continuous or intermittent production line. Due to its modu-lar design it can easily be (retro)fitted with e.g. a special cen-tral drive system or push roller to also roll artificial grass and nonwovens to very tight rolls.

Features & options

• Electronic (optical) length measuring device M 2620 / M 2622
• Single direction fast cross cutter M 2410
• Slitting unit(s) M 2422
• Crush slitter(s) M 3021
• Electronically width guided
• Adjustable main rollers for several tube diametres
• Automatic tube dispenser
• Gluing unit in order to start the rolling process automatically
• Manually or pneumatically operated side guiders
• Pneumatic roll ejection
