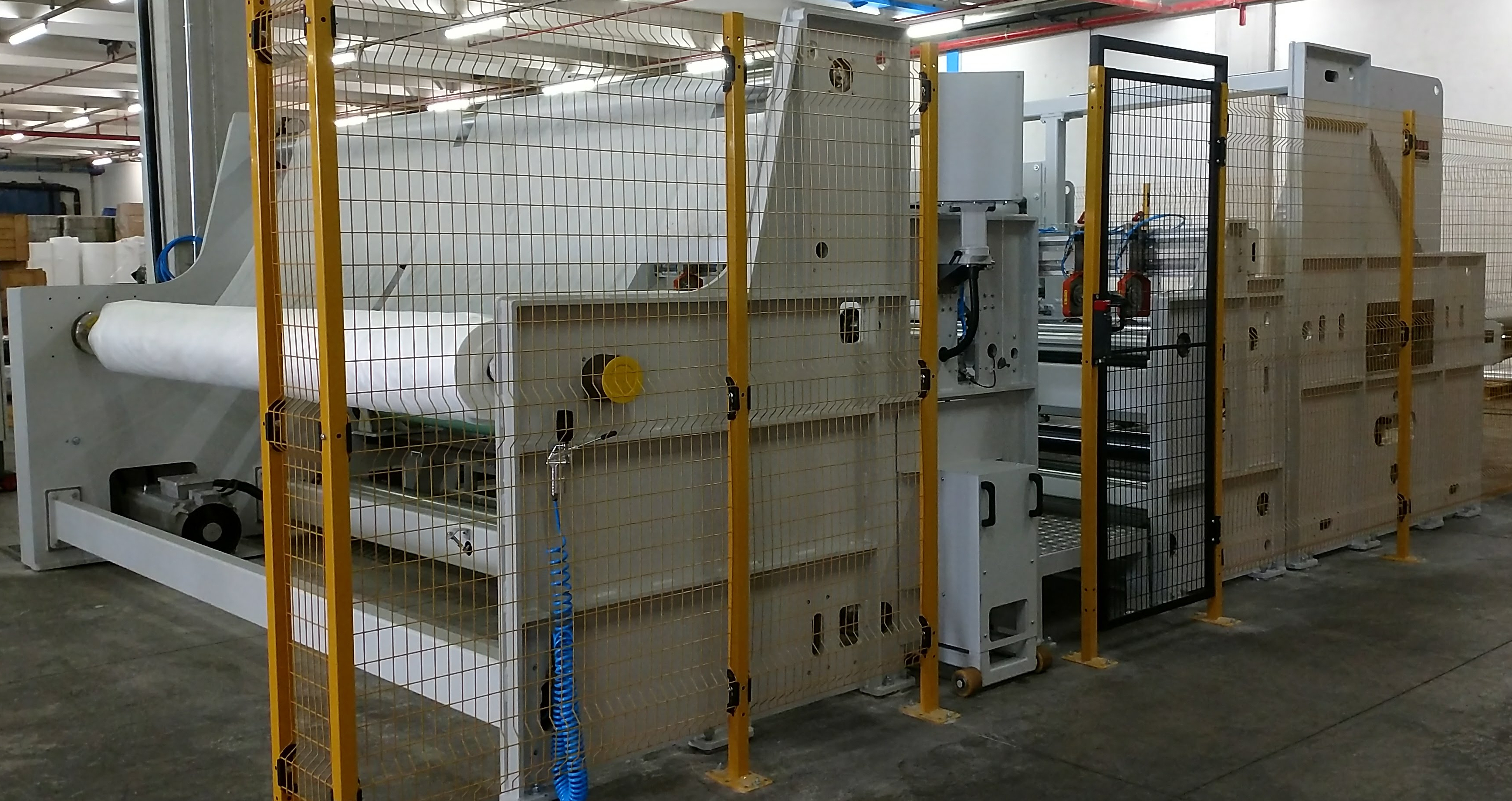

HIGH SPEED SLITTING/REWINDING MACHINE

CHARACTERISTICS AND TECHNICAL DETAILS:

• Modular construction with axial unwinding of big capacity and tangential winding.
• Motorisation with vector inverters reading the diameter of roll in real time and fabric tension controlled by loading cells.
• Preselection and automatic control of the hardness of roll.
• Automatic meter counter with pre-slow down and stop at the programmed length.

• Working width up to 3.800mm
• Variable speed up to 600 mt/min (accordingly with type of fabric).
• Mother roll diameter up to 1.800mm
• Wound roll up to 1.200mm.
• Full automation with PLC.
• Minimum size between cuts 25mm with scissor cut.
• Expandable shaft available on demand for 2”, 3”, 4”, 5”, 6”.

SLITTING MACHINE WITH PRE-CUT(PERFORATION) DEVICE MOD. EASY-CUT

New model EASY-CUT for longitudinal cut of Non-woven, Spun-bond, Spun-lace, paper, laminated, film. Machine very compact. Possibility of application of pre-cut (perforation) device.

SOME FINAL PRODUCT PROCESSED WITH PRE-CUT DEVICE

• Tablecloth
• Napkins
• Rolls save beds
• Hygienic Rolls
• Cleaning rolls
• Soaked wipes
• Strap multipurpose, any size

ROLL PACKING MACHINE MOD. COMPATTA

CHARACTERISTICS AND TECHNICAL DETAILS

• Single or double bobbin of film
• Longitudinal seal and cut of film by a precision sealing bar
• Automatic flow of roll into the packing station
• Automatic system for positioning of roll during wrapping operation
• Automatic feeding of film, without waste
• Safety lateral doors in plexiglass for a good visibility of operation
• Drive panel with digital regulation of all parameters, including time and temperature to be regulated accordingly with the thickness of film
• Possibility to pack up to Ø=1000mm and L=3000mm

POSSIBLE SOLUTIONS:

• Ends closing with double parallel sealing bar
• Ends closing by a passage through individual sealing bar
• Ends closing by hot air blower
• Ends closing by ultrasonic head
• Weighing on loading cells
• Software data control and seriale RS232
• Labelling
• Other solution on demand
• Automation with collecting rolls from several inspection machines
• Automatic cycle by PLC

CONFIGURATION:

• UNWINDING FROM MOTHER ROLL, AXIAL MOTION
• WINDING ON CORES, TANGENTIAL MOTION
• LABEL STICKING (OPTIONAL)
• CONVEYOR TO JOIN WRAPPING SECTION
• WRAPPING SECTION
• FILM SHRINKING TUNNEL

PRODUCTION CHARACTERISTICS:

• MAX. Ø OF MOTHER ROLL 1.200mm
• CORE OF MOTHER ROLL 76mm (3”)
• MAX. WORKING WIDTH 600mm
• MAX Ø OF ROLL WOUND 200mm
• STANDARD CORES Ø 12-40mm
• MAX. WIDTH OF CORES 600mm
• MIN. WIDTH OF CORES 360mm
• KIND OF FILM RECOMMENDED POLYOLEFINE
• THICKNESS OF FILM 18-20micron
• MAX. WINDING SPEED 100m/min

TECHNICAL CHARACTERISTICS

• POWER INSTALLED FOR WINDING 7Kw
• POWER INSTALLED FOR WRAPPING 2Kw
• POWER INSTALLED FOR SHRINKIN TUNNEL 12Kw
• PLC AND PROGRAM SIEMENS

SEQUENCE OF AUTOMATION OF WINDING MACHINE

• AUTOMATIC STOP WINDING AT THE LENGTH PROGRAMMED
• AUTOMATIC PUSH THE ROLL IN THE POSITION TO PERMIT CROSS CUTTING
• AUTOMATIC CROSS CUTTING
• AUTOMATIC DELIVERY OF THE NEXT CORE IN THE POSITION OF WINDING
• AUTOMATIC FEEDING OF FABRIC OVER THE CORE FOR SECURE WINDING
• AUTOMATIC START FOR THE NEXT ROLL
• LABEL STICKING ON THE ROLL PREVIOUSLY FINISH AND PUSHED OUT ON BELT
• CONVEYOR BELT SEND THE ROLL TO THE AUTOMATIC WRAPPING MACHINE
