Über uns
UNIMATEC Prägesysteme GmbH
A company to impress!
UNIMATEC manufactures embossing rollers and embossing machines for a wide range of applications. The focus is on the processing of tissue products.
Our many years of experience both in the field of napkin embossing with matched steel rollers and in the field of handkerchief embossing with top-to-flat rollers, in which we have been active in development since the beginning, have consolidated our position as market leader.
Of course, we do not only accompany our customers from the engraving development to the finished embossing roller/embossing machine, but we also give top priority to post-delivery support for all kinds of questions.
Our in-house laboratory facility gives us the opportunity to develop and test customized embossing processes in a wide range of variations for our customers. Embossing processes for various tissue products, aluminium, sheet steel and even foil processing can be reproduced realistically there.
Through intensive and open communication with our customers, we find a customized solution for every individual application.
UNIMATEC specializes in engraving with tools, as this process offers the highest accuracy. The tools are manufactured on high-precision tooling machines. The geometry of the figures is precisely defined and the surface of the tools is of the highest quality, which reflects in the surface quality of our embossing rollers.
UNIMATEC is able to engrave rollers up to a total length of 4,800 mm and a diameter of 600 mm with tools but also using pure etching technology or combined processes.
Unsere Produktgruppen
- Technology and Processes
Unsere Anwendungsbereiche / Lösungen
Keywords
- Prägewalzen
- Embossing Roller
- Prägekalander
- Prägemaschinen
- Embossing machines
Unsere Produkte

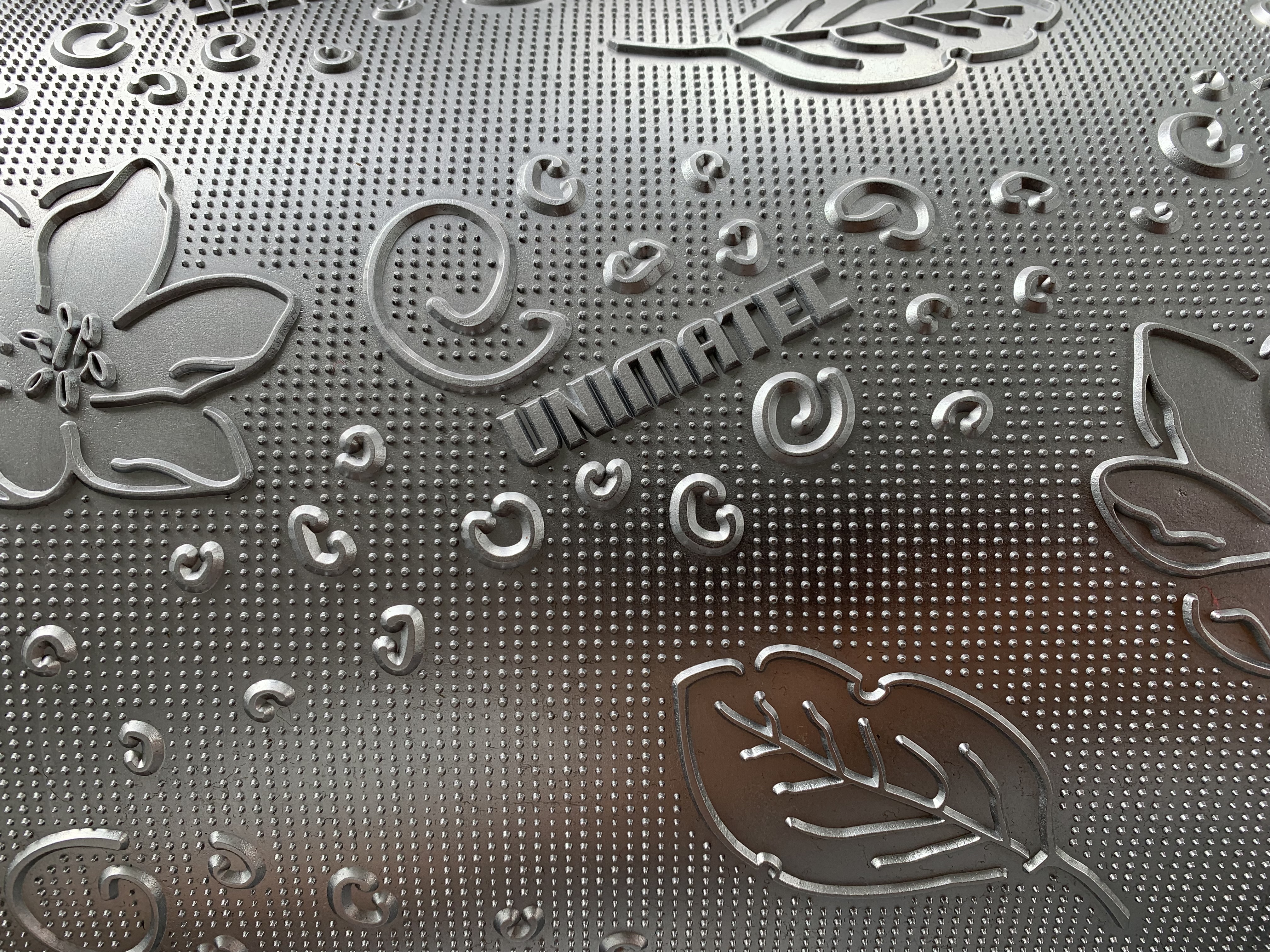

Embossing Rollers
UNIMATEC is able to engrave rollers up to a total length of 4,800 mm and a diameter of 600 mm with tools but also using pure etching technology or combined processes.
Pilot Plant
Our in-house laboratory facility gives us the opportunity to develop and test customized embossing processes in a wide range of variations for our customers. Embossing processes for various tissue products, aluminium, sheet steel and even foil processing can be reproduced realistically there.
Through intensive and open communication with our customers, we find a customized solution for every individual application.

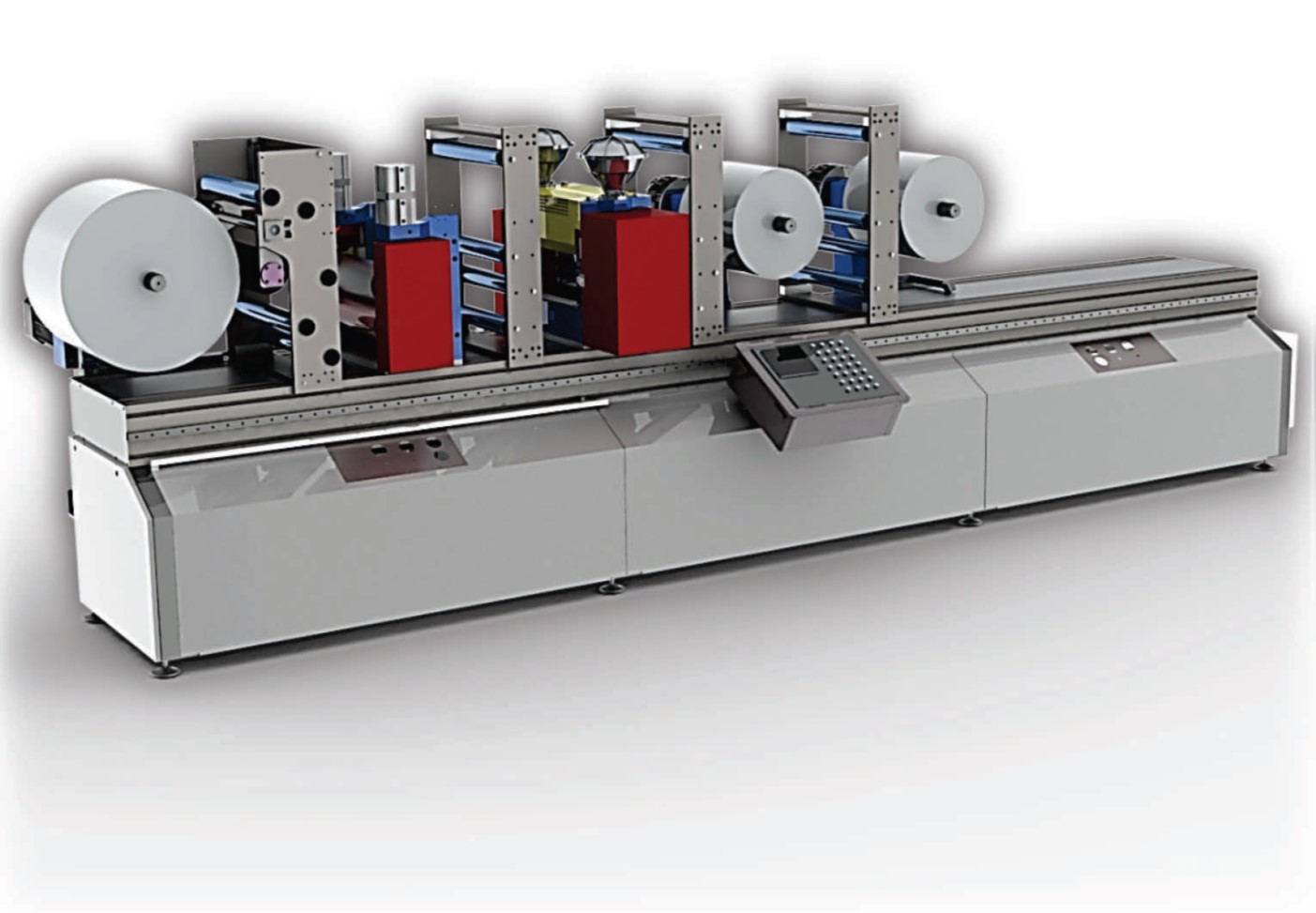

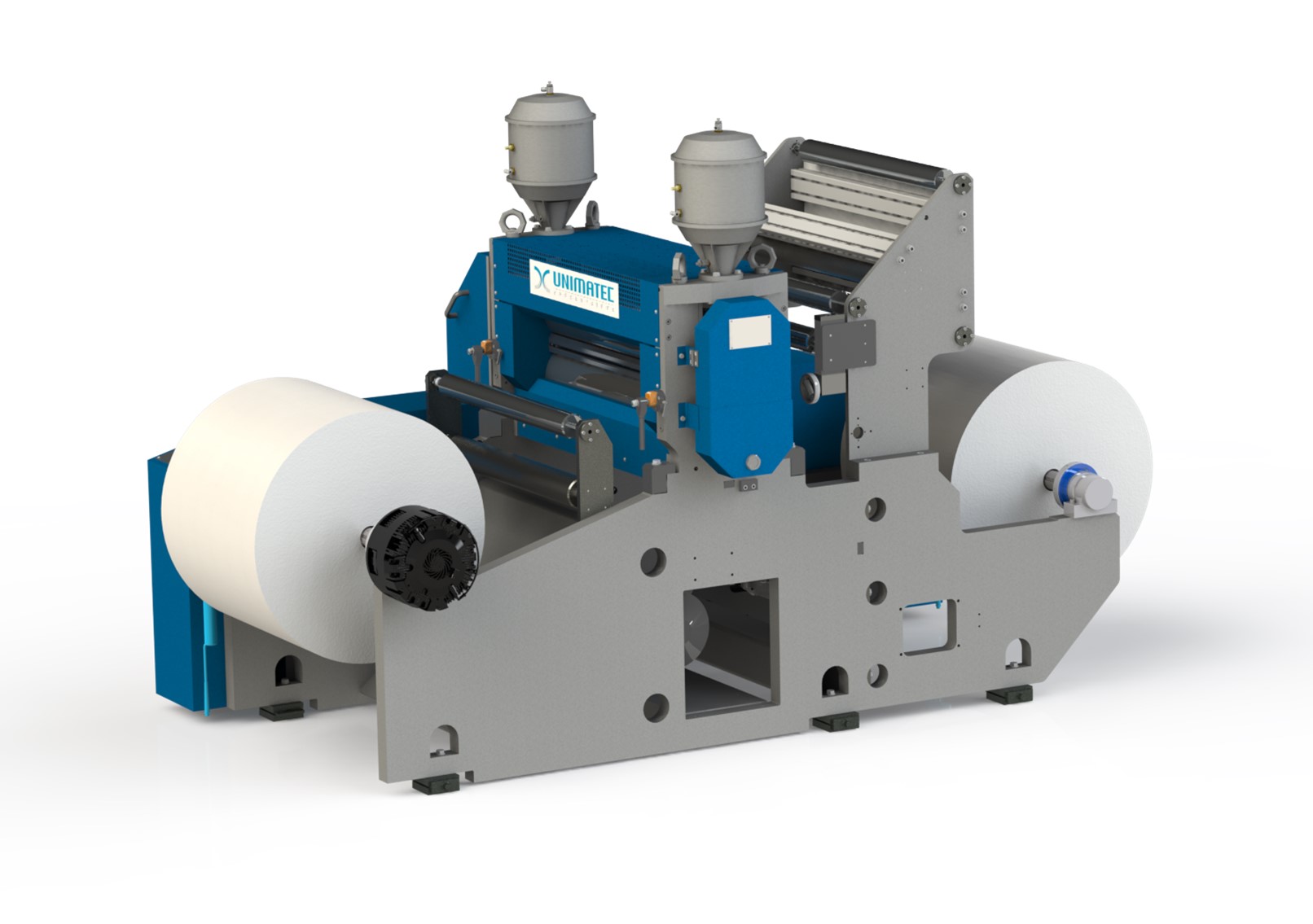

Embossing Unit (wíth unwinder and rewinder UMT 101)
Technical Data:
Material: Paper 90 g/m² - 200 g/m²
Working Width: max. 800 mm
Embossing Roll Dimensions: Matched steel rollers: 200 - 250 mm Ø
Embossing Force: max. 80 kN, pneumatically
Web Speed: max. 150 m/min
Paper Roll Diameter: up to 800 mm

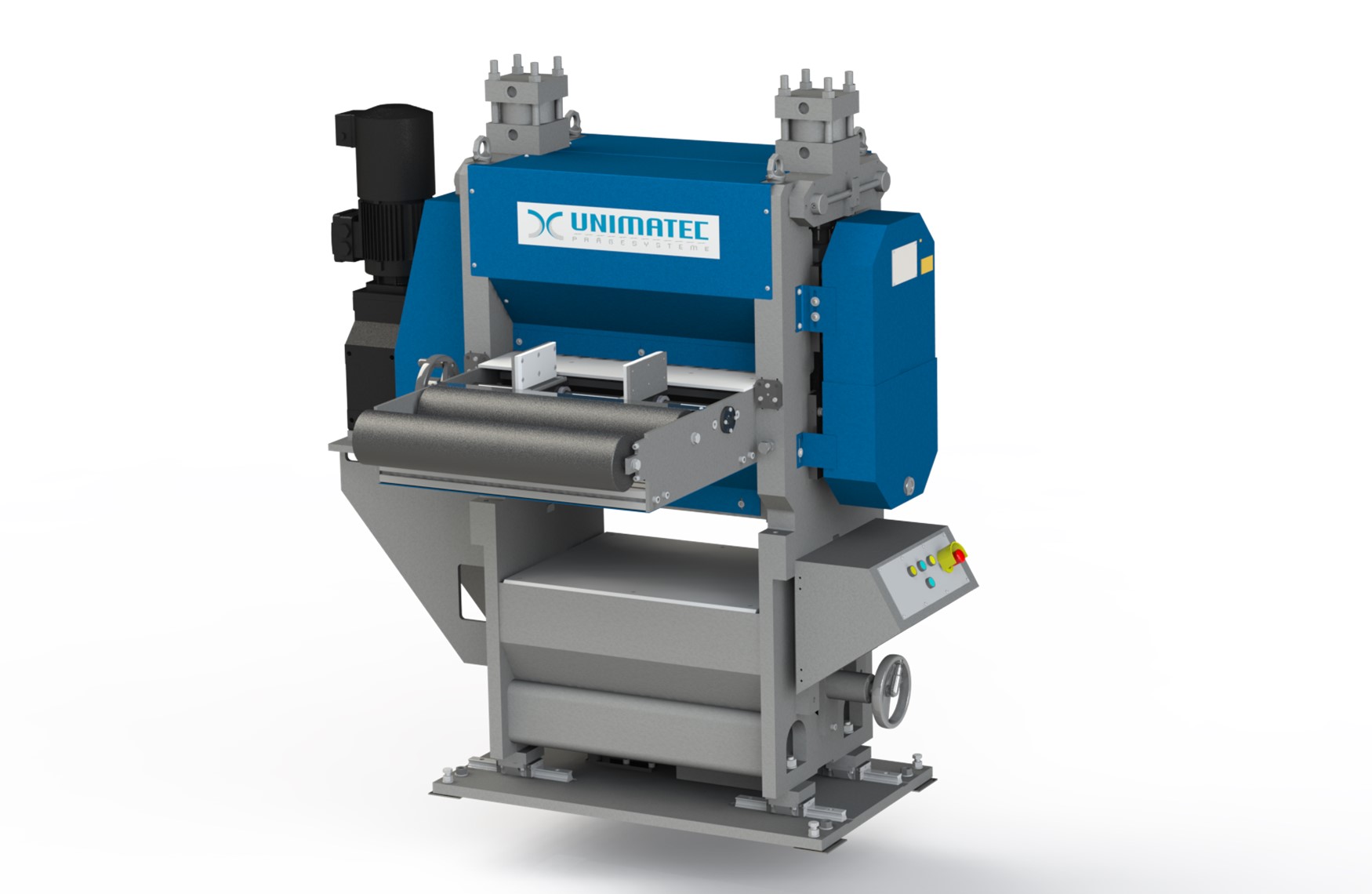

Embossing Unit UMT 200
Technical Data:
Material: Aluminum strip 0.6 mm – 1 mm thickness
Working Width: max. 550 mm
Embossing Roll Dimensions: Union rolls diameter range:
250 - 360 mm Ø x 610 mm face length
Embossing Force: max. 250 kN, hydraulic
Web Speed: max. 50 m/min (design speed)
Lateral Adjustment: +/- 100 m

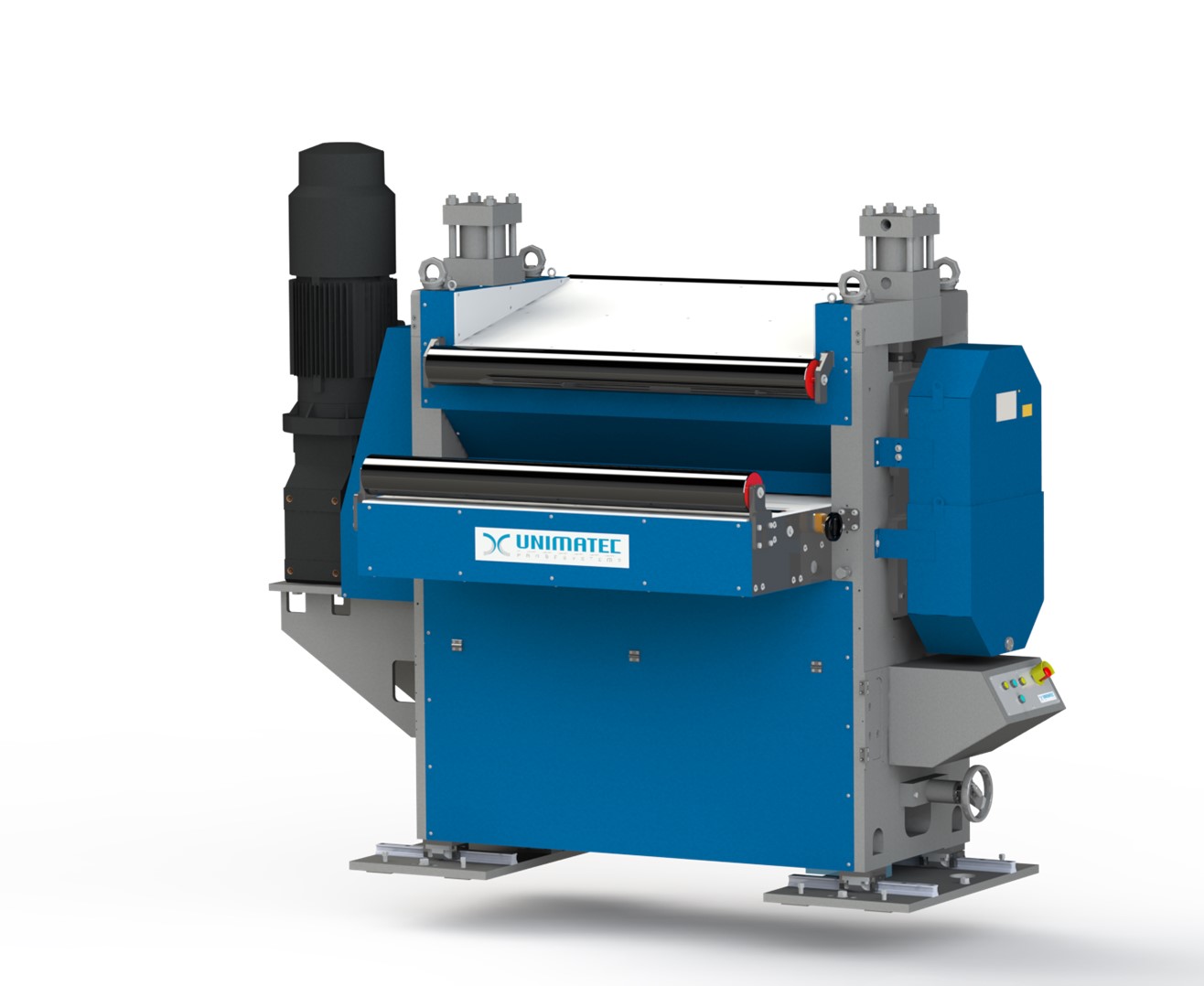

Embossing Unit UMT 406
Technical Data:
Material: Aluminum strip 0.7 mm – 1 mm thickness
Working Width: max. 1,250 mm
Embossing Roll Dimensions: Union rolls diameter range:
360 - 470 mm Ø x 1,320 mm face length
Embossing Force: max. 500 kN, hydraulic
Web Speed: max. 100 m/min (design speed)
Lateral Adjustment: +/- 200 m
