Discover more from us
About us
SAKRA Panel started its operations in Sakarya in 2018 and continues its production with the brands EMTAŞ – SAKRA – THERMOFIX.
Located in Sakarya 1st Organized Industrial Zone, SAKRA Panel AŞ has increased its capacity to 2,000,000 units / meters as of 2019 with its 30,000 m² closed area, 2 fully automatic welding lines and the latest technology paint / packaging line in a total area of 50,000 m².
SAKRA Panel, one of the important names in the heating system market, continues on its way with confident steps by increasing its production capacity and quality every passing day.
Today, Emtaş Panel radiators, which are spread all over our country, are exported to more than thirty countries and contribute to the country's economy.
Our goal is to continue our heating system investments without slowing down, to increase our current market share in Turkey and the world and to create superior quality products.
Our product groups
Our application areas / Solutions
Downloads
Keywords
- STEEL PANEL RADIATOR
- EMTAŞ
- RADIATOR
- SOLID FUEL BOILER
- HEATING
Our Products

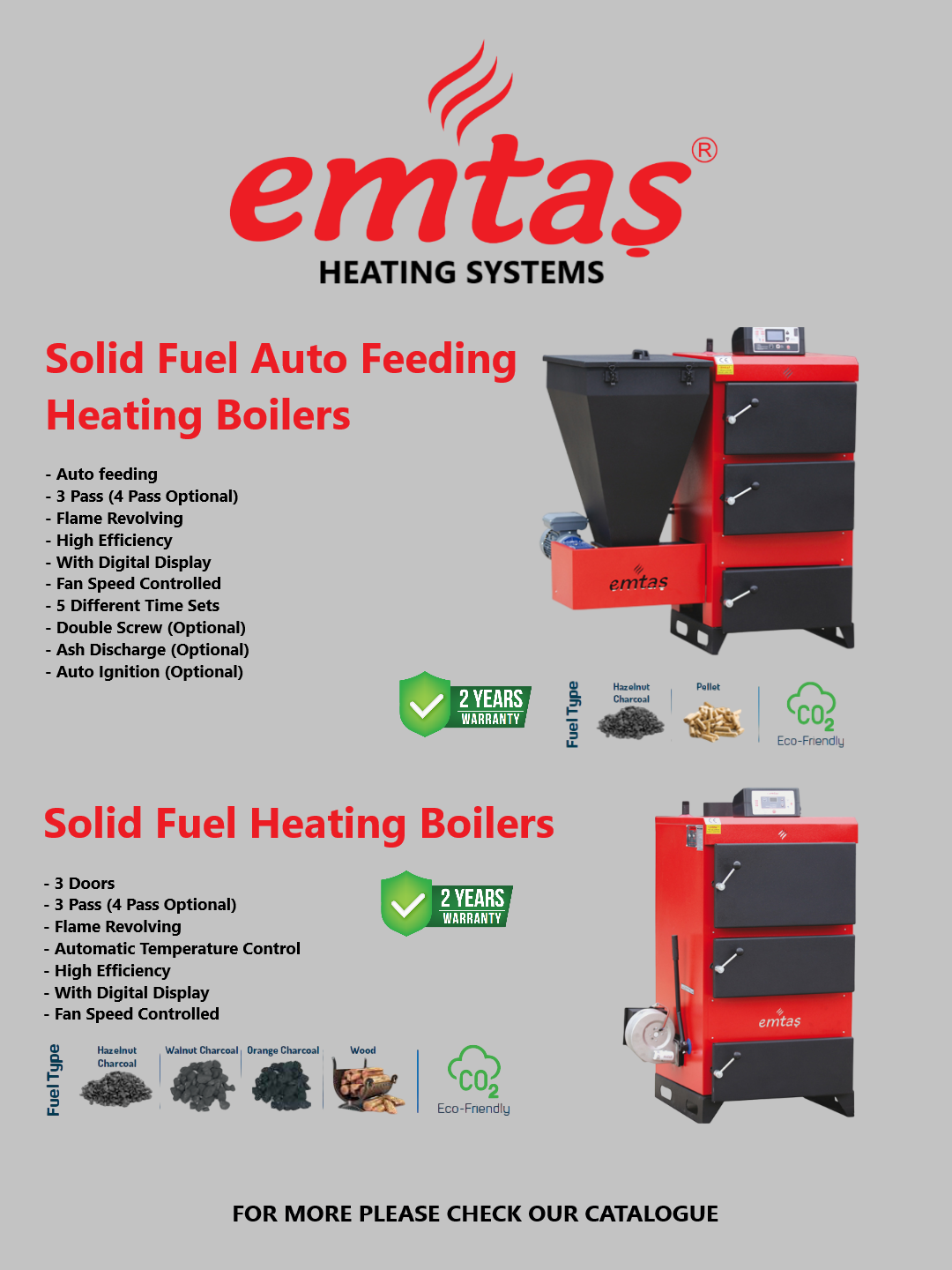

SOLID FUEL HEATING BOILERS
Emtaş solid fuel auto loading floor heaters are produced with superior technology to burn all kinds of solid fuels up to 20 mm in diameter such as coal, pomace, pellets, hazelnut shells.
Automatic heat control system provides the desired degree of operation and stopping. The air that provides combustion with the digital control panel is precisely adjusted and the boiler continues to heat to the desired degree in a controlled manner. Thus, the desired degree of heat in the environment is kept constant. When the fuel runs out, the system turns off automatically.
Since the fuel supply to the boiler is made from the bottom by means of a screw, negativities such as the extinguishing of the fire are eliminated, and homogeneous and ideal combustion of the fuel is ensured with the combustion air coming from the peripheral surfaces of the combustion chamber.
Emtaş solid fuel automatic loading floor heaters are manufactured to provide the heating needs of
all kinds of residential and business premises and are manufactured in accordance with TS EN 303-5
and CE standards with ISO 9001 Quality System to provide safe and economical heating with its
superior features.
-Auto feeding
-3 Pass (4 Pass Optional)
-Flame Revolving
-High Efficiency
-With Digital Display
-Fan Speed Controlled
-5 Different Time Sets
-Double Screw (Optional)
-Ash Discharge (Optional)
-Auto Ignition (Optional)

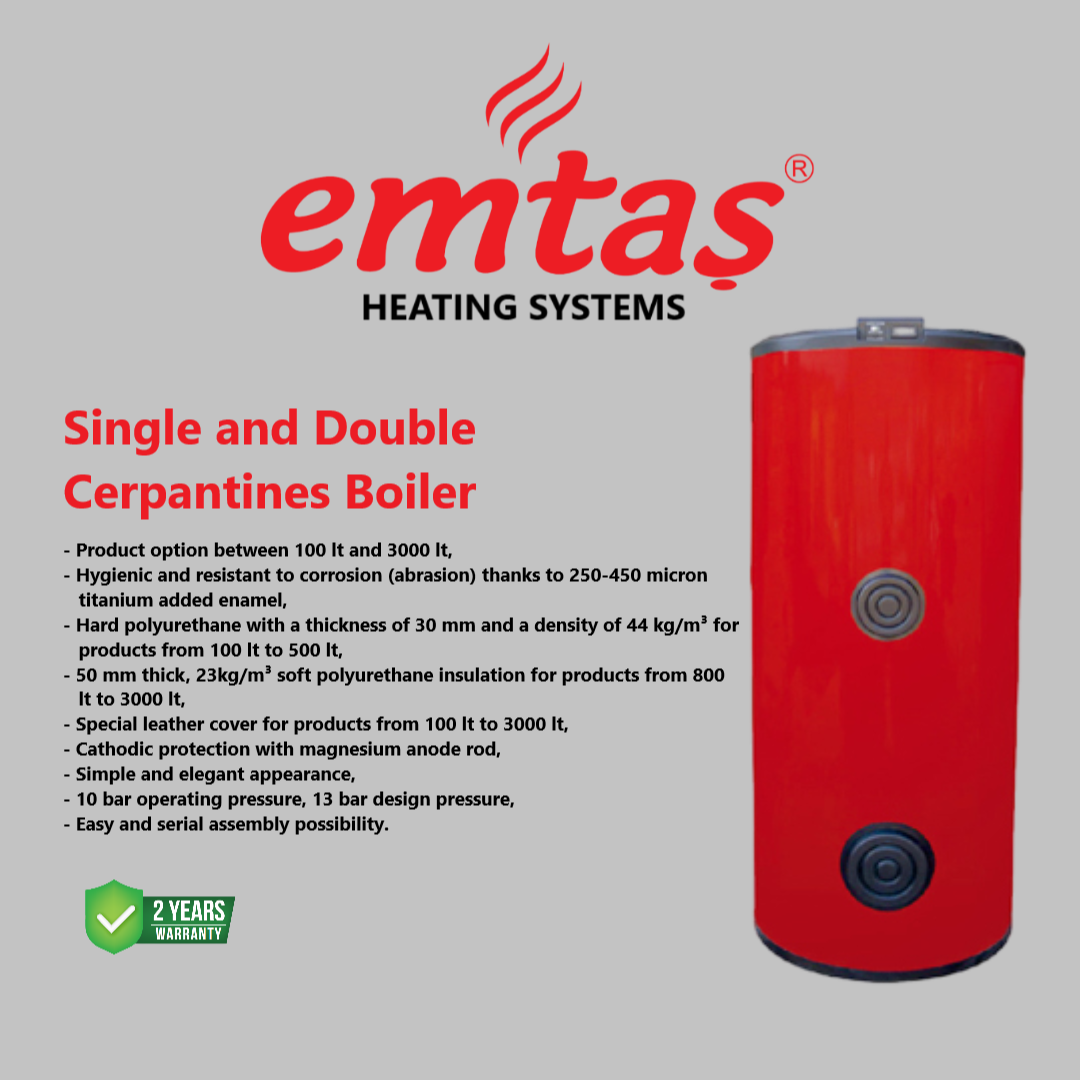

SINGLE AND DOUBLE CERPANTINES BOILERS
Emtaş serpentine boilers are devices used to transfer the heat obtained from solar collectors to the utility water with the help of the lower serpentine. In cases where solar energy is not sufficient, the heat obtained from the boiler or combi is transferred to the utility water with the help of the upper coil. For this reason, serpentine boilers provide the hot water need in a very economical way in regions that see more sun in winter months. As the third energy source, an electric heater can be optionally installed.
EMTAŞ Serpentine Boilers; It is produced in accordance with internationally recognized CE and TSE standards.
- Product option between 100 lt and 3000 lt,
- Hygienic and resistant to corrosion (abrasion) thanks to 250-450 micron titanium added enamel,
- Hard polyurethane with a thickness of 30 mm and a density of 44 kg/m³ for products from 100 lt to - - - 500 lt, 50 mm thick, 23kg/m³ soft polyurethane insulation for products from 800 lt to 3000 lt,
- Special leather cover for products from 100 lt to 3000 lt,
- Cathodic protection with magnesium anode rod,
- Simple and elegant appearance,
- 10 bar operating pressure, 13 bar design pressure,
- Easy and serial assembly possibility

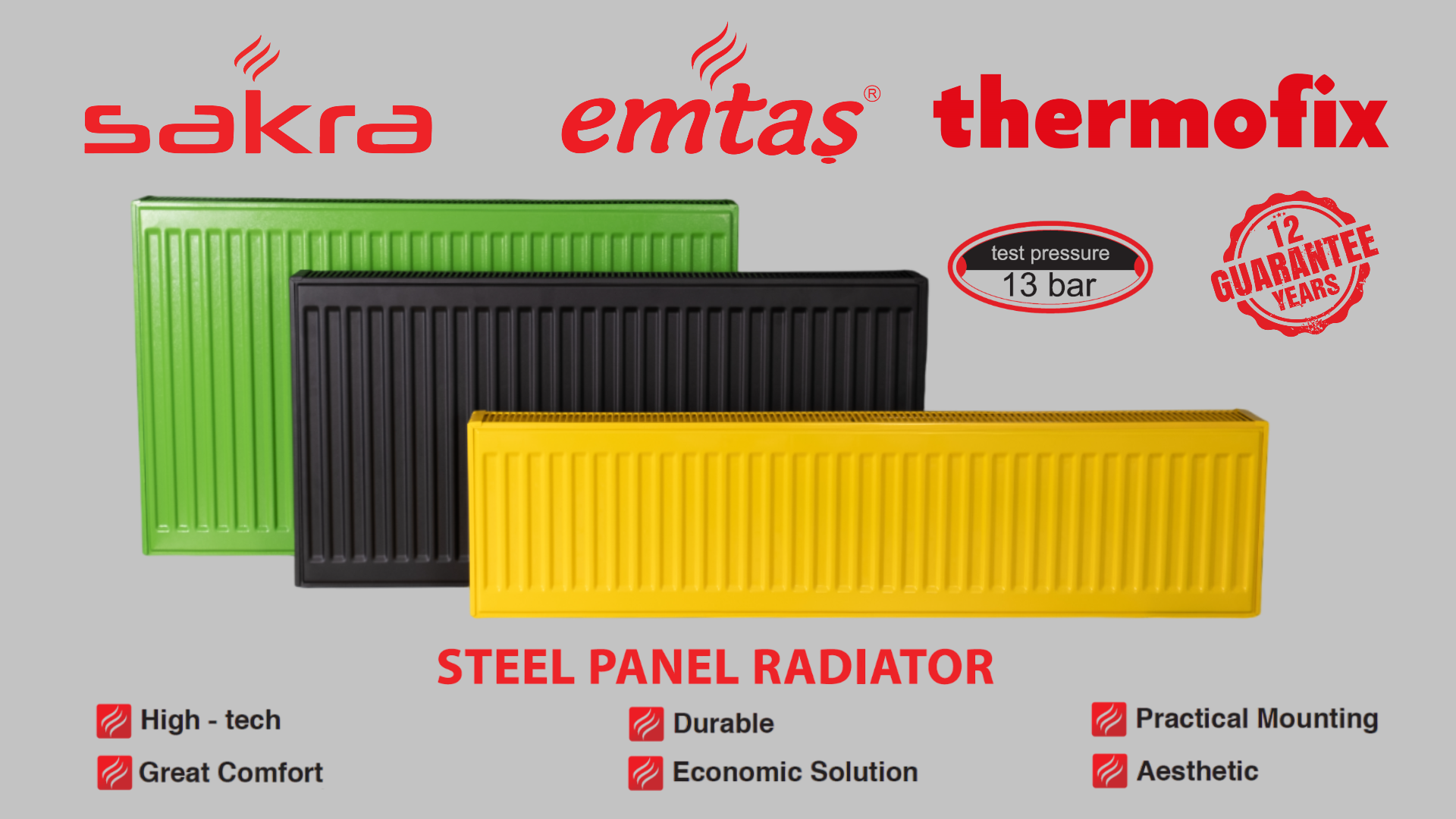

SAKRA / EMTAŞ / THERMOFIX COLORED STEEL PANEL RADIATOR
SAKRA / EMTAŞ / THERMOFIX colored panel radiators are manufactured in full automatic welding line by using computer controlled latest technology. And the production is under control of 100% by proter testing. Our average annual panel radiator production capacity is 2.000.000 metric tul. The outer faces of panel radiators are cleaned with phosphatization, grease removal and passivative covering in accordance with DIN 55900.
Later, the panels are undercoated with water based dip-painting system and the baked.
So all the air contacted surfaces of the panels are undercoated. In the latest stage, by the aid of automatic robot system, the panels are painted with Epoxy polyesther electrostatic powder paint method, than baked again. After the above mentioned applications, the panel radiators gain resistance to all weather conditions and corrosion.
The panel raidiators bring a reneval for living places via their elegant and aesthetic appearance, and with anti-dust plain surfaces.
The radiators can be cleaned easly due to upper gratings and side doors.
The SAKRA Company has the rights to make changes in the panel radiators because of new technological developments and market conditions without informing the customers.
SAKRA / EMTAŞ / THERMOFIX panel radiators are manufactured in 7 different types (10-P, 11-PK, 20-PP, 21-PKP, 22-PKKP, 30-PPP, 33-PKKPKP) and also vertical models, 6 different height classes (300-400-500-550-600-900 mm), 27 different lenghts between 400 and 3000 mm.
Because of optimum pitch wide as 33 mm that provide higher pressure rezistance and
lower water capacity, our panels provide saving of operating cost and productivity in
warning. Due to their patented fittings, they have montage possibility in place of casting
and sliced steel radiators.
With the garnitured types, they are suitable for the ground fed installations. If desired,
they can be montaged to the ground by the aid of special accesories. During
transportation and montage they are resistant to external shocks due to their
special/proper packege. High performance, suitable prices and fast delivery are the most
privileged characteristics of our panel radiators.
SAKRA / EMTAŞ / THERMOFIX panel radiators are packaged with gas bubbled nylon covers. The corners of radiators are covered and conserved with cardboard and plastic material. The holder tins are saved by thick plastic material.
Later, radiators are covered by shrink nylon to save from humudity and dust. The panel radiators can be montaged as packaged , Therefore, during transportation and montage, the harms of plaster, paint and other constructing trash are minimised, even prevented. The needed equipments
for wall mantage are supplied by SAKRA in the delivery package.
-Superior Technology
-Economic Solution
-Practical Assembly
-Durable
-Aesthetic

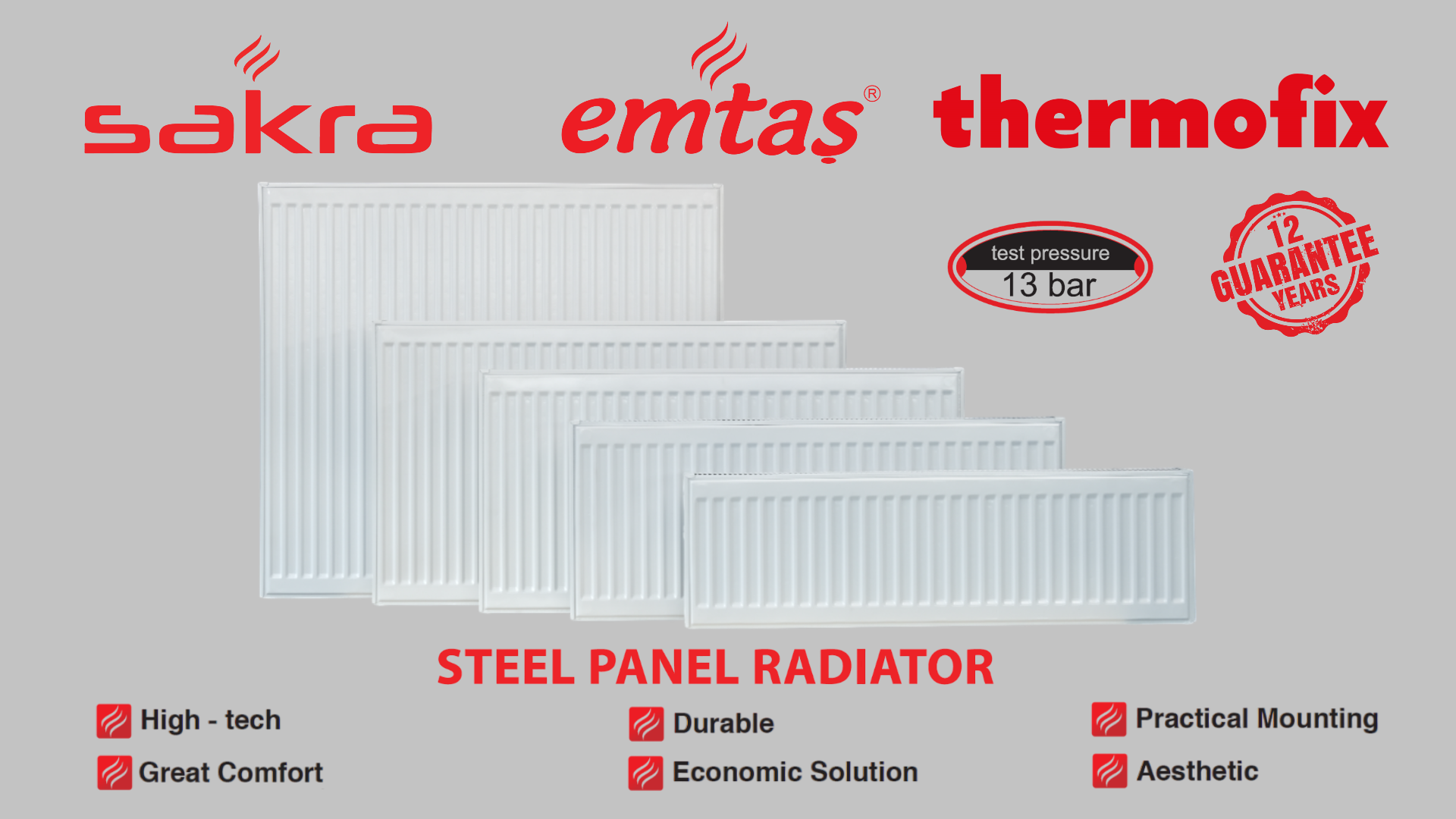

SAKRA / EMTAŞ / THERMOFIX STEEL PANEL RADIATOR
SAKRA / EMTAŞ / THERMOFIX panel radiators are manufactured in full automatic welding line by using computer controlled latest technology. And the production is under control of 100% by proter testing. Our average annual panel radiator production capacity is 2.000.000 metric tul. The outer faces of panel radiators are cleaned with phosphatization, grease removal and passivative covering in accordance with DIN 55900.
Later, the panels are undercoated with water based dip-painting system and the baked.
So all the air contacted surfaces of the panels are undercoated. In the latest stage, by the aid of automatic robot system, the panels are painted with Epoxy polyesther electrostatic powder paint method, than baked again. After the above mentioned applications, the panel radiators gain resistance to all weather conditions and corrosion.
Standart color of radiators is white RAL 9016.
The panel raidiators bring a reneval for living places via their elegant and aesthetic appearance, and with anti-dust plain surfaces.
The radiators can be cleaned easly due to upper gratings and side doors.
The SAKRA Company has the rights to make changes in the panel radiators because of new technological developments and market conditions without informing the customers.
SAKRA / EMTAŞ / THERMOFIX panel radiators are manufactured in 7 different types (10-P, 11-PK, 20-PP, 21-PKP, 22-PKKP, 30-PPP, 33-PKKPKP) and also vertical models, 6 different height classes (300-400-500-550-600-900 mm), 27 different lenghts between 400 and 3000 mm.
Because of optimum pitch wide as 33 mm that provide higher pressure rezistance and
lower water capacity, our panels provide saving of operating cost and productivity in
warning. Due to their patented fittings, they have montage possibility in place of casting
and sliced steel radiators.
With the garnitured types, they are suitable for the ground fed installations. If desired,
they can be montaged to the ground by the aid of special accesories. During
transportation and montage they are resistant to external shocks due to their
special/proper packege. High performance, suitable prices and fast delivery are the most
privileged characteristics of our panel radiators.
SAKRA / EMTAŞ / THERMOFIX panel radiators are packaged with gas bubbled nylon covers. The corners of radiators are covered and conserved with cardboard and plastic material. The holder tins are saved by thick plastic material.
Later, radiators are covered by shrink nylon to save from humudity and dust. The panel radiators can be montaged as packaged , Therefore, during transportation and montage, the harms of plaster, paint and other constructing trash are minimised, even prevented. The needed equipments
for wall mantage are supplied by SAKRA in the delivery package.
-Superior Technology
-Economic Solution
-Practical Assembly
-Durable
-Aesthetic
