Vitrulan Technical Textiles GmbH - Rooted in tradition with a focus on the future
Situated in Sonneberg - district Haselbach - in Germany, right in the heart of Europe, Vitrulan Technical Textiles GmbH is a future-oriented expert for specialist technical fabrics. With over 125 years of tradition, technical textiles based on glass and plastic are produced at the Haselbach site using the latest technologies and processes. Vitrulan Technical Textiles always focus on the customer in all their activities – in engineering projects as well as in day-to-day operations. The company is a competent partner and provider of custom solutions. Our flexibility and reliability are appreciated by customers around the globe.
Excerpts from our product portfolio:
- Functional, technical fabrics for various market segments and applications (e.g. composites, coating carriers, filtration) as a result of the further development of the product portfolio with mainly Synthetic plastic yarns, such as polyester, polypropylene, polyamide, glass/PP blended yarns and lots more.
- Reinforcement fabrics with high dimensional stability and tear strength as well as backing fabrics that offer high bending, creasing and shear strength. Optionally available with flame-retardant or non-flammable finishes and heat-sealable or thermally activated finishes
- Laminates and laminations with high perforation and puncture resistance made from glass or polyester mesh combined with non-wovens, foils or fabrics
Unsere Produktgruppen
- Woven Fabrics, Laid Webs, Braidings, Knitted Fabrics
- Coated Textiles
- Composites
Unsere Anwendungsbereiche / Lösungen
Keywords
- reinforcing fabrics
- Vitrulan
- technical fabrics
- Armierung
- Glasfaser
Unsere Produkte

Woven mesh fabrics
Woven mesh fabrics are either produced from E-glass yarns and rovings or polyester yarns. Thanks to individually developed coatings, they offer numerous advantages for use as reinforcement fabric: from robust and heavy to fine-meshed and lightweight.
Properties of woven mesh fabrics:
- High tear and tensile strength
Woven mesh fabrics offer improved flexural and breaking strength and higher protection against mechanical stress. Due to their structure and the raw materials used, they are stable in the event of temperature and humidity fluctuations and offer increased resistance to initial tearing and tear propagation.This prevents cracks from forming and appearing on the surface.
- Alkali resistance
Thanks to its alkali resistance, the woven fabric is protected from aging and loss of performance, while offering maximum compatibility with mineral and dispersion-based materials.
- Uniform fabric appearance and low thickness
The uniform appearance of the woven mesh fabric acts as a coat thickness indicator and ensures controllable material consumption. This also promotes a homogenous surface finish.
- Excellent flatness and stiffness
Woven mesh fabrics are extremely flat and stiff, which makes working large surfaces more efficient while ensuring process capability and reliability.
- Application-specific weight and flexibility
Woven mesh fabrics are flexible for ease of handling, yet dimensionally stable. They adapt perfectly to the substrate, thus ensuring good workability. Due to their low weight, they even support lightweight constructions.
- Finishing options
- Different hardness grades
- Non-combustible / flame retardant
- Formaldehyde-free
- Halogen-free
- Heat-sealable
- Self-adhesive on one side
- Electrically conductive coating
- Customizable
Special tints, printed logos or custom roll dimensions possible
CUSTOM REINFORCEMENT PRODUCTS
Are you looking for the right “reinforcement” for your product? In collaboration with you, we develop a solution – tailored to the relevant production process and technical requirements of the finished product.

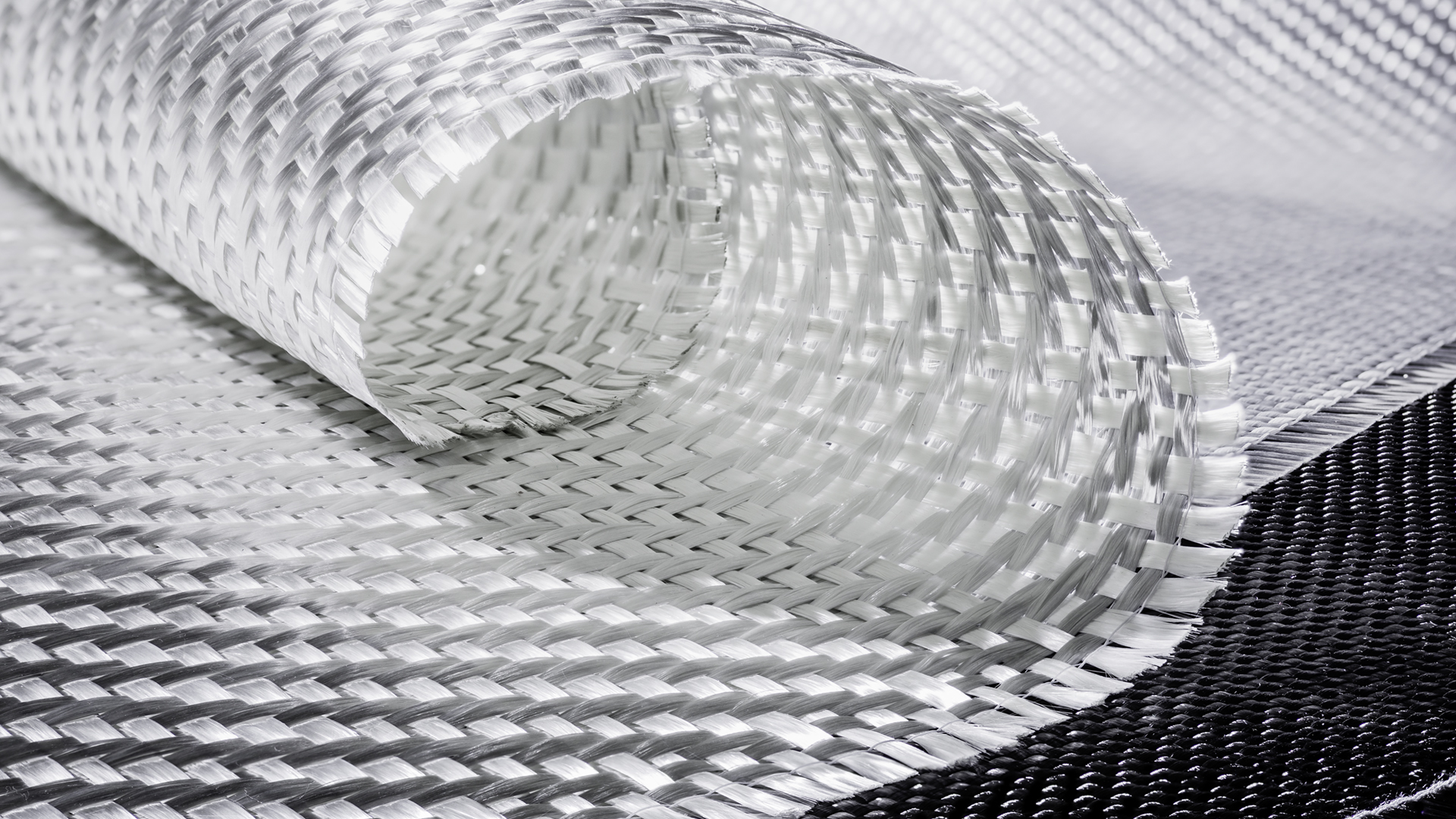

Technical fabrics
Vitrulan woven rovings made from glass or carbon, coating carriers and filtration fabrics as well as other products for special applications.
Production options
When it comes to the production of technical fabrics, the possibilities are almost endless. Whether woven rovings made of glass or carbon, technical fabrics as coating carrier or for filtration, the production options are vast:
- Traditional mesh structures with leno weave technique or as drebfabric (DORNIER EasyLeno®-2T)
- Compact and closely woven fabrics with air-jet or rapier weaving machines
- Warp beam weaving and creel feeding possible
Woven rovings (glass)
Woven rovings made of glass are compact constructions with a high material weight for applications that require particularly high strength and low deformability.For best compatibility with the resin systems employed in the composites, roving materials with different sizings are used.
Woven rovings (carbon)
Woven rovings made of carbon offer outstanding technical properties and low grammage, which enables a wide range of applications in the field of component parts made of fiber-reinforced composites.Carbon is chemically inert and thus highly resistant to most acids, alkalis and solvents, and absorbs virtually no water.
Woven fabric tapes
Thanks to special tape weaving machines, it is possible to manufacture fabric tapes in the required width with a stable selvedge.In addition, reinforced extra wide fabrics can be cut lengthwise with widths varying subject to customer requirements.
Coating carriers
Fabrics woven from glass fiber or synthetic yarns are used in a variety of ways in the coating industry.The specific material properties of the coating carriers mean that the technical parameters of the coated membranes, such as maximum tensile strength or elongation and shrinkage behavior, can be tailored perfectly to the intended application.
Filtration fabrics
Filtration fabrics made of glass or synthetic materials for solid/liquid separation, hot gas or particle filtration.The materials are selected for the different fabric constructions in line with the desired filtration effect and resistance.A wide range of filtration fabrics can be produced – from open supporting fabrics used in the production of needle-punched fleece for hot gas filtration to highly dense fabrics for solid/liquid separation.

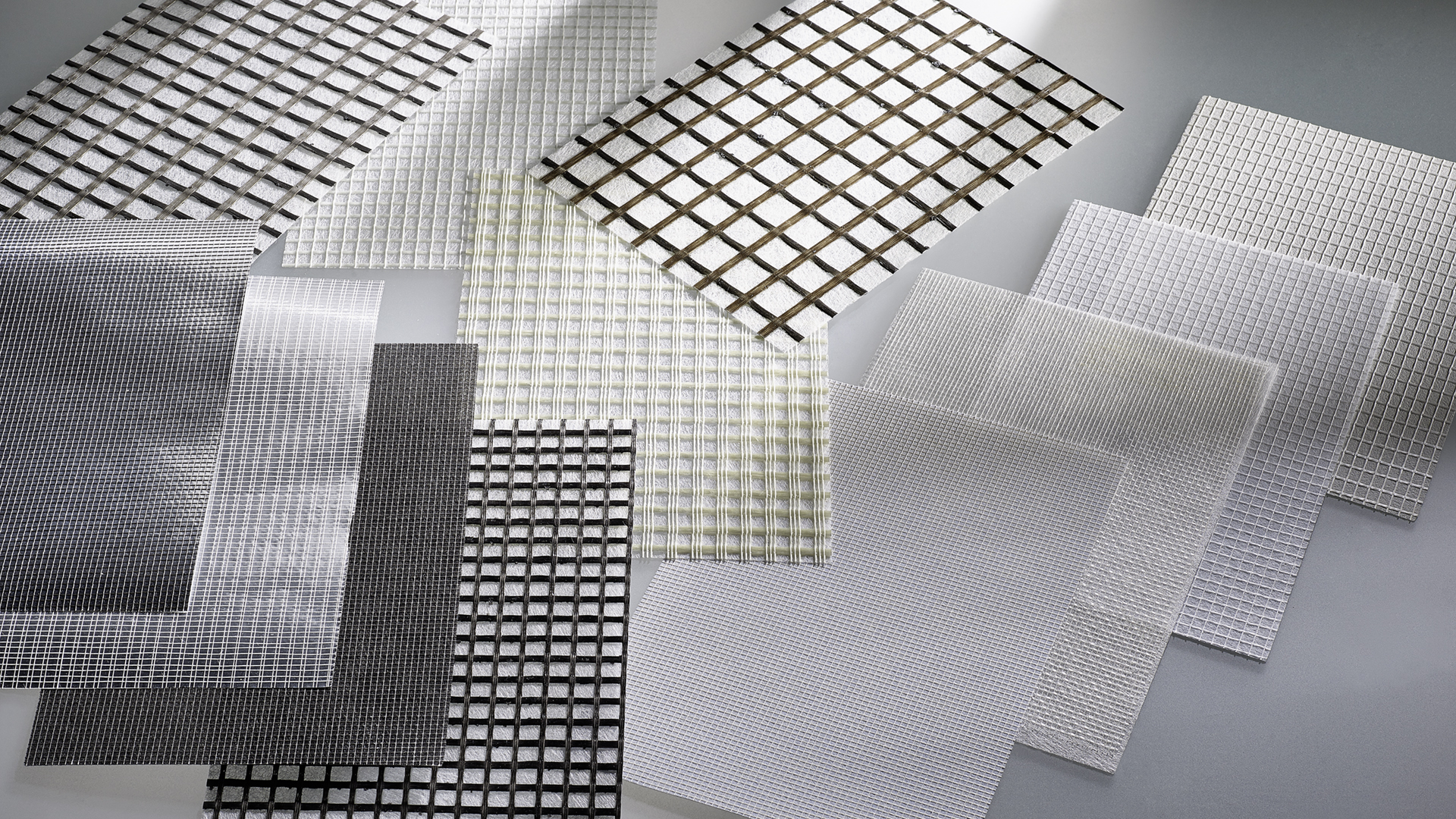

Laminates
Laminates combine the superior technical properties of different products. Lamination with a woven fabric, for example, significantly increases the perforation and puncture resistance, which is usually only achieved with tightly woven fabrics or heavy-duty polyester fleece materials.Due to their clean and closed surfaces, laminates always offer a high-quality appearance.Non-combustible laminate designs are also available on request.
Woven fabric/fleece
Laminates based on open mesh fabrics woven from glass or polyester fibers and combined with glass fiber fleece are used, for example, in acoustic panels and for coating roofing and waterproofing membranes.
Woven mesh fabric/woven mesh fabric
Laminates consisting of two different woven open mesh fabrics are used as drainage and de-watering fabrics due to their adaptable permeability.
Knitted fabric/fleece
Laminates based on open mesh fabrics knitted from glass or polyester fibers not only excel in flatness, uniform fabric appearance and low thickness; depending on the fiber material used, the knitted fabric exhibits a number of advantageous properties:
- When combined with a knitted polyester fabric, the laminate demonstrates good elasticity, which allows the material to adapt optimally to the forces acting on it and thus be used, for example, in roofing and waterproofing membranes.
- In combination with a knitted glass fiber fabric, the tear and tensile strength of the laminate is significantly increased, making it ideal for use with insulation materials such as rock or glass wool.

Scrims
Vitrulan scrims are divided into two groups: lightweight scrims for reinforcement that feature a particularly flat and open structure, and heavy-duty scrims made of roving material ideal for high force absorption.
Lightweight scrims
Vitrulan open polyester (PES) and glass scrims feature a 0°/90° orientation and offer excellent force absorption in longitudinal and transverse directions.
To keep the weft and warp layers in place, they are bonded with application-specific binders such as SBR, EVA or acrylate.
Scrims are the reinforcement of choice when as flat and open a structure as possible is required. For example, they are ideal for reinforcing bitumen and synthetic membranes that are bonded together without using additional adhesives.
Heavy-duty scrims
Vitrulan produces a special type of scrim based on rovings.The scrims can be manufactured from various materials such as glass, carbon, polypropylene (PP), polyester (PES) and polyaramid (PA), or as hybrids of these materials.
In line with what is required for the intended application, the fiber axis of these scrims can be oriented in different directions to ensure optimal absorption of the occurring forces.

Knitted fabrics
Knitted fabrics consist of parallel courses of threads that are joined to each other by interlocking loops. This enables the production of high elastic and tear resistant textile fabrics.
The warp and weft threads of our weft-knit fabrics can be made of glass fiber or polyester yarn, whereas the binding threads are always made of polyester yarn.
The resulting open mesh structures are reinforced with various binder systems on a direct finishing line.
Due to their high tear and tensile strength, knitted fabrics made of glass fibers are ideal as reinforcement mesh for marble and natural stone slabs or for use in knitted fabrics/fleece laminates. The latter are used for laminating insulation materials such as rock or glass wool.
Polyester knitted fabrics offer additional elasticity that enables them to adapt perfectly to the forces they are subjected to, making them ideal for use in roofing and waterproofing membranes.
