TEXTILES FOR ANTISTATIC PROTECTION CLEVERTEX®

 Antistatic woven and knitted textiles and textile products suitable for everybody who works with electrostatic discharge sensitive components (ESDS) where electrostatic discharge can occur.

Our antistatic protective wear can minimize such risks and increase the manufacturing quality.

 Please, make your choice of the widest range of certified ESD protective wear on the Czech market:

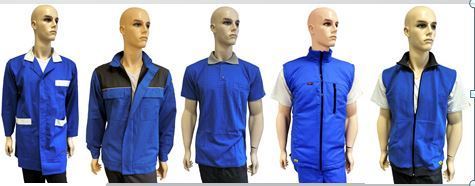

 - working coats, trousers, vests

- sweatshirts

- poloshirts, tops, dresses T-shirts,

CleverTex® antistatic ESD protective garments have been offered since 2010 and thanks to a perfect background and long years’ experience based on the research and development activities we are able to continually improve and expand our product portfolio.

Testing and Certification

Protection against dangerous electrostatic phenomena is normatively elaborated in the international standards of the IEC 61340 series and for European countries in the EN 61340 series.

Functional features of CleverTexÒ garments are regularly  tested in accordance with EN 61340-5-1 ed.2: protection of electronic components against electrostatic effects - general requirements.

Resistance between two points  Rp-p < 1.1012 Ω

Permanent properties

Conductive polyester fibres applied in CleverTex® antistatic clothing contain carbon particles and create black grid or strip pattern in the products. By this way proper conductivity of the products is ensured within the whole surface as well as across the seams. The share of carbon has been designed in such a way that antistatic properties required by EN 61340-5-1 ed. 2 are met even after frequent washing.

CleverTex® antistatic ESD producst are intended to be frequently treated, washed and dried, That is why the products have been tested for 50 washing cycles and even after such number of washing cycles their antistatic parameters comply with standard requirements.

To maintain the anti-static properties of ESD garments, we strongly recommend that the specified washing and maintenance conditions are observed.

Laundry symbols can be found on each garment in the form of a label.

Made in the Czech Republic

We can guarantee high manufacturing and servicing quality. We are focused on customer´s needs and requirements. This approach can bring a lot of positive factors.

- wide range of colours and cuts, customized cut possíble

- flexible production

- embroidered or printed company logo on demand

- sample production

- quality control

- customized quotation within 24 hours

- immediate response to enquiry

Light emitting clothes VIDTEX - Glow in the dark

    - luminescent clothes for safety and comfort

VIDTEX smart clothing has been specially developed to increase the safety and visibility of all road users - children and adults, as well as road maintenance workers and drivers.VIDTEX products emit light in the dark and therefore can b  suitable for sports and other common outdoor activities as well.

The material used is innovative with luminescent effect.  Certain parts of the garment are able to absorb natural or artificial light and then emit it for longer periods of time.

For optimum effectiveness, garments should be exposed to intense light for at least 15 - 30  minutes before wearing.

VIDTEX product line represents functional visible clothing made of advanced textile materials so that the clothes are functional, breathable, protective and comfortable enough, but above all they can contribute to increased safety when moving in reduced visibility in road traffic and during normal leisure activities.

Most important features &  main advantages

- advanced textile material to increase visibility

 -  luminescent clothing parts  together with reflective elements  to increase personal safety in low visibility

-  ideal for running, cycling, walking and other outdoor activities

 - breathable antibacterial material for comfortable wearing

-  the luminescent effect is permanent and is not affected by repeated washing

- Czech made

Material composition:

50%  polypropylene antibacterial

25%  polyester

25% viscose lyocell

160 g/m2

luminisceent sleeves, inserts:  luminescent polyester/viscose/elastane

reflective elements:                polyurethane

Textile connecting multi-wire ribbons with high electrical conductivity

VÚB a.s.  has  been engaged in research and development in the field of smart textiles and wearable electronics.

Within this work, a number of conductive hybrid threads were developed, which show different appearance, purpose of use, mechanical-physical parameters, but especially different electrical characteristics - especially the electrical resistance determining the possibility of specific use of threads.

We followed up on these results and continue further development, which is focused on the implementation of these conductive threads into elastic ribbons or tapes, which could be used as electrical signal buses.

Our CleverTex® conductive textile ribbons offer a wide range of applications, especially in the field of e-textiles and wearables.

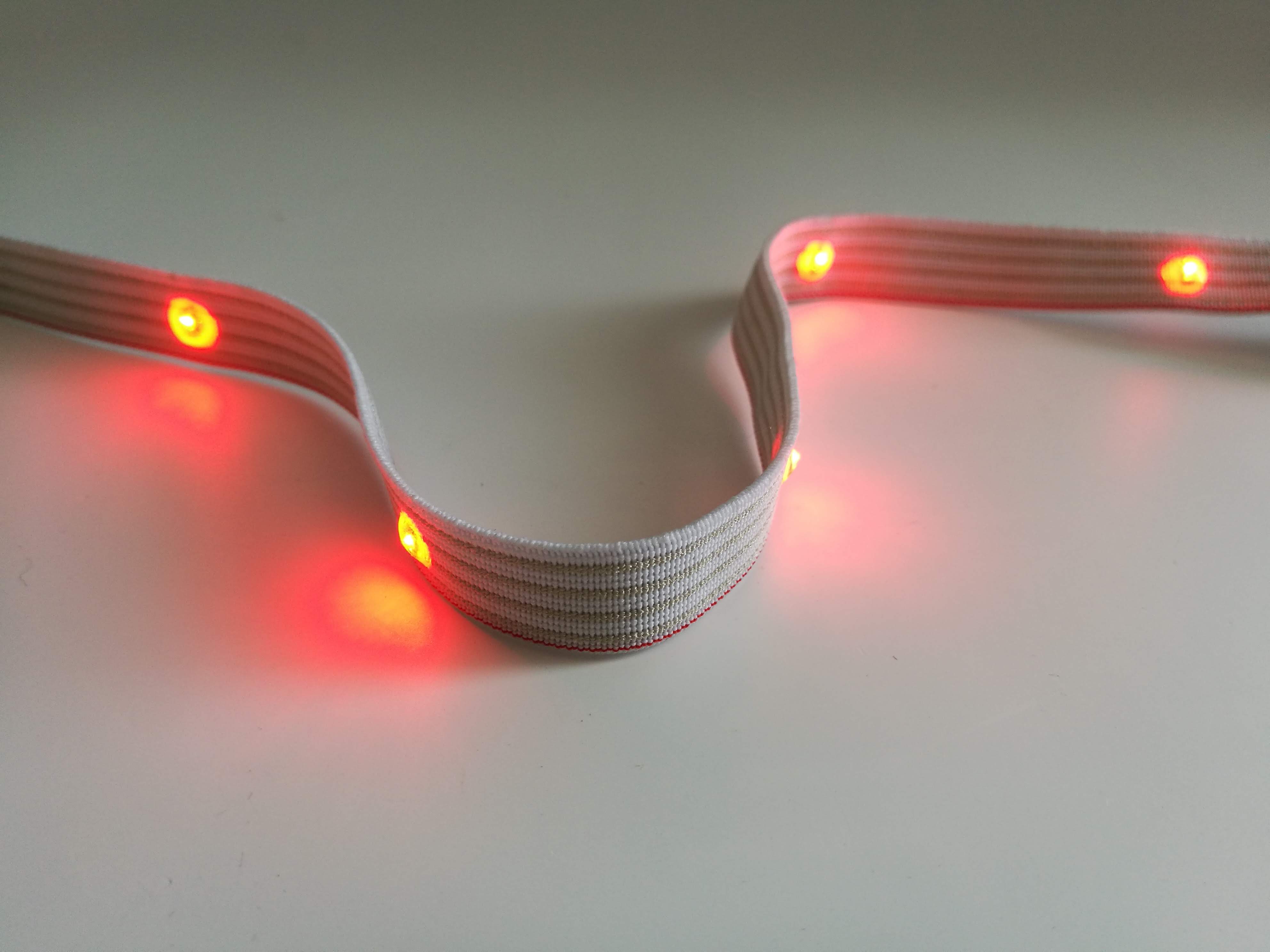

The electrically conductive flexible ribbons can advantageously be used as bus bars or as "textile conductors" wherever a variable length of conductive element is required without their electrical resistance being affected during the change in length. In addition, it is possible to place electronic components such as LEDs, sensors or connectors on these ribbons. Flexible conductive ribbons thus enable an easy and reliable way of implementing e-textiles.

Generally elastic ribbons are produced in a volume of about 25% of the entire production of ribbons and the production of this specific ribbon type does not differ from the production of solid ribbons, so called belts.

The elasticity of the ribbon in general is ensured by the presence of flexible/elastic components, which can be in the form of elastomer or classic rubber bands of natural rubber.

The number and extensibility of the woven elastic components provide the resulting elastic parameters of the ribbon. Usual flexible ribbon shows 200% extension.

In our solution when preparing CleverTex® conductive textile ribbons some of elastic components are replaced by CleverTex® conductive threads in the warp system.

Thus, a new product is created which combines textile and electrical properties and acquires new possibilities of application in the ​​e-textiles area.

During the research and development, various types of CleverTex® elastic ribbons were developed, which differ mainly in the purpose of their use and thus in the number and structure of implemented hybrid conductive threads.

The most frequently used elastic ribbons are the following two types:

• Single-conductor elastic ribbons

 It is a flexible ribbon with one wide conductive strip composed of several individual electrically conductive hybrid threads. This ribbon can be used as a collecting electrode for textile heating elements. If necessary the width of the conductive strip is variable depending on the number of conductive threads implemented.

• Multi-conductor flexible ribbons

This type of the ribbon is a "multi-conductor" ribbon type, where multiple electrically separated conductive paths, usually 2 - 4, can be placed in the ribbon.

Such ribbons can then be used as a replacement of litz-wires and buses in textile products. A huge advantage of this solution is the ability to create turnoffs and tree structures, as the conductive tracks are accessible from one or both sides of the ribbon.

Core product properties:

•  ribbon width usually 8 - 12 mm;
•  variable amount of conductive paths in the ribbon - usually 1 - 4;
•  standardized spacing of conductive tracks 2.54 mm (for ribbons with two or more tracks).
•  solderable, weld-able, crimp-able;
•  possibility of direct mounting of SMD components on conductive tracks by low- temperature   soldering (SnBi) or gluing;
•  linear resistance of one conductive path <1 Ω / m independent of stretching;
•  high abrasion resistance and bending resistance;
•  high resistance to maintenance stress - they can withstand up 90 washing cycles without   deterioration of functionality;
•  medical safety.

Advantages of CleverTex® conductive textile ribbons application:

 -  The production and especially the use of rigid or flexible conductive ribbons allow moving the integration of electronic components into textiles to a significantly higher level.

-  The conductive ribbons can not only serve as carriers for individual electronic components or entire electronic modules, but can also be used as connecting wires or bus-bare.

-  Wide variability and customization of conductive ribbons- the can be  tailored exactly to the required parameters, i.e. it is possible to change the current carrying capacity, change the electrical characteristics of conductive elements, numbers of conductive elements, spacing of conductive paths etc.

 -  High resistance to maintenance stress allowing  to achieve a long life of the  e-textile end products.

The design and topology of elastic ribbons with conductive tracks realized by means of hybrid conductive threads is protected by Czech patent No. 308 614 "Conductive elastic woven ribbon".

Highly conductive hybrid sewing threads and yarns CleverTex®

      - advanced solution  for smart textiles, e-textiles

CleverTex® conductive threads are formed by a process of multiple twisting of  metallic  microwires with a non-conductive textile material, usually a high-tenacity polyester filaments.

The result of this process is a relatively standard sewing thread, which is compatible with  all known and used textile technological processes, i.e. it can be applied in sewing, embroidering, weaving or knitting.

A significant advantage of this manufacturing concept is the possibility of customization in terms of thread fineness, colour shade, electrical conductivity, etc..

Most important features &  main advantages

• based on ultrafine metallic wires combined with synthetic filaments
• excellent electrical properties, esp. low linear electrical resistance in W/m required by smart textile applications
• suitable for sewing on standard sewing machines and special embroidery machine
• full compatibility with other standard textile manufacturing processes to create completely functional conductive tracks, circuits, textrodes, heating elements
• very good mechanical-physical properties
• wear stability
• high mechanical resistance, resistance to maintenance stress (> 50 washing cycles)

Applicarion areas, target groups

CleverTex® threads are designed for the creation of fully functional conductive tracks, electrical circuits, textures, heating elements, antennas and will find application in the development and production of smart textiles and final products for various areas of human activities:

Protective clothing

• the embroidered temperature sensors

Home care; health care  (improving the care of the ageing population and handicapped people)

• smart bed sheet with integrated sensors of presence, incontinency, motion detection

Sport and fitness

• knitted textile electrodes / textrodes for heart rate and ECG monitoring

Conductive stretchable/rigid textile ribbons  (single-conductor;  multi-conductor)

• bus bars
• possible direct integration of electronic components or interposers on stretchable textile ribbon
• contacting by soldering, welding, crimping

Electrically conductive sewing thread CleverTex® are the subject matter of of the Czech utility model  owned by VUB Ústí nad Orlicí and UWB (University of West Bohemia) Pilsen under the  registration No. 2015-31136.
